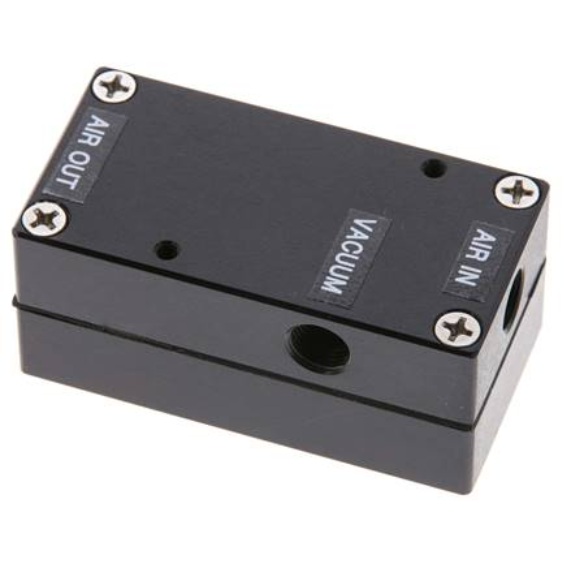

87% 56l/min Multi-stage Vacuum Generator
This multi-stage vacuum generator can generate a vacuum of up to 87%. Compressed air is guided through a venturi tube to create a vacuum. It has a vacuum rate of 56 l/min (3.36 m3/h, 1.96 scfm) at 0% vacuum and an air consumption of 32 l/min (1.92 m3/h, 1.12 scfm). The evacuation time (1 l to 70% vacuum) is 6.4 s. It's made from aluminum. The connection ports are G 1/8 inch. The operating pressure is from 1 to 7 bar (14.5 to 101.5 psi). Suitable for a temperature range of -20 °C to 100 °C (-4 °F to 212 °F).
- Regular price
- £137.81
Description
This vacuum generator (also known as vacuum ejector) is designed to generate a vacuum level that is required for pick and place applications of objects and works based on the Venturi effect. The compressed air pressure range is 1 to 7 bar (14.5 to 101.5 psi), but the optimal pressure is 4 bar (58 psi). At this pressure, the maximum vacuum level is 87% and the air consumption is 32 l/min (1.92 m3/h, 1.12 scfm). The vacuum rate decreases with increasing vacuum levels and is maximally 56 l/min (3.36 m3/h, 1.96 scfm). The evacuation time 1 l to 70% vacuum is 6.4 s. Please see our datasheet for more details about suction rates and evacuation times.
This vacuum ejector has three connection ports: a G 1/8 inch supply port, a G 1/8 inch vacuum port and a G 1/8 inch exhaust port. It's made from aluminum. Suitable for a temperature range of -20 °C to 100 °C (-4 °F to 212 °F).
Pros:
- Multi-stage ejectors create a much higher suction rate than singlestage with the same amount of compressed air
- Direct mounting onto the application is possible due to the compact design
Cons:
- Silencer not included (recommended)
VEL-M series
