Wago 770-103 3-Pole Female Connector With Strain Relief - 770-103 [2 Pieces]

Wago 770-103 3-Pole Female Connector With Strain Relief - 770-103 [2 Pieces]
Wago 770-103 3-Pole Female Connector With Strain Relief - 770-103 [2 Pieces]
Wago 770-103 3-Pole Female Connector With Strain Relief - 770-103 [2 Pieces]
Wago 770-103 3-Pole Female Connector With Strain Relief - 770-103 [2 Pieces]
Wago 770-103 3-Pole Female Connector With Strain Relief - 770-103 [2 Pieces]
Wago 770-103 3-Pole Female Connector With Strain Relief - 770-103 [2 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E3TVD-X2
Brand: Wago
Mfr. Part: 770-103

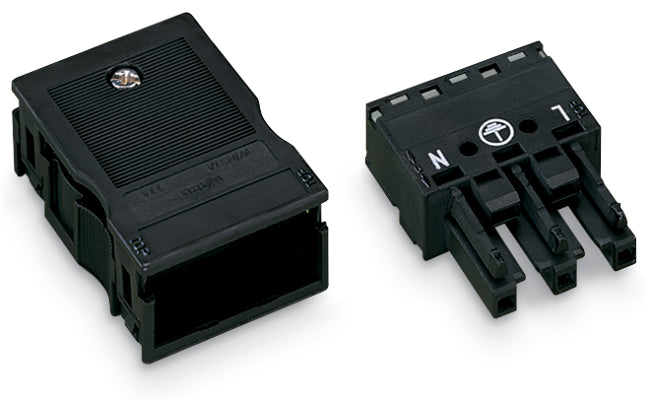

Professional 3-pole female connector with integrated strain relief housing, rated for 250V AC/DC at 25A. Compatible with wire cross-sections from 0.5mm² to 4.0mm² (20-12 AWG). Features a black polyamide housing with UL 94 V-0 fire rating and 10mm pitch. Operating temperature range: -5°C to +40°C.

Contains 2 pieces

View all
£9.73
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 50 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00 (excl VAT)
Expected delivery in 4 - 5 business days

Customers rate us: 4.84 / 5

544 reviews at TrustedShops

Description
Specifications
Downloads

Description

Professional 3-pole female connector with integrated strain relief housing, rated for 250V AC/DC at 25A. Compatible with wire cross-sections from 0.5mm² to 4.0mm² (20-12 AWG). Features a black polyamide housing with UL 94 V-0 fire rating and 10mm pitch. Operating temperature range: -5°C to +40°C.

Pros:

  • Wide wire compatibility range: 0.5-4.0mm² (20-12 AWG)
  • High current rating of 25A at 250V AC/DC
  • Integrated strain relief for secure cable retention
  • UL 94 V-0 rated fire-resistant housing

Downloads

Product datasheet (EN)
pdf
Download

Specifications
