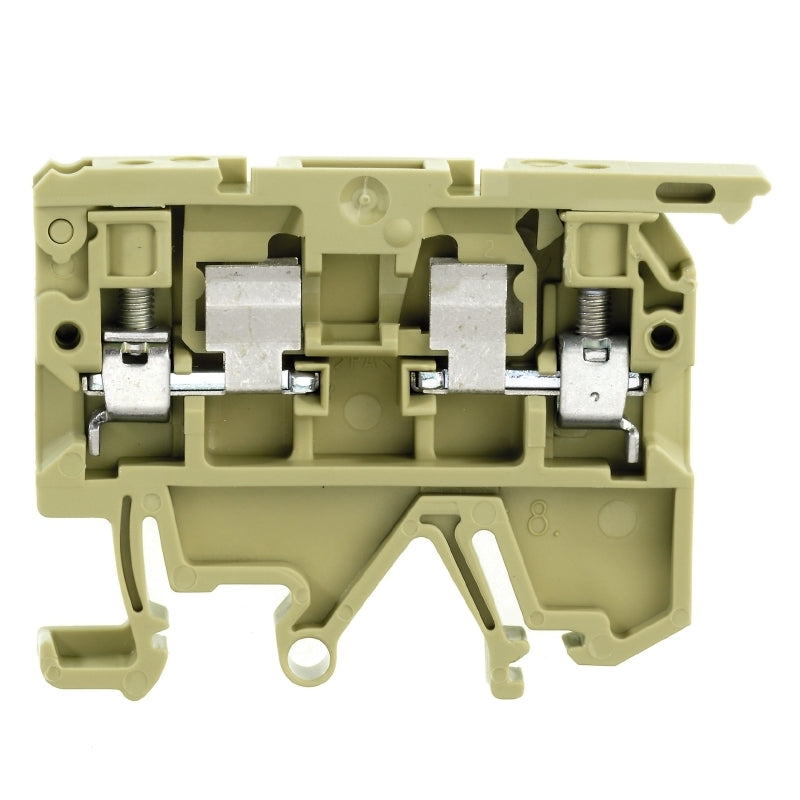

Weidmuller Fuse Clamp - 0222760000

Weidmuller Fuse Clamp - 0222760000
Weidmuller Fuse Clamp - 0222760000
Image may vary slightly
See specifications for accurate information.
Reference: E2Y2S
Brand: Weidmuller
Mfr. Part: 0222760000

The clamp's fuse holder is easy to reach and swivels, allowing you to quickly and safely replace a fuse if needed. Thanks to its screw connection, this SAK maintenance-free fuse ring clamp is quick and easy to install. After installation, the screws of this clamp do not need to be retightened. This fuse row clamp is suitable for 5 x 20 mm tube fuses and features light indication. Clearly visible light indication with low leakage current for error indication. Weidmuller fuse row clamps are available in different variants.

View all
£17.99
excl VAT
In stock +40 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 40 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 42 - 44 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

The clamp's fuse holder is easy to reach and swivels, allowing you to quickly and safely replace a fuse if needed. Thanks to its screw connection, this SAK maintenance-free fuse ring clamp is quick and easy to install. After installation, the screws of this clamp do not need to be retightened. This fuse row clamp is suitable for 5 x 20 mm tube fuses and features light indication. Clearly visible light indication with low leakage current for error indication. Weidmuller fuse row clamps are available in different variants.

Downloads

Specifications

Type of fuse insert
G-fuse 5x20 mm
Type of fuse holder
Swivelling
Type of indication element for defect indication
LED
Supply voltage for defect-indication (V)
24 V to 24 V
Voltage type for defect indication
DC
Connectable conductor cross section fine-strand without cable end sleeve (mm²)
0.5 mm² to 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²)
0.5 mm² to 4 mm²
Connectable conductor cross section solid-core (mm²)
0.5 mm² to 4 mm²
Rated current In (A)
6.3
Rated voltage (V)
24
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Other
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature (°C)
-50 °C to 100 °C
Inflammability class of insulation material according to with UL94
V2
Width (mm)
The product's width without packaging.
8.1
Height (mm)
The product's height without packaging.
58
Depth (mm)
The product's depth without packaging.
51.5
Closing plate required
Yes
Color
Multi-coloured
