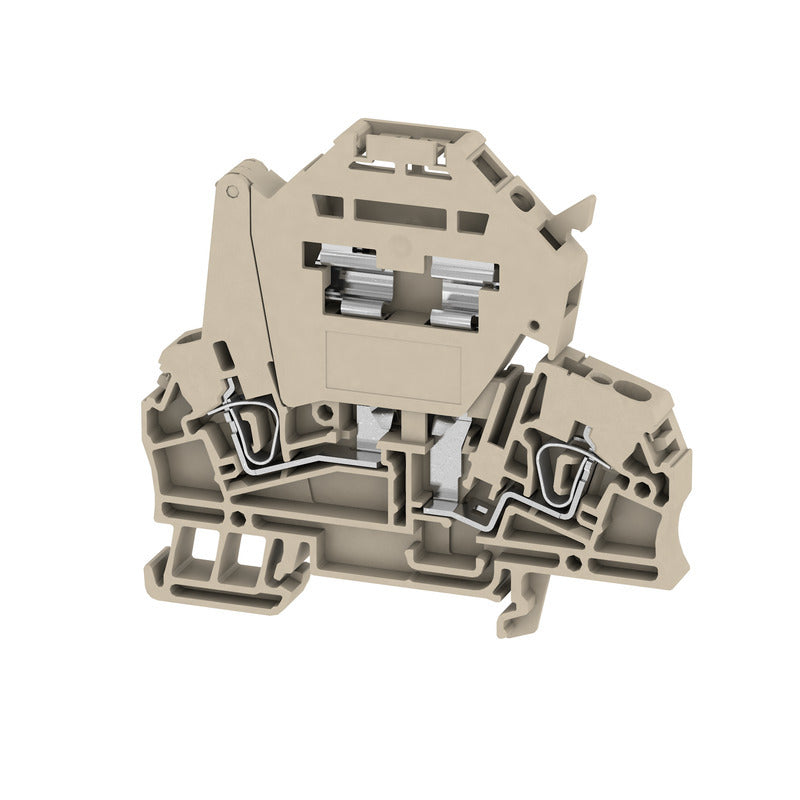

Weidmuller ZSI fuse clamp - 1616400000

Weidmuller ZSI fuse clamp - 1616400000
Weidmuller ZSI fuse clamp - 1616400000
Image may vary slightly
See specifications for accurate information.
Reference: E2VSH
Brand: Weidmuller
Mfr. Part: 1616400000

The clamp's fuse holder is easy to reach and swivels, allowing you to quickly and safely replace a fuse if needed. Thanks to its spring clamp connection, this Z maintenance-free fuse row clamp is quick and easy to install. This fuse row clamp is suitable for pipe fuses of 5 x 20 mm. Weidmuller Z fuse row clamps are available in different variants.

View all
£4.60
excl VAT
In stock +40 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 40 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 42 - 44 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

The clamp's fuse holder is easy to reach and swivels, allowing you to quickly and safely replace a fuse if needed. Thanks to its spring clamp connection, this Z maintenance-free fuse row clamp is quick and easy to install. This fuse row clamp is suitable for pipe fuses of 5 x 20 mm. Weidmuller Z fuse row clamps are available in different variants.

Downloads

Specifications

Type of fuse insert
G-fuse 5x20 mm
Type of fuse holder
Swivelling
Type of indication element for defect indication
None
Supply voltage for defect-indication (V)
500 V to 500 V
Voltage type for defect indication
AC/DC
Connectable conductor cross section fine-strand without cable end sleeve (mm²)
0.5 mm² to 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²)
0.5 mm² to 2.5 mm²
Connectable conductor cross section solid-core (mm²)
0.5 mm² to 4 mm²
Rated current In (A)
6.3
Rated voltage (V)
250
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Other
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature (°C)
-50 °C to 120 °C
Inflammability class of insulation material according to with UL94
V0
Width (mm)
The product's width without packaging.
7.9
Height (mm)
The product's height without packaging.
79.5
Depth (mm)
The product's depth without packaging.
73
Closing plate required
Yes
Color
Beige
