Reference: Y-PIN-MCQV-63
Brand: Mindman

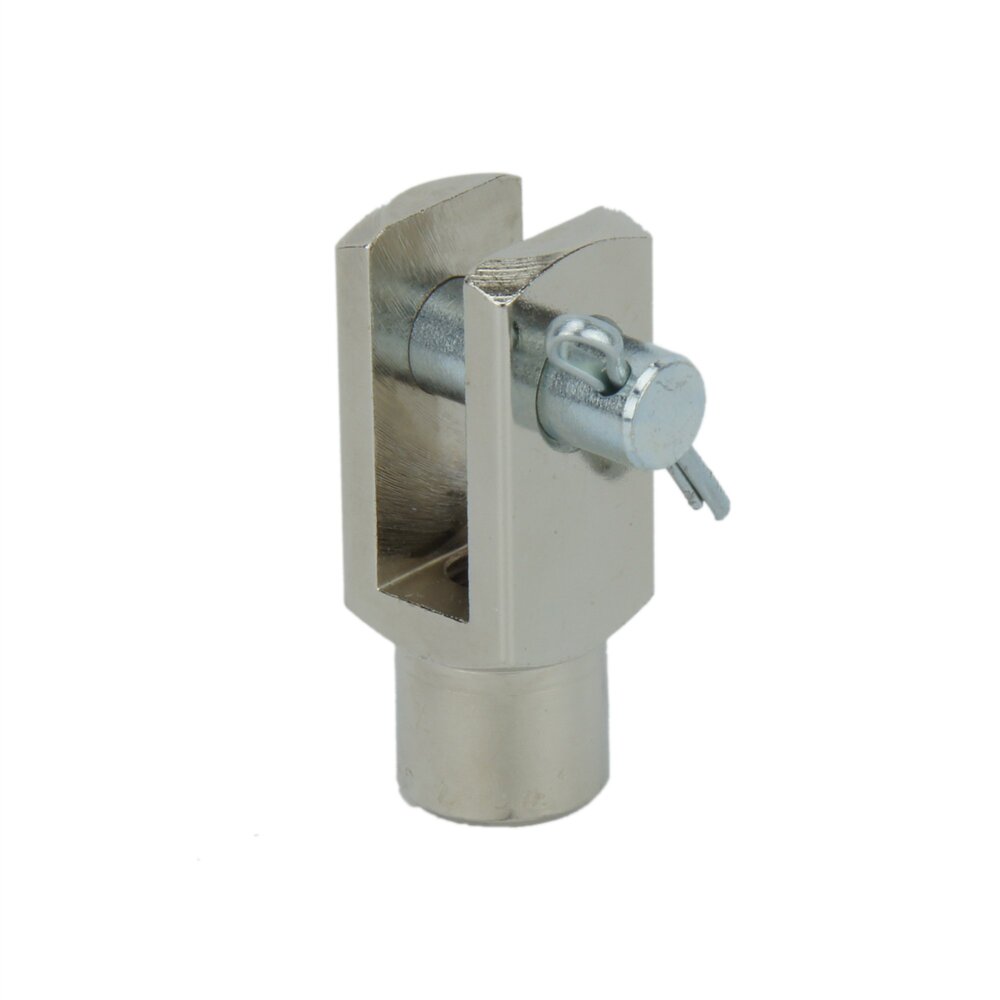

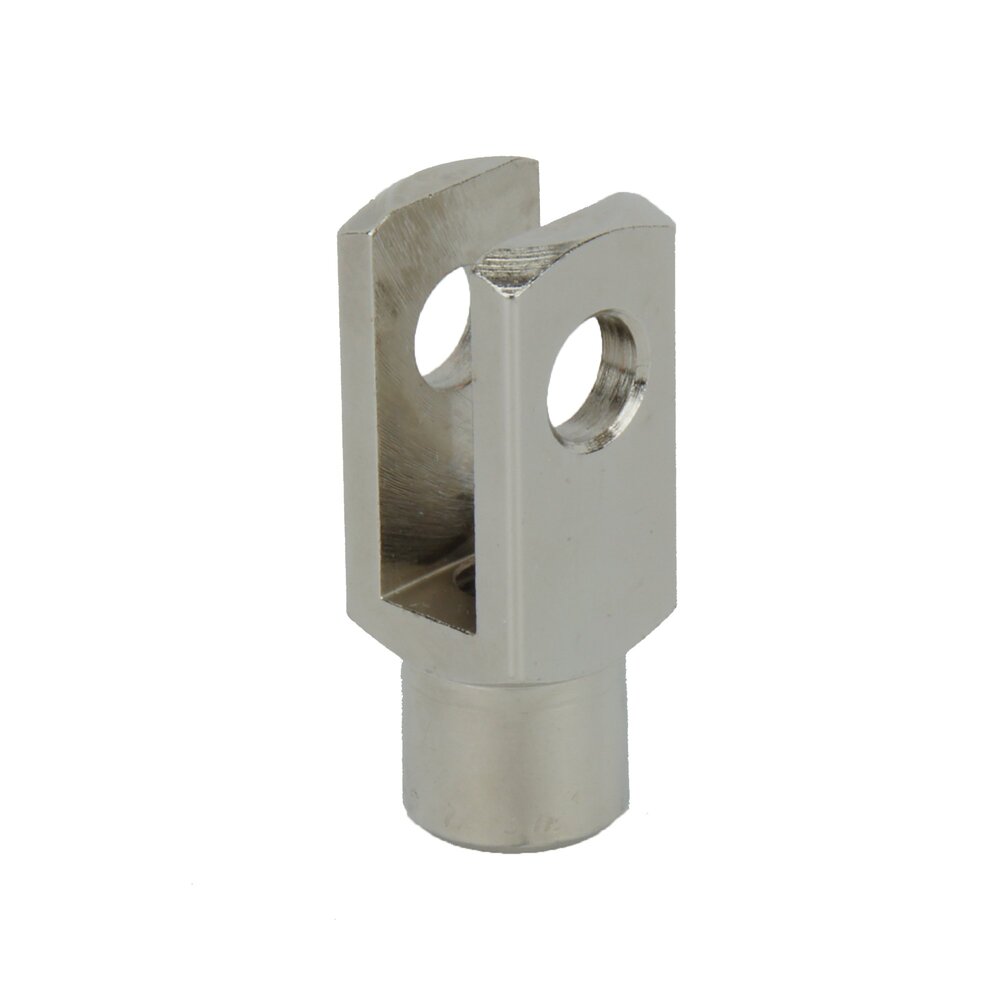

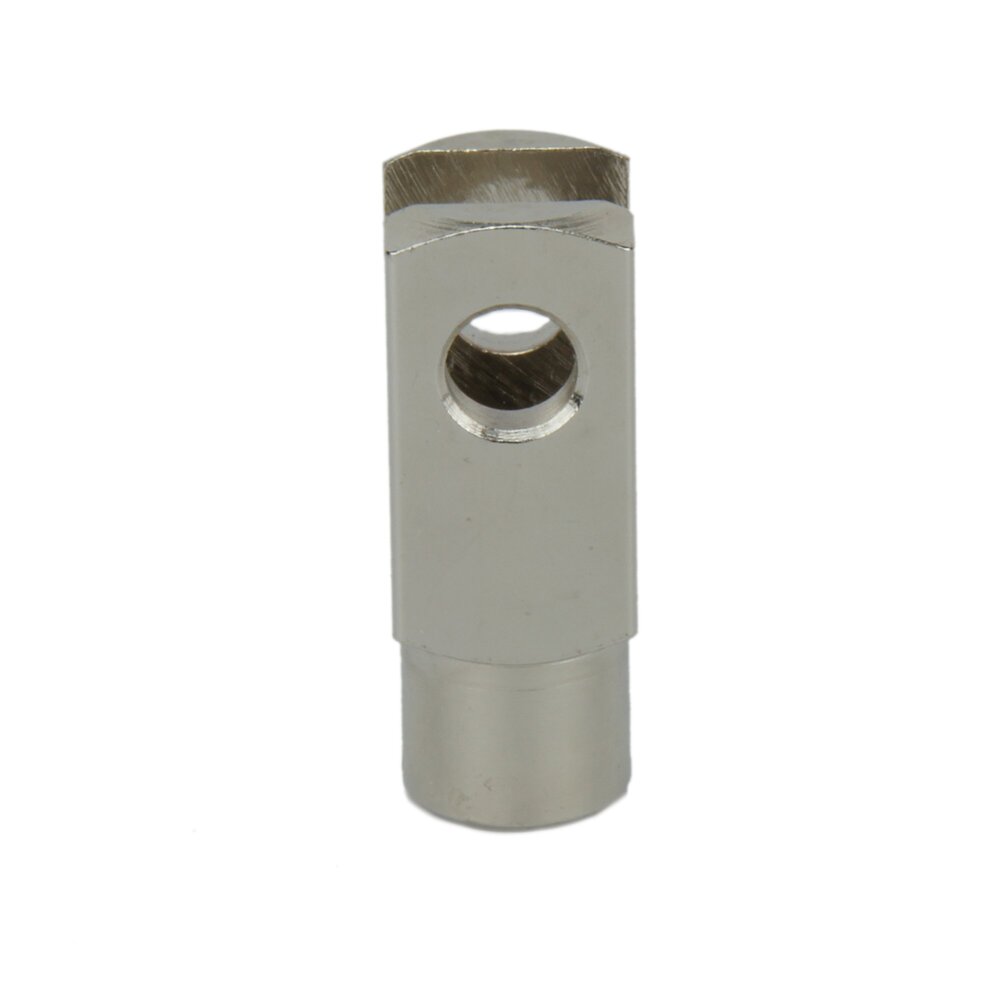

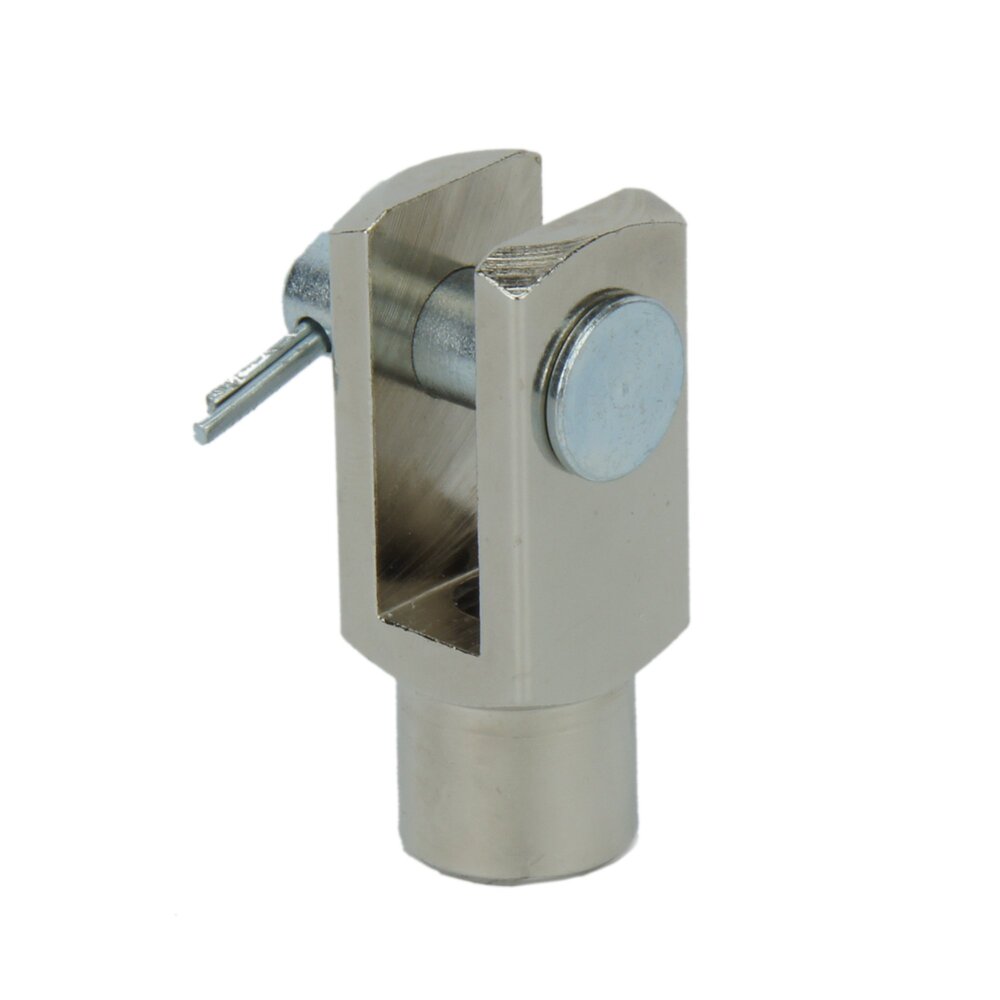

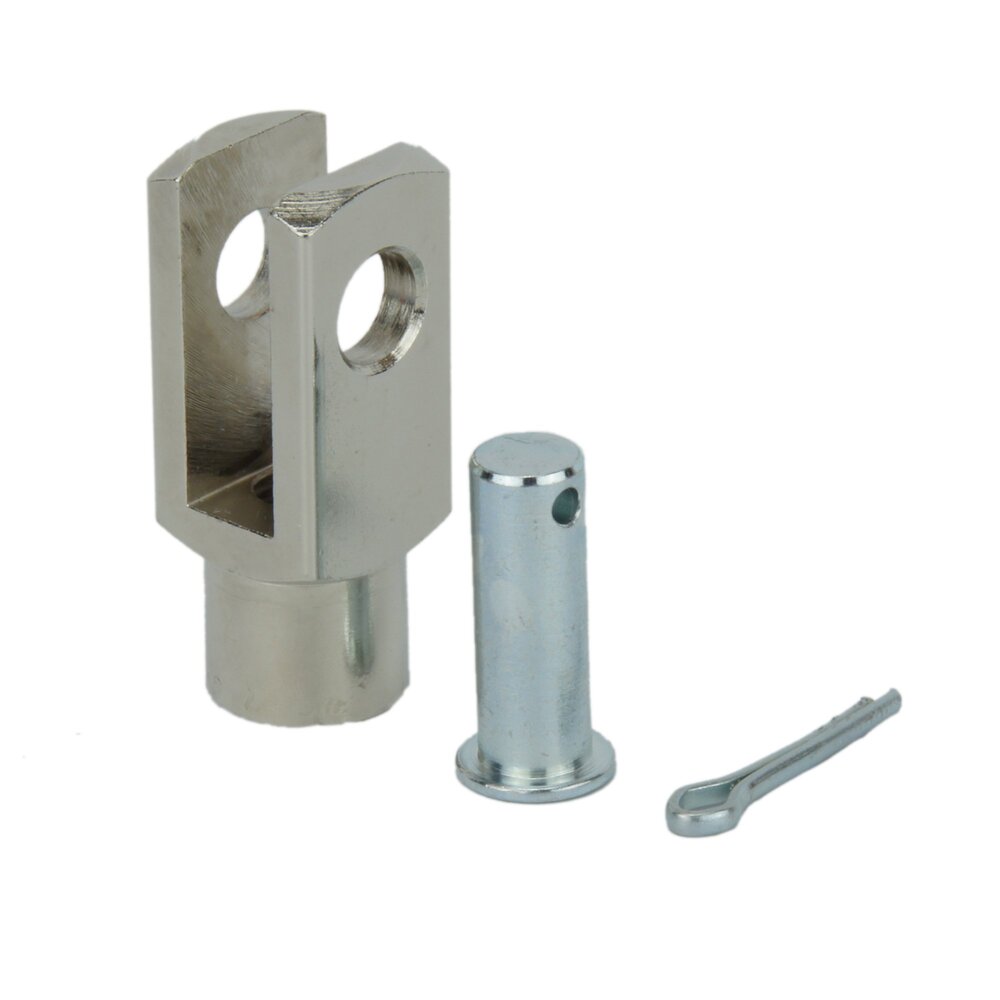

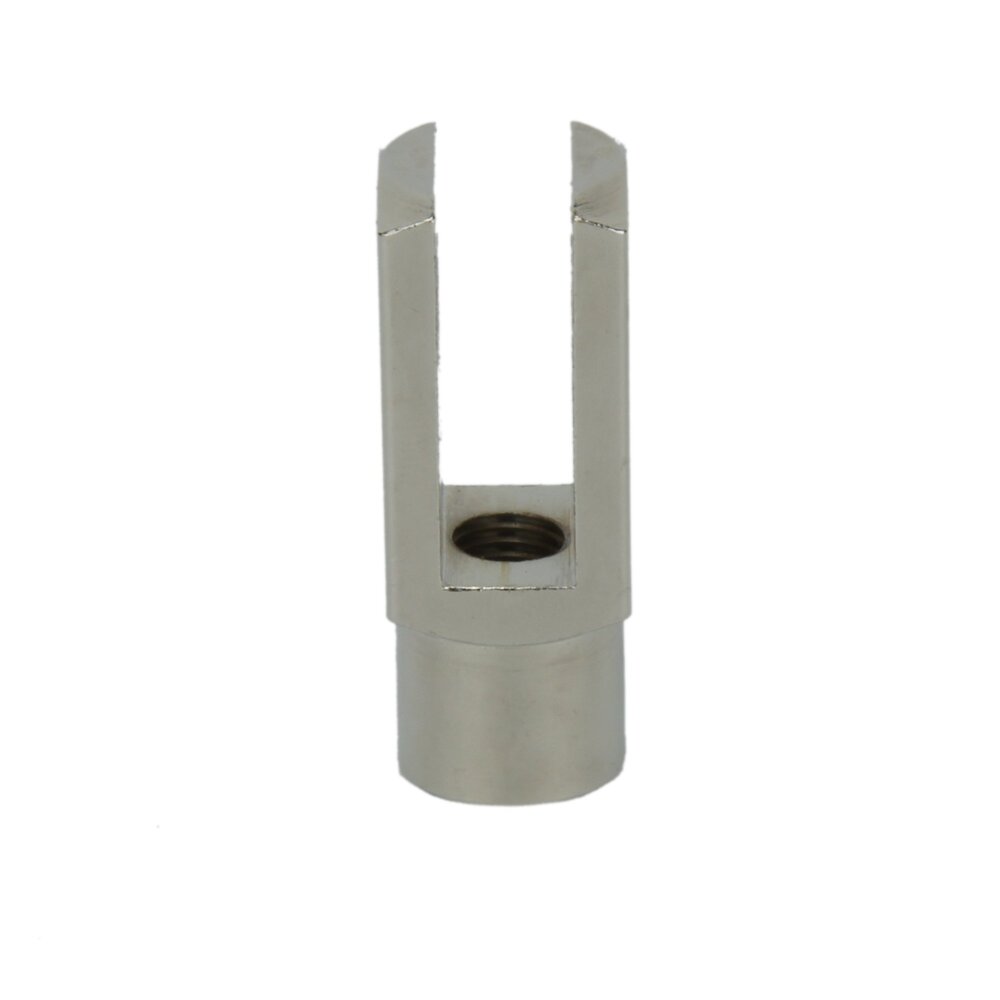

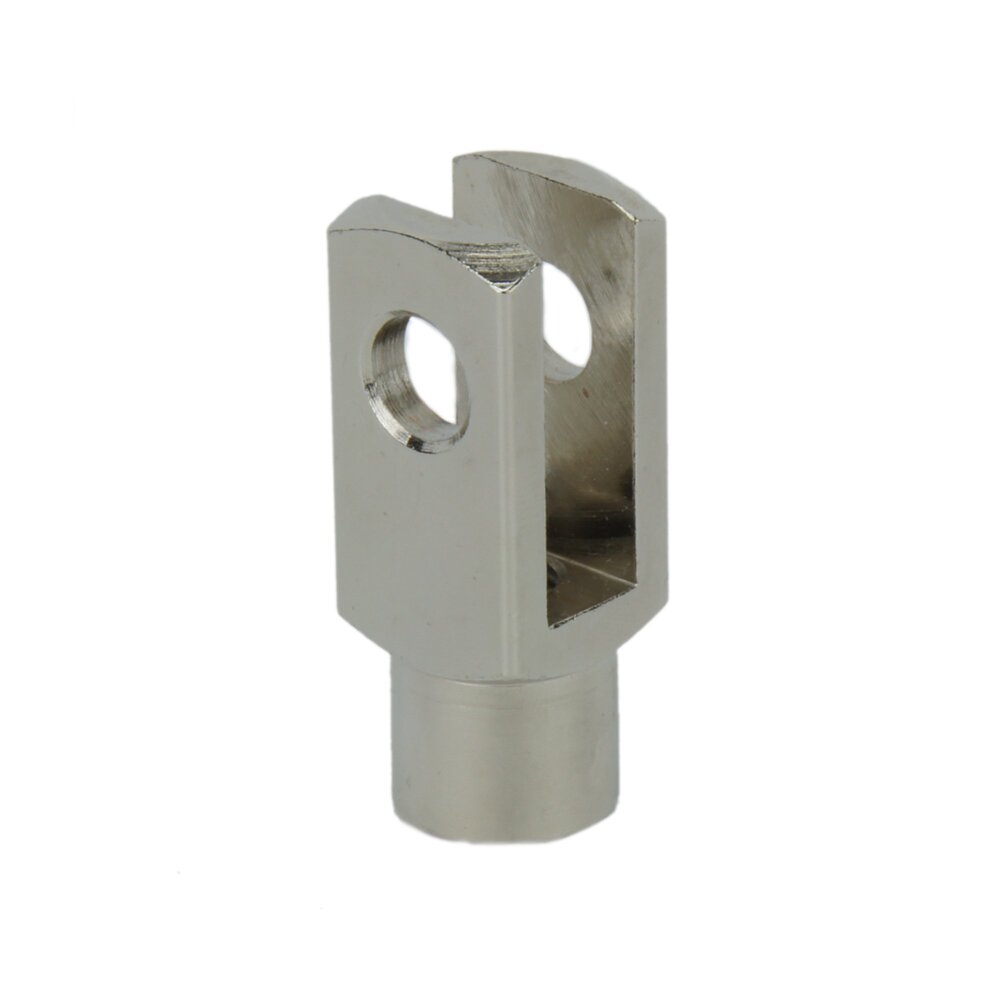

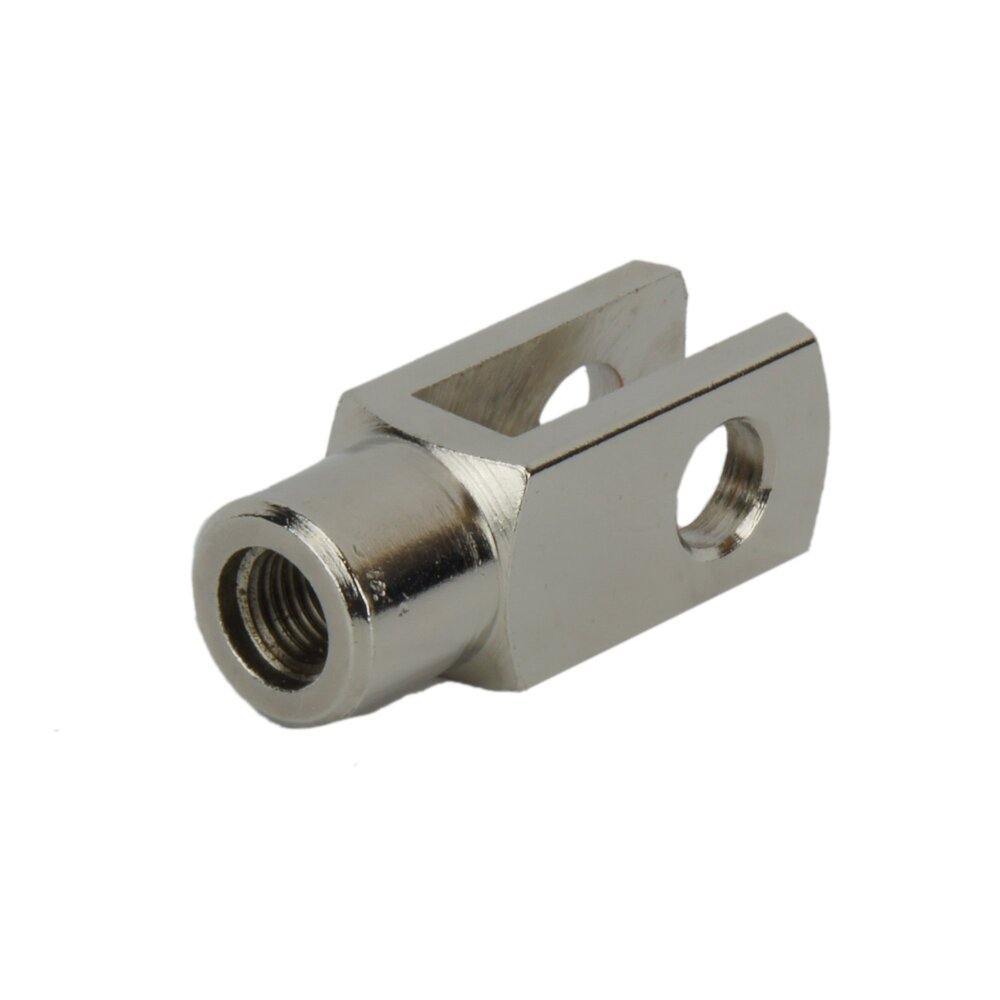

This steel clevis with M16x1.5 female thread is used to mount pneumatic cylinders. Mount at the end of the piston rod with matching male thread. Design according to ISO 8140. I.a. compatible with the following cylinders: 63 mm (ISO 15552), 80, 100 mm (ISO 21287). Including 16 mm pin and split pin. It has two holes lined up in the fork. Typically connected to a spherical eye between the forks with a pin. It is meant for linear or arcing paths and can be used for either push or pull applications.

View all
Regular price
£17.87
excl VAT

In stock +26 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 26 days. Up to 25 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 28 - 30 business days

Description
Specifications
Downloads
Related products

This steel clevis with M16x1.5 female thread is used to mount pneumatic cylinders. Mount at the end of the piston rod with matching male thread. Design according to ISO 8140. I.a. compatible with the following cylinders: 63 mm (ISO 15552), 80, 100 mm (ISO 21287). Including 16 mm pin and split pin. It has two holes lined up in the fork. Typically connected to a spherical eye between the forks with a pin. It is meant for linear or arcing paths and can be used for either push or pull applications.

Pros:

  • Forces are directed through the centerline of the pneumatic cylinder, so no additional stresses are created in the cylinder
  • This model is dimensioned according to ISO 8140 which allows for worldwide interchangeability between manufacturers
  • Suitable for all male threaded cylinder rod-ends with M16x1.5 thread and also compatible with the following cylinders: 63 mm (ISO 15552), 80, 100 mm (ISO 21287)
  • Delivered including Ø16 mm pin

Cons:

  • A clevis rod-end allows angular rotation in one direction of rotation. Other alignment errors, such as a parallel misalignment or an angular misalignment in other directions, are not permitted. For these situations a floating joint connection can be considered

Rod-End Clevis series

The Mindman rod-end clevis with pin mounting accessory, also referred to as rod-end forks, is designed for pneumatic cylinders adhering to ISO 15552, 21287, or 6432. The series has sizes that adhere to the entire ISO 8140 range, but also additional sizes outside of this range. It has female threads ranging from M4x0.7 to M36x2.0 to meet our wide range of sizes for pneumatic cylinders. The two holes in each fork are lined up and have a diameter range of 4-35 mm and it is easily connected to other accessories or the load by utilizing a pin. They can be used for loads traveling in a linear or arcing path as well as for pushing or pulling applications.
