Reference: 124958
Brand: Burkert

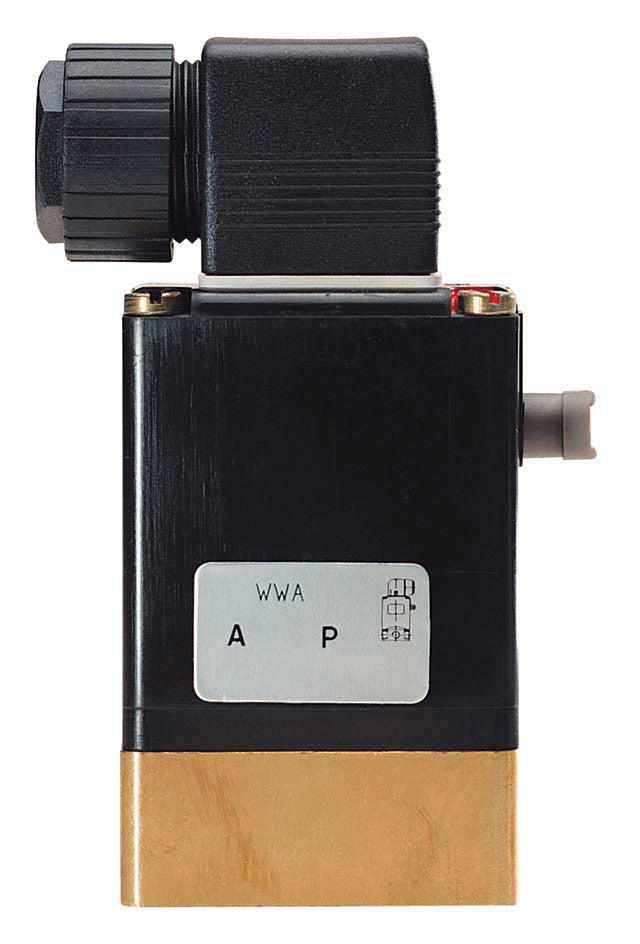

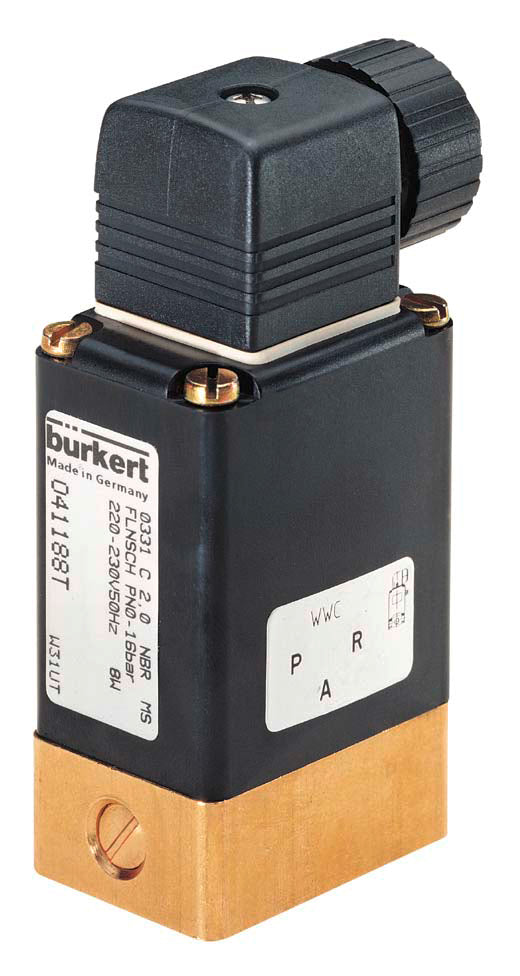

Burkert 3/2 way solenoid valve (type 0331) with 32x46 mm SFB flange and a 24 V DC coil. The valve connects a common port to one of the two other ports depending on whether the coil is energized. The pressure can be applied to all ports. The valve is direct operating, so no differential pressure required. Suitable for slightly contaminated and aggressive media (media separation). Suitable for max media temperatures of 90 °C (194 °F) and a pressure range of 0 to 8 bar (116 psi). Housing of brass with FKM sealing and a 3 mm orifice. The Kv-value is 0.12 m3/h (2.0 l/min at dp = 1 bar water). Manual override feature.
Note: DIN connector not included.

View all
Note: product cannot be returned
Regular price
£152.44
excl VAT

In stock +10 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 10 days. Up to 4 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 12 - 14 business days

Description
Specifications
Downloads
Related products

This is a Burkert direct operating 3/2 way solenoid valve with 32x46 mm SFB flange and a 24 V DC coil. The valve has a brass housing with FKM sealing and an orifice size of 3 mm. SFB is a Burkert specific flange design that enables compact mounting of multiple valves on a manifold. The circuit function of the solenoid valve is universal. The 3-way valve connects a common port to one of the two other ports, depending on whether the coil is energized. In this version, the pressure can be applied to all ports. As it is direct operating, no pressure differential over the valve is needed to open the valve. Suitable for a pressure range of 0 to 8 bar (116 psi) and a maximum temperature of 90 °C (194 °F). The valve has a Kv-value of 0.12 m3/h, this translates to a flow rate of 2 l/min at a differential pressure of 1 bar (for water). In imperial units: Cv = 0.14, which means 0.14 GPM @ 1 psi pressure drop. For many applications it is enough to select a valve based on the thread size and orifice diameter. For more accurate sizing, use the Kv-value with our easy to use valve sizing calculator. This model is media separated. This means that the working parts such as the spring are separated from the media by a flexible membrane, which makes it possible to use of slightly contaminated and aggressive media. The brass housing is durable, suitable for neutral fluids and resistant to many chemicals. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. The manual override feature can be used to commission the system. The valve has an IP65 rating if properly connected.

Pros:

  • Aggressive media are possible thanks to the media separated design
  • The manual override is ideal for commissioning and in case of power outage
  • Good protection against the environment thanks to the IP65 rating
  • Solenoid valves open and close very fast compared to many other valve types
  • SFB flange design enables compact mounting of multiple valves on a manifold

Cons:

  • Solenoid valves are very sensitive to dirt and can only be used with clean liquids and gases
  • The coil may get hot when energized. A well ventilated environment is recommended
  • DIN connector not included

Series:

The Bürkert 0331 valve is a direct-acting, media separated pivoted armature valve. Orifices up to DN 4 and pressure ranges from 0 to 16 bar. The distinct feature of this valve from the 0330 model is the absence of threads, replaced by a Bürkert SFB (Specific Flange design Bürkert) flange connection at the bottom. This flange can be used to mount the valve onto a manifold or to mount onto a bigger valve (for example the Type 5282) and act as a pilot valve. The 0331 valve comes in 2/2 and 3/2-way versions. The 3/2-way versions are available as normally open, normally closed, distributor or mixing valve. The medium separated design makes this valve suitable for aggressive or slightly contaminated media. The standard brass housing satisfies all European drinking water requirements. The 0331 is equipped with manual override for commissioning and testing. ATEX explosion approved versions are also available.

Please note: this product is made to order and can unfortunately not be returned.
