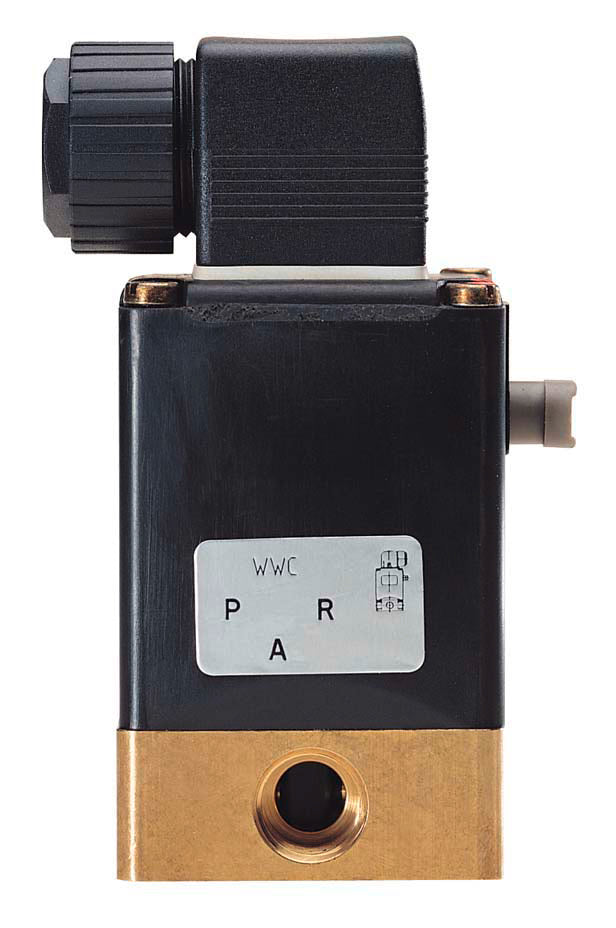

Solenoid Valve 3/2 G1/4'' Brass 24VUC 0330 306029
Notice: This product is discontinued and replaced by 353634

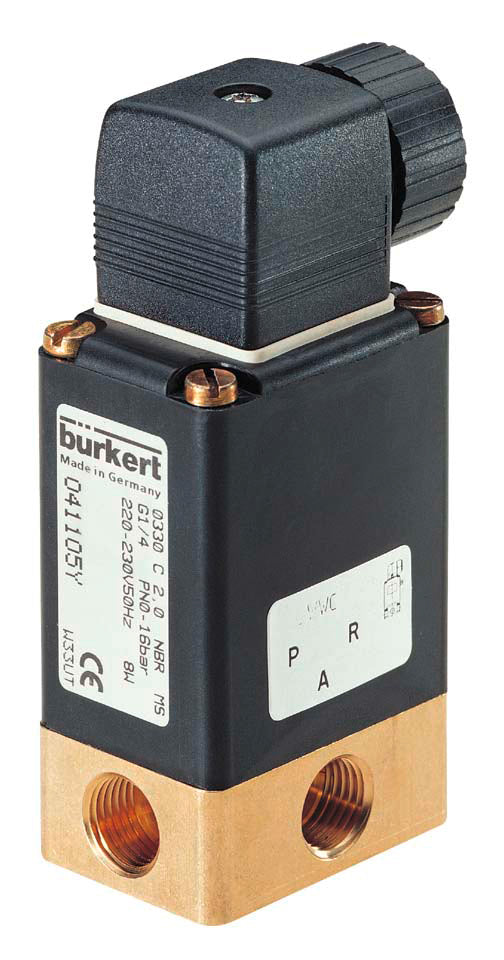

Bürkert 3/2-way solenoid valve (type 0330) with G1/4'' threads and a 24V UC coil. Universal function (flow in both directions) and direct operating, so no differential pressure required. Suitable for slightly contaminated and aggressive media (media separation). Housing of brass with NBR sealing and a 2 mm orifice.
Notice: This product is discontinued and replaced by 353634
Description
Bürkert direct operating 3/2-way solenoid valve with G1/4'' inner threads and 24V UC (alternating or direct current) coil. The valve has a brass housing with NBR sealing and an orifice size of 2 mm. The circuit function of the solenoid valve is universal, which means the flow is bi-directional. This model is media separated and can therefore be used for slightly contaminated and aggressive media. The brass housing is durable, suitable for neutral fluids and resistant to many chemicals. The NBR (nitrile rubber) sealing is suited for water, air, alcohol and is fairly resistant to oil and petrol. NBR is unsatisfactory with oxidising fluids. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. Energy efficient design for a long product lifecycle.
Important advantages
- Can be used with slightly contaminated or aggressive media thanks to the media separated design
- Energy-saving design which ensures a low heating of the medium and, in addition, a long service life
- Bürkert design: proven reliability & durability
0330 series
The Bürkert solenoid valve type 0330 is a direct-operated solenoid valve, meaning no pressure difference is needed to open the valve. This design is media separated, which allows for complete isolation of your fluid from the valve's working parts. This makes it a good solution for aggressive or slightly contaminated media. The valves can be delivered with DN 2 up to DN 5 or with a flange. The pressure range depends on the voltage, but has a maximum of 16 bar. The valve has a maintenance free pivot armature design instead of the common linear translating plunger. The valve is available in IP65 or IP67 protection. The valve has few moving parts, allowing for a long service life due to minimal wear on valve components. The 2/2-way and the 3/2-way versions are specifically designed for applications such as mixing, diversion and universal direction of media. The valves are available with different housing materials, such as brass, stainless steel, PP or PVDF in combination with different sealing materials. Finally, there are options for position feedback, bi-stable, vacuum variants, as well as ATEX explosion approved versions.
Please note: this product is made to order and can therefore unfortunately not be returned.
