Solenoid Valve 3/2 1/4'' NPT Stainless Steel 24VUC ATEX 0330 306220

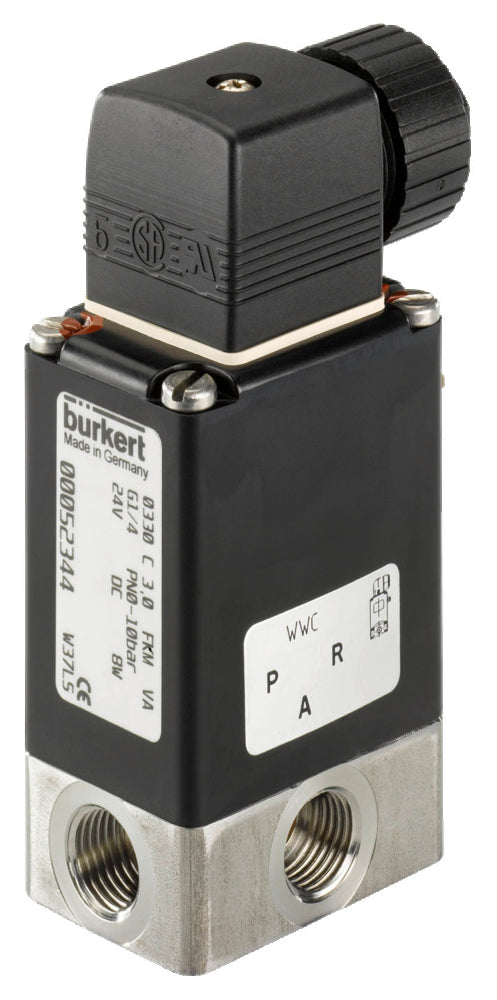

Bürkert direct operating 3/2-way solenoid valve with 1/4'' NPT inner threads and 24V UC (alternating or direct current) coil. The valve has a stainless steel housing with FFKM sealing and an orifice size of 2 mm. The circuit function of the solenoid valve is mixing, which means that the valve connects one of the 2 inlet ports to the outlet port, depending on the valve's state. This model is media separated and can therefore be used for slightly contaminated and aggressive media. The stainless steel housing is very durable, strong and resistant to a wide range of chemicals with the exception of chloride solutions. The FFKM (perfluorinated rubber) sealing has excellent chemical properties, better than FKM and similar to PTFE. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. Energy efficient design for a long product lifecycle. The valve is certified for ATEX Ex-Zone 1, so it can be used in potentially explosive environments requiring this certification.

Important advantages

• ATEX certified up to Ex-Zone 1
• Can be used with slightly contaminated or aggressive media thanks to the media separated design
• Energy-saving design which ensures a low heating of the medium and, in addition, a long service life
• Bürkert design: proven reliability & durability

0330 series

The Bürkert solenoid valve type 0330 is a direct-operated solenoid valve, meaning no pressure difference is needed to open the valve. This design is media separated, which allows for complete isolation of your fluid from the valve's working parts. This makes it a good solution for aggressive or slightly contaminated media. The valves can be delivered with DN 2 up to DN 5 or with a flange. The pressure range depends on the voltage, but has a maximum of 16 bar. The valve has a maintenance free pivot armature design instead of the common linear translating plunger. The valve is available in IP65 or IP67 protection. The valve has few moving parts, allowing for a long service life due to minimal wear on valve components. The 2/2-way and the 3/2-way versions are specifically designed for applications such as mixing, diversion and universal direction of media. The valves are available with different housing materials, such as brass, stainless steel, PP or PVDF in combination with different sealing materials. Finally, there are options for position feedback, bi-stable, vacuum variants, as well as ATEX explosion approved versions.

Please note: this product is made to order and can therefore unfortunately not be returned.
