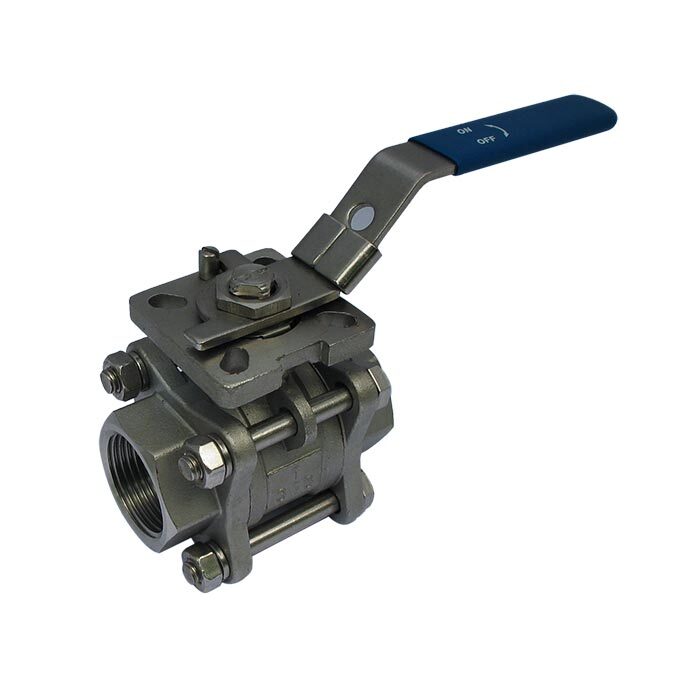

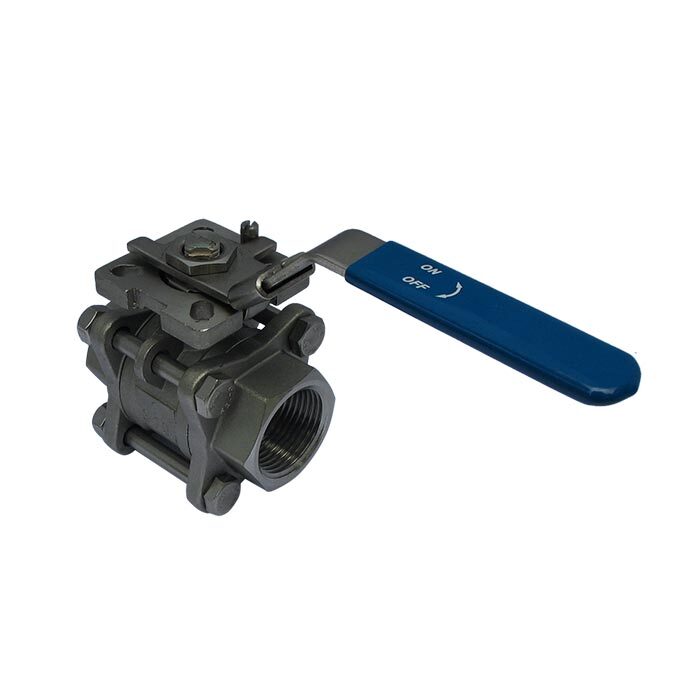

665 - G4'' 2-Way Ball Valve 3-Piece Stainless Steel Full Bore ISO-Top
Notice: This product is discontinued and replaced by BL2SA3-400
2-Way ball valve (3-piece) with G4 inch threads (F/F) and ISO-Top (F07,F10) and lever for open/close control. 100mm nominal diameter and max pressure 65 bar. Temperature range from -40 to 220°C. Stainless steel housing with stainless steel ball and PTFE seals.
Notice: This product is discontinued and replaced by BL2SA3-400
Description
2-Way ball valve of stainless steel with 3-piece construction from JP Fluid Control with G4 inch pipe threads (BSPP) and a full bore (100 mm). The valve features an ISO-Top flange and has furthermore a coated lever for manual control. The ball valves in the 665-series of JP Fluid Control are characterized by long life.
Technical Specifications
Parameter | Value |
---|---|
Series | 665 |
Function | 2-way |
Ports | G4 BSP (F/F) |
Housing | Stainless steel (AISI 316) |
Ball | RVS (AISI 316) |
Seals | PTFE (teflon) |
Nominal Diameter | 100 mm (full bore) |
Kv value | 1230 m3/h |
Operation | Lever + ISO 5211 flange (for actuator mounting) |
ISO 5211 flange | F07 and F10 |
Max pressure | 65 bar |
Temperature | -40°C .. 220°C |
Installation
The valve has female thread on both sides (4 inch). This is BSPP (British Standard Pipe Parallel). With our range of
Maximum pressure versus temperature - 665-series.
