Bonded Fitting DN 25 On/Off NC PVC Electric Diaphragm Valve - 3323 - 350810

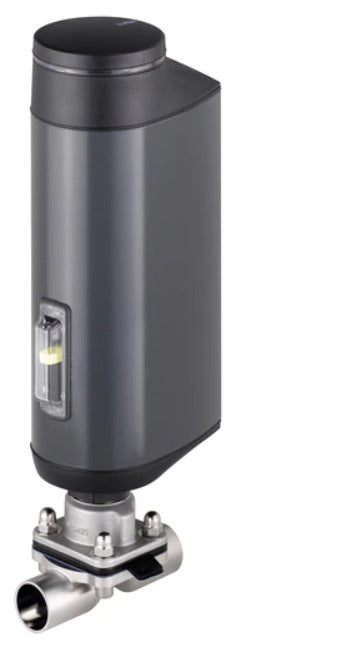

Bürkert diaphragm valve (type 3323) with bonded fitting DN 25 ports. Designed for on/off applications. For media temperatures ranging from -10 to 60°C (14 to 140°F) at a pressure of 0 to 10 bar (0 to 140 psi). Housing of PVC with a PTFE/EPDM diaphragm and a Kv-value of 10 m3/h (Cv-value of 11.6 gpm). Electrically actuated with a 24V DC actuator. The actuator uses a büs communications protocol.
- Regular price
- £2,416.06
Description
This Bürkert 2/2-way (type 3323) electric diaphragm valve is designed for on/off applications. This valve has bonded fitting DN 25 ports. The valve has a PVC housing with a PTFE/EPDM diaphragm. The valve is delivered as normally closed (NC), which means the valve opens when voltage is applied. The actuator has an energy storage unit. The unit can be used to set a safe position for the valve to return to in case of power loss. For media temperatures ranging from -10 to 60°C (14 to 140°F) at a pressure of 0 to 10 bar (0 to 140 psi). The valve has a Kv-value of 10 m3/h (Cv-value of 11.6 gpm). Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. The valve takes 2.7 s to go from fully open to fully closed position. The actuator uses a büs communications protocol.
Pros:
- Adjustable driving force protects the diaphragm and prolongs the service life
- Diagnostic functions possible thanks to the fieldbus connection
- High IP protection IP65/67 ensures adequate splash protection
Series
The Bürkert type 3323, externally controlled diaphragm valves, are composed of an electrically controlled linear actuator, a diaphragm, and a two-way valve housing. The recirculating ball screw allows the electric actuator to work in clean or harsh environments. The valve housings are designed to allow high flow rates and versatile applications without any dead spaces. The position is displayed by a LED light ring that covers 360°. The actuator has a feature to adjust the drive force and protect the diaphragm. The actuator is splash-proof with high IP protection of IP65/IP67. electric actuators move the diaphragm valves with ball screws at high speeds of up to 6 mm/s. Some of the type 3323 valves are suitable for applications with food, oxygen and have explosion proof ATEX, IECEx and UL certificates.
