Image may vary slightly
See specifications for accurate information.
Reference: E2JHA
Brand: DEHN
Mfr. Part: 920345

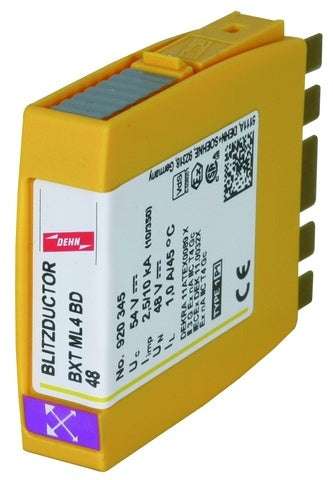

Dehn BLITZDUCTOR XT surge protector v data/m&r, rated voltage DC 48V, DIN/G-rail, rated voltage AC 48V, connection 1 terminal, max. Continuous voltage AC 38.1V, max. Continuous voltage DC 48V, rated discharge surge current (8/20) 20kA, safety level core/earth 550V.

View all
£184.15
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 6 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

Dehn BLITZDUCTOR XT surge protector v data/m&r, rated voltage DC 48V, DIN/G-rail, rated voltage AC 48V, connection 1 terminal, max. Continuous voltage AC 38.1V, max. Continuous voltage DC 48V, rated discharge surge current (8/20) 20kA, safety level core/earth 550V.

Downloads

Product datasheet (EN)
pdf
Download
Compliance and Certification (EN)
pdf
Download

Specifications

Nominal voltage AC (V)
48 V to 48 V
Nominal voltage DC (V)
48 V to 48 V
Max. continuous voltage AC (V)
38.1
Max. continuous voltage DC (V)
48
Nominal discharge surge current (8/20) (kA)
20
Voltage protection level core/core (V)
80
Voltage protection level core/earth (V)
550
Mounting method
DIN rail (top hat rail)/G-rail TH35/G32
