Belimo Differential Pressure Sensor 0..2.5bar 4-20mA for Water 22WDP-132

Belimo Differential Pressure Sensor 0..2.5bar 4-20mA for Water 22WDP-132
Belimo Differential Pressure Sensor 0..2.5bar 4-20mA for Water 22WDP-132
Reference: M27SM
Brand: Belimo
Mfr. Part: 22WDP-132

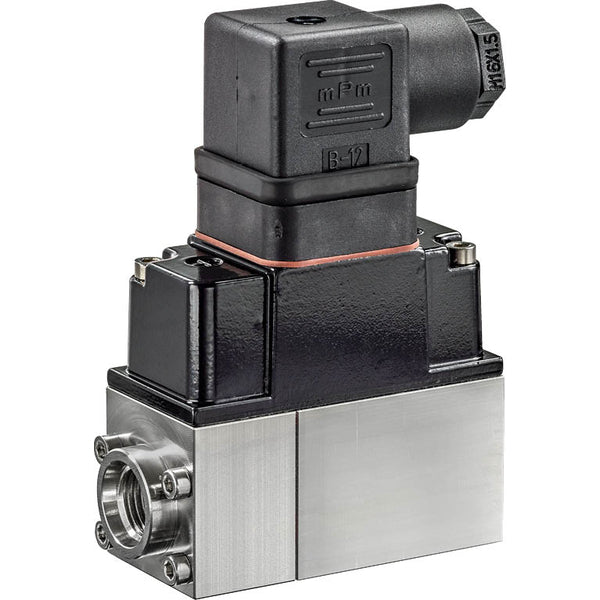

This differential pressure sensor is designed to measure differential pressure in the range of 0 to 2.5 bar. The power supply voltage is 24 V AC/DC. The output signal is 4-20 mA. The differential pressure sensor has a protection rating of IP65. This pressure sensor is an active sensor specifically designed for use in HVAC systems. The pressure sensor is compatible with water and water-glycol mixtures. The housing of this differential pressure sensor is constructed from stainless steel, providing durability and longevity.

View all
Note: product cannot be returned
£487.29
excl VAT
In stock +14 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 14 days. Up to 12 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This differential pressure sensor is designed to measure differential pressure in the range of 0 to 2.5 bar. The power supply voltage is 24 V AC/DC. The output signal is 4-20 mA. The differential pressure sensor has a protection rating of IP65. This pressure sensor is an active sensor specifically designed for use in HVAC systems. The pressure sensor is compatible with water and water-glycol mixtures. The housing of this differential pressure sensor is constructed from stainless steel, providing durability and longevity.

Pros:

  • Utilizes a highly stable resistance sensor element on a ceramic substrate
  • Housed in a robust stainless steel casing for long-lasting and reliable performance

Downloads

Technical data sheet – 22WDP-13..
pdf
Download
Installation instructions - 22WDP-..
pdf
Download
Installation instructions - 22WDP-1.. flex conduit
pdf
Download
EU Declaration of Conformity - 22WDP-132
pdf
Download
Brochure – Belimo sensors and meters
pdf
Download
Brochure – Energy efficiency and comfort in buildings
pdf
Download
Flyer – Efficient planning with BIM
pdf
Download
CAD stp-3d-22wdp-132.zip
zip
Download

Specifications

Measuring range pressure (bar)
0 bar to 2.5 bar
Supply voltage (V)
24
Output signal
4-20 mA
Max. overpressure (kPa)
6
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-10
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
80
With display
No
Thread size
1/4 inch
Connection
Outer thread cylindrical BSPP-G
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP65
Suitable for air
Yes
Suitable for water
Yes
Suitable for gases
No
Suitable for ammonia
No
Suitable for oil
No
Suitable for glycol
No
Suitable for steam
No
Readable
No
Explosion-proof
No
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Stainless steel
Height (mm)
The product's height without packaging.
5
Width (mm)
The product's width without packaging.
170
Depth (mm)
The product's depth without packaging.
120
Measuring range (Pa)
Range in which the variable can be measured. Outside of this range the measuring instrument is inaccurate and might break.
0 Pa to 250000 Pa
