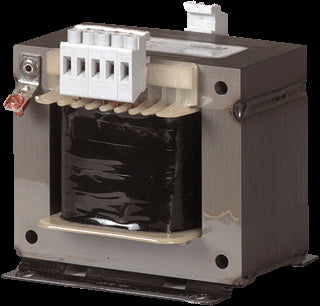

EATON INDUSTRIES STN 1-Phase Transformer 230/400V | 204992

EATON INDUSTRIES STN 1-Phase Transformer 230/400V | 204992
EATON INDUSTRIES STN 1-Phase Transformer 230/400V | 204992
Image may vary slightly
See specifications for accurate information.
Reference: E24C9
Brand: EATON INDUSTRIES

Eaton Industries STN400/230Vac single phase control transformer, (wxdxh), 151x150x145mm secondary voltage 1 230V primary voltage 1 400V (measuring), apparent power 1000VA protection degree (IP00), conductor material copper insulation material class compliant IE B, relative short circuit voltage Uk 2.2%.

View all
Note: product cannot be returned
£251.37
excl VAT
In stock +3 days On request On request
For a higher quantity than 0 of product E24C9, the lead time of the order will increase by 3 days. The item is not online available in your chosen quantity, there are 12 items available for online order. For higher quantities please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Customers rate us: 4.8 / 5

435 reviews at Google

Description
Specifications
Downloads
Related products

Description

Eaton Industries STN400/230Vac single phase control transformer, (wxdxh), 151x150x145mm secondary voltage 1 230V primary voltage 1 400V (measuring), apparent power 1000VA protection degree (IP00), conductor material copper insulation material class compliant IE B, relative short circuit voltage Uk 2.2%.

Downloads

pdf
Download

Specifications

Primary voltage 1 (V)
400 V to 400 V
Secondary voltage 1 (V)
230 V to 230 V
Rated apparent power (VA)
1000
Short-circuit-proof
No
Type of insulation material according to IEC 85
B
Relative short circuit voltage (%)
2.2
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP00
Built as energy saving transformer
No
Built as isolating transformer
No
Built as safety transformer
No
Conductor material
Copper
Ring core
No
Modular version
No
Suitable for mounting on PCB
No
