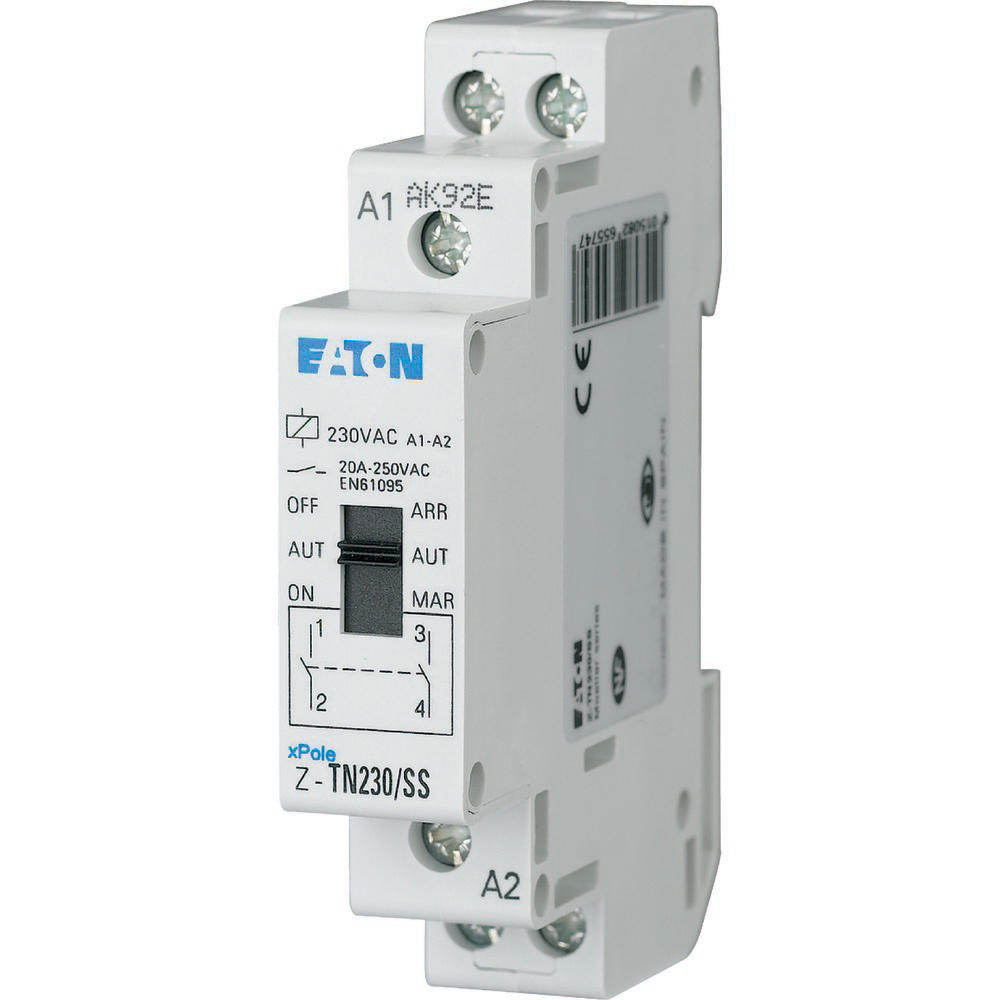

Eaton Pre-Selection Relay 230V 50Hz 20A 2NO 1HP - 265574
Notice: This product will be discontinued in the future
The Eaton Industries Z TN is an installation relay designed for top-hat rail mounting. Its mechanical function can be pre-selected for duration ON/AUTO/OFF and operates with a control voltage of 230V at a frequency of 50Hz. It features two normally open (N/O) make contacts and has a rated operational current of 20A. The relay can handle a supply voltage of up to 250V AC, with a coil voltage type of AC. The mounting width requires 1 standard unit (17.5mm) and a standard front dimension of 45mm. The terminal cross-section accommodates 0.5–10 mm² solid and 0.5–6 mm² flexible with ferrule wires. Its type conforms to IEC/EN 60947 standards. The installation depth is 60mm.
Notice: This product will be discontinued in the future
Description
The Eaton Industries Z TN is an installation relay designed for top-hat rail mounting. Its mechanical function can be pre-selected for duration ON/AUTO/OFF and operates with a control voltage of 230V at a frequency of 50Hz. It features two normally open (N/O) make contacts and has a rated operational current of 20A. The relay can handle a supply voltage of up to 250V AC, with a coil voltage type of AC. The mounting width requires 1 standard unit (17.5mm) and a standard front dimension of 45mm. The terminal cross-section accommodates 0.5–10 mm² solid and 0.5–6 mm² flexible with ferrule wires. Its type conforms to IEC/EN 60947 standards. The installation depth is 60mm.
