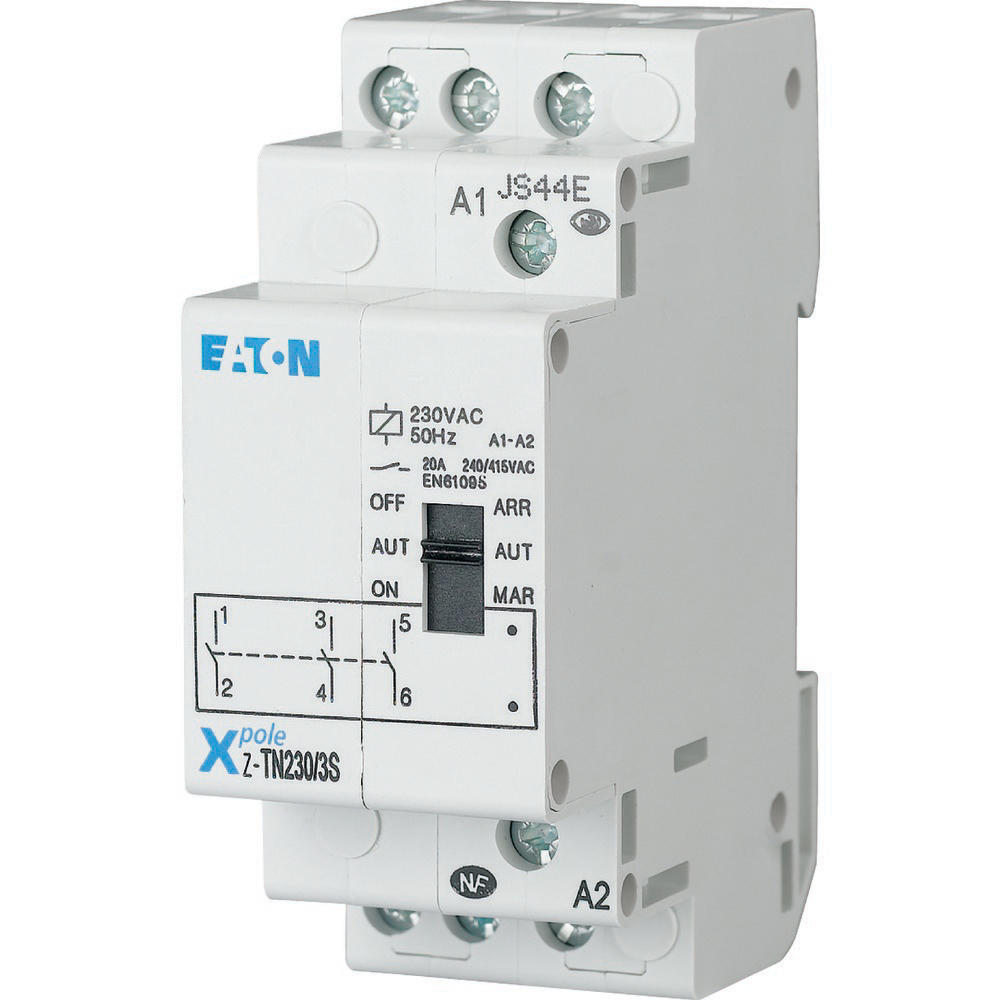

Eaton Pre-Selection Relay 230VAC 50Hz 20A 3NO 1HP - 265576
Notice: This product will be discontinued in the future
The Eaton Industries Z TN is an installation relay with a control voltage of 230V 50Hz and a power supply voltage of 250V AC. Its features include mechanical function pre-selection that provides duration ON/AUTO/OFF settings, three normally open (N/O) contacts, along with a coil voltage type 1 AC. The relay has a nominal measurement current of 20A and conforms to IEC/EN 60947 type. The product has a front dimension of 45mm, a mounting width of 1 SU (17.5mm), and an installation depth of 60mm. It's suitable for top-hat rail mounting, with terminal cross-sections of 0.5–10 mm² solid and 0.5–6 mm² flexible with a ferrule.
Notice: This product will be discontinued in the future
Description
The Eaton Industries Z TN is an installation relay with a control voltage of 230V 50Hz and a power supply voltage of 250V AC. Its features include mechanical function pre-selection that provides duration ON/AUTO/OFF settings, three normally open (N/O) contacts, along with a coil voltage type 1 AC. The relay has a nominal measurement current of 20A and conforms to IEC/EN 60947 type. The product has a front dimension of 45mm, a mounting width of 1 SU (17.5mm), and an installation depth of 60mm. It's suitable for top-hat rail mounting, with terminal cross-sections of 0.5–10 mm² solid and 0.5–6 mm² flexible with a ferrule.
