Eaton Pre-Selection Relay 24VAC 50Hz 20A 2NO 1HP Z-TN24/SS - 267976
Notice: This product will be discontinued in the future

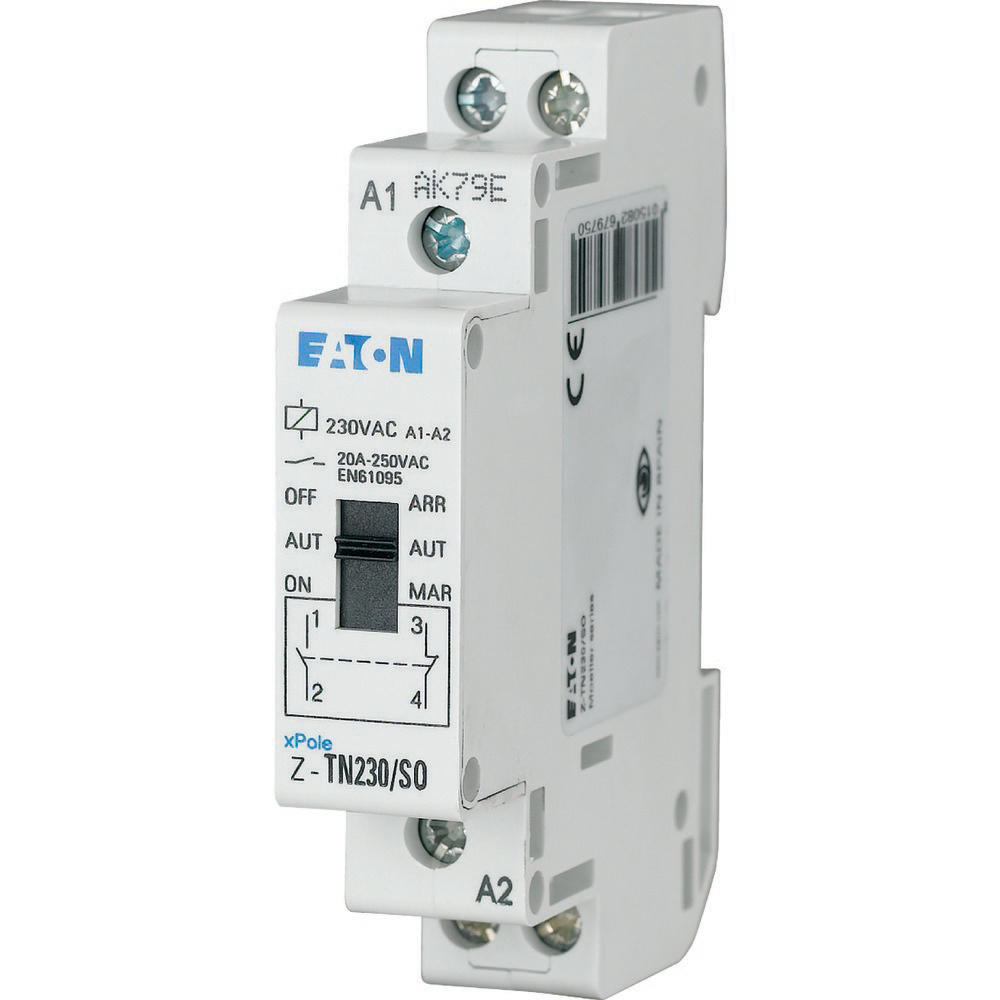

The Eaton Industries Installation Relay is a Z TN model with a coil voltage of 24V (50Hz) and a supply voltage of 250V AC. The relay comes with pre-selection functionality for duration ON/AUTO/OFF and operates with a nominal current up to 20 A. It features 2 make contacts conforming to IEC/EN 60947 standard and can be mounted on a DIN rail. Its compact size of 1 module unit (17.5mm) wide and an installation depth of 60mm, accommodates terminal cross-sections of 0.5-10mm² solid and flexible / 0.5-6 mm² flexible with ferrule. The front standard dimension is 45mm.
Notice: This product will be discontinued in the future
Description
The Eaton Industries Installation Relay is a Z TN model with a coil voltage of 24V (50Hz) and a supply voltage of 250V AC. The relay comes with pre-selection functionality for duration ON/AUTO/OFF and operates with a nominal current up to 20 A. It features 2 make contacts conforming to IEC/EN 60947 standard and can be mounted on a DIN rail. Its compact size of 1 module unit (17.5mm) wide and an installation depth of 60mm, accommodates terminal cross-sections of 0.5-10mm² solid and flexible / 0.5-6 mm² flexible with ferrule. The front standard dimension is 45mm.
