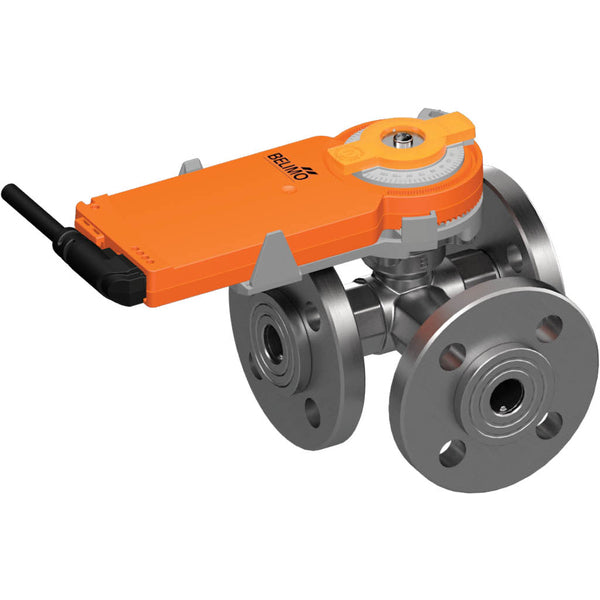

Electric 3-Way Ball Valve Flange DN 15 Brass EPDM 15m3/h 6bar/87psi 100-240 V AC

Electric 3-Way Ball Valve Flange DN 15 Brass EPDM 15m3/h 6bar/87psi 100-240 V AC
Electric 3-Way Ball Valve Flange DN 15 Brass EPDM 15m3/h 6bar/87psi 100-240 V AC
Electric 3-Way Ball Valve Flange DN 15 Brass EPDM 15m3/h 6bar/87psi 100-240 V AC
Image may vary slightly
See specifications for accurate information.
Reference: V3GQJ
Brand: Belimo
Mfr. Part: R7015R-B1/KR230

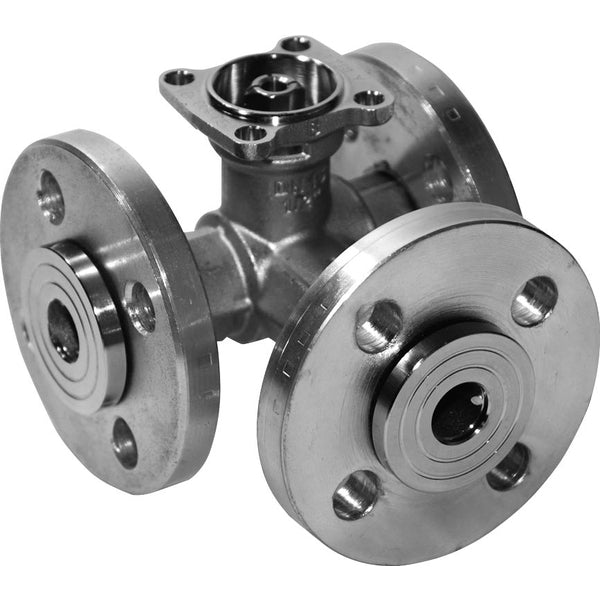

This is a 3-way Belimo ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the flange size is DN 15. This valve withstands pressure up to 6 bar (87 psi). The valve can operate between -10 and 100 °C (14 to 212 °F). The Kv value of the valve is 15 m3/h, equivalent to a Cv-value of 17.36 gpm. The actuator requires a supply voltage of 100-240 V AC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 75 seconds. The actuator has an IP54 rating.

View all
Note: product cannot be returned
Regular price
£515.60
excl VAT

In stock +14 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 14 days. Up to 16 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads
Related products

This is a 3-way Belimo ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the flange size is DN 15. This valve withstands pressure up to 6 bar (87 psi). The valve can operate between -10 and 100 °C (14 to 212 °F). The Kv value of the valve is 15 m3/h, equivalent to a Cv-value of 17.36 gpm. The actuator requires a supply voltage of 100-240 V AC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 75 seconds. The actuator has an IP54 rating.

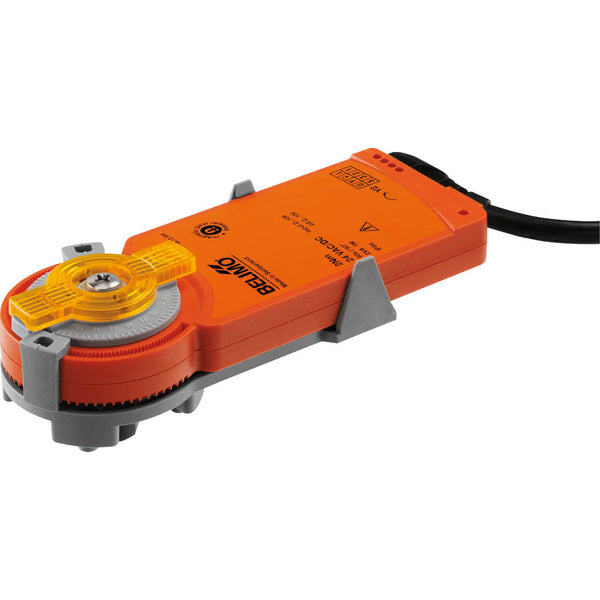

The actuator, equipped with overload protection, the actuator doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible with a magnet, which disengages the gear train as long as the magnet sticks to the magnet symbol. A Z-MA magnet for gear train disengagement is included. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The actuator can be adjusted from 90° (A-AB = 100%) in increments of 2.5°. The scale represents 25-100% of the kvs value.
