Electric 3-Way Ball Valve Flange DN 15 Brass EPDM 15m3/h 6bar/87psi 24 V AC/DC

Electric 3-Way Ball Valve Flange DN 15 Brass EPDM 15m3/h 6bar/87psi 24 V AC/DC
Electric 3-Way Ball Valve Flange DN 15 Brass EPDM 15m3/h 6bar/87psi 24 V AC/DC
Electric 3-Way Ball Valve Flange DN 15 Brass EPDM 15m3/h 6bar/87psi 24 V AC/DC
Image may vary slightly
See specifications for accurate information.
Reference: V3GRF
Brand: Belimo
Mfr. Part: R7015R-B1/NR24A-MOD-J6

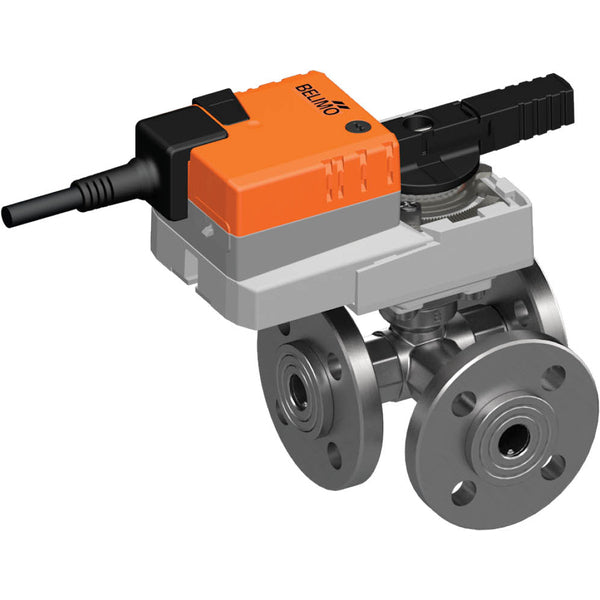

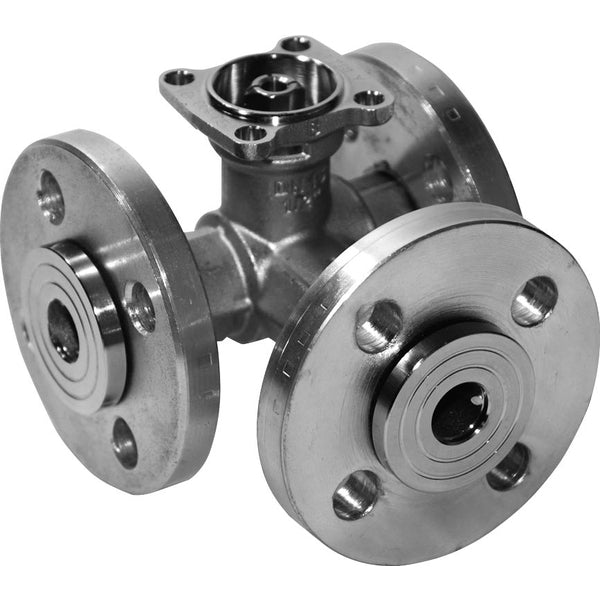

This is a 3-way Belimo ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the flange size is DN 15. This valve withstands pressure up to 6 bar (87 psi). The valve can operate between -10 and 100 °C (14 to 212 °F). The Kv value of the valve is 15 m3/h, equivalent to a Cv-value of 17.36 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator is designed with BACnet MSTP/Modbus RTU control, offering reliable and robust communication protocols for efficient operation and integration within the networked control environment. The actuator opens/closes the valve in 90 seconds. The actuator has an IP40 rating.

View all
Note: product cannot be returned
Regular price
£728.96
excl VAT

In stock +14 days On request On request
For a higher quantity than 0 of product V3GRF, the lead time of the order will increase by 14 days. The item is not online available in your chosen quantity, there are 7 items available for online order. For higher quantities please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads
Related products

This is a 3-way Belimo ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the flange size is DN 15. This valve withstands pressure up to 6 bar (87 psi). The valve can operate between -10 and 100 °C (14 to 212 °F). The Kv value of the valve is 15 m3/h, equivalent to a Cv-value of 17.36 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator is designed with BACnet MSTP/Modbus RTU control, offering reliable and robust communication protocols for efficient operation and integration within the networked control environment. The actuator opens/closes the valve in 90 seconds. The actuator has an IP40 rating.

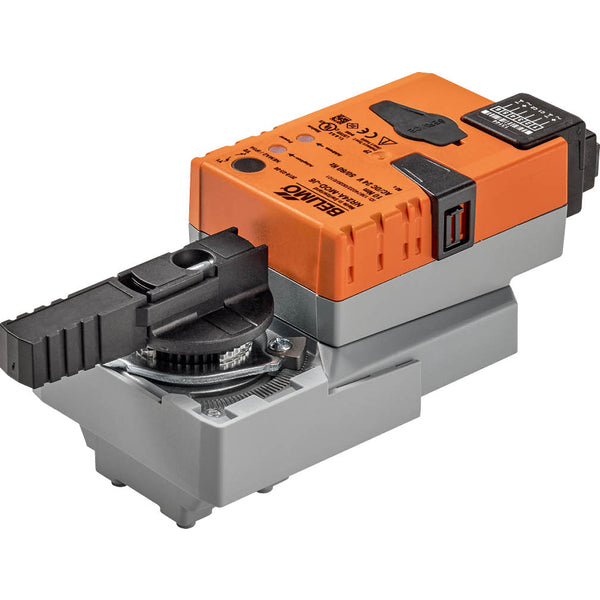

The actuator, equipped with overload protection, the actuator doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The actuator comes with an inbuilt interface for BACnet MSTP, Modbus RTU, and MP-Bus. It obtains the digital control signal from the control system and provides the present status. The rotation angle can be adjusted with mechanical end stops.
