Reference: V3GSR
Brand: Belimo
Mfr. Part: R7015R-B1/TR24

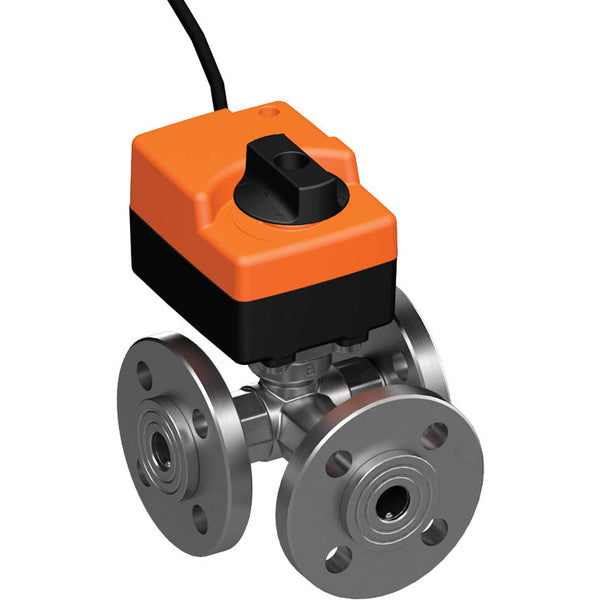

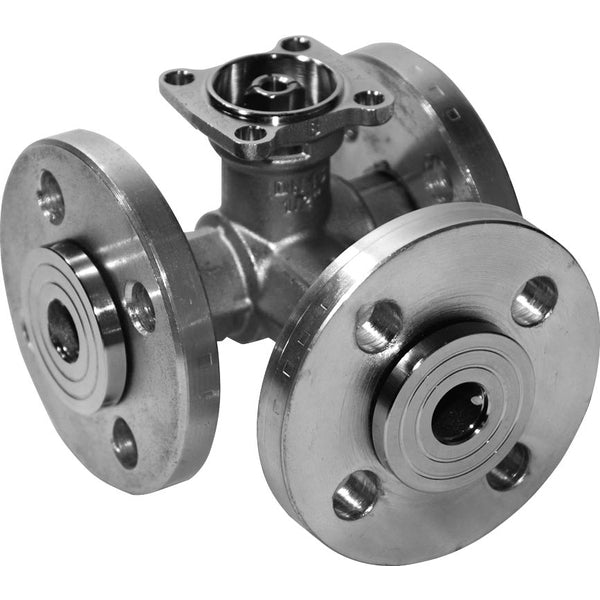

This is a 3-way Belimo ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the flange size is DN 15. This valve withstands pressure up to 6 bar (87 psi). The valve can operate between -10 and 100 °C (14 to 212 °F). The Kv value of the valve is 15 m3/h, equivalent to a Cv-value of 17.36 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 100 seconds. The actuator has an IP40 rating.

View all
Note: product cannot be returned
Regular price
£509.15
excl VAT

In stock +14 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 14 days. Up to 16 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads
Related products

This is a 3-way Belimo ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the flange size is DN 15. This valve withstands pressure up to 6 bar (87 psi). The valve can operate between -10 and 100 °C (14 to 212 °F). The Kv value of the valve is 15 m3/h, equivalent to a Cv-value of 17.36 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 100 seconds. The actuator has an IP40 rating.

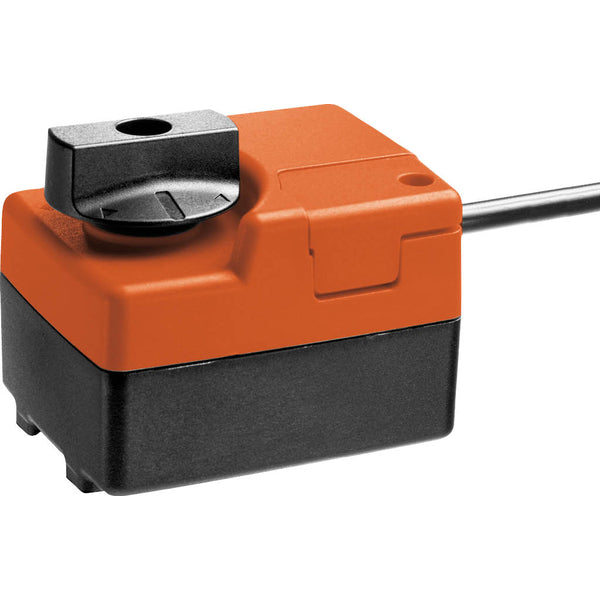

Manual override is possible using a lever, which disengages the gearing as long as the self-resetting lever is pressed. The actuator automatically switches off when end stops are reached, with a pulse duration of ≥0.5 s. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments.
