Electric 3-Way Ball Valve Flange DN 25 Brass EPDM 26m3/h 6bar/87psi 24-125 V DC / 24-240 V AC

Electric 3-Way Ball Valve Flange DN 25 Brass EPDM 26m3/h 6bar/87psi 24-125 V DC / 24-240 V AC
Electric 3-Way Ball Valve Flange DN 25 Brass EPDM 26m3/h 6bar/87psi 24-125 V DC / 24-240 V AC
Electric 3-Way Ball Valve Flange DN 25 Brass EPDM 26m3/h 6bar/87psi 24-125 V DC / 24-240 V AC
Image may vary slightly
See specifications for accurate information.
Reference: V3H5H
Brand: Belimo
Mfr. Part: R7025R-B2/SRFA

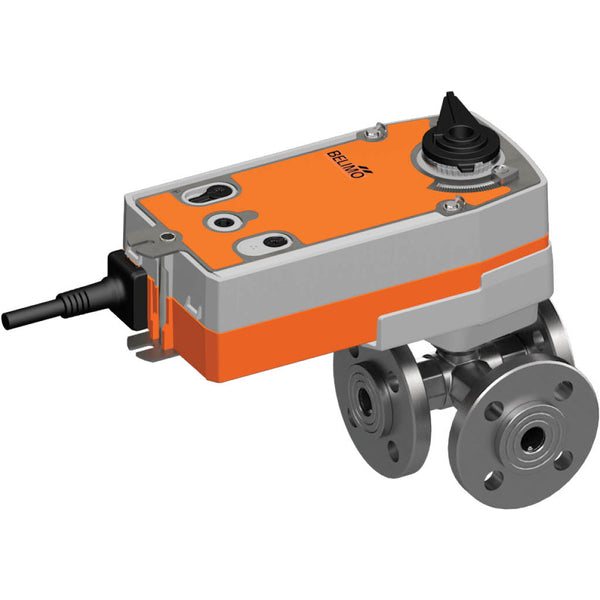

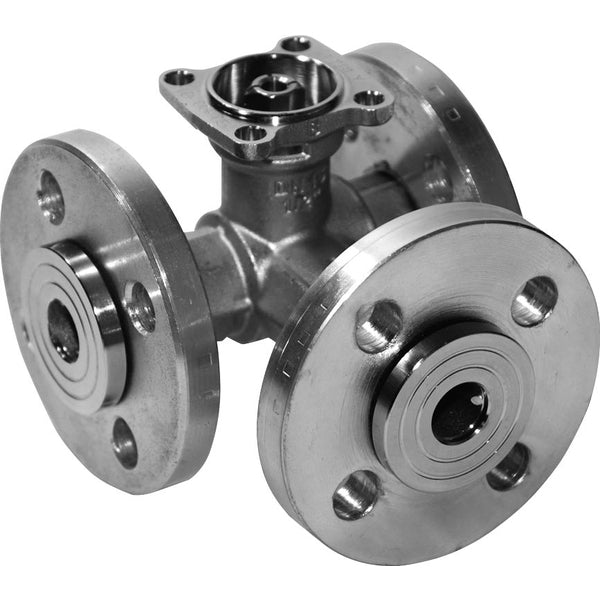

This is a 3-way Belimo ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 25 and the flange size is DN 25. This valve withstands pressure up to 6 bar (87 psi). The valve can operate between -10 and 100 °C (14 to 212 °F). The Kv value of the valve is 26 m3/h, equivalent to a Cv-value of 30.08 gpm. The actuator requires a supply voltage of 24-125 V DC / 24-240 V AC. The actuator opens/closes the valve in 75 seconds. The actuator has an IP54 rating. The actuator is equipped with a fail-safe (NO) feature that ensures safe operation in the event of a power failure.

View all
Note: product cannot be returned
Regular price
£836.37
excl VAT

In stock +14 days On request On request
For a higher quantity than 0 of product V3H5H, the lead time of the order will increase by 14 days. The item is not online available in your chosen quantity, there are 6 items available for online order. For higher quantities please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads
Related products

This is a 3-way Belimo ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 25 and the flange size is DN 25. This valve withstands pressure up to 6 bar (87 psi). The valve can operate between -10 and 100 °C (14 to 212 °F). The Kv value of the valve is 26 m3/h, equivalent to a Cv-value of 30.08 gpm. The actuator requires a supply voltage of 24-125 V DC / 24-240 V AC. The actuator opens/closes the valve in 75 seconds. The actuator has an IP54 rating. The actuator is equipped with a fail-safe (NO) feature that ensures safe operation in the event of a power failure.

The actuator, equipped with overload protection, the actuator doesn't need limit switches and will stop automatically when the end stop is reached. The valve can be manually operated and secured in any position using a hand crank. Unlocking can be done manually or automatically by applying the operating voltage. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The actuator is equipped with a universal power supply module that can utilize supply voltages of AC 24-240 V and DC 24-125V. The actuator moves the valve to the operating position while also tensioning the return spring. The valve returns to the fail-safe position by spring force when the supply voltage is interrupted. The rotation angle can be adjusted with mechanical end stops.

Pros:

  • The actuator is equipped with a fail-safe feature
