Reference: V3H4A
Brand: Belimo
Mfr. Part: R7025R-B2/LR24A-TP

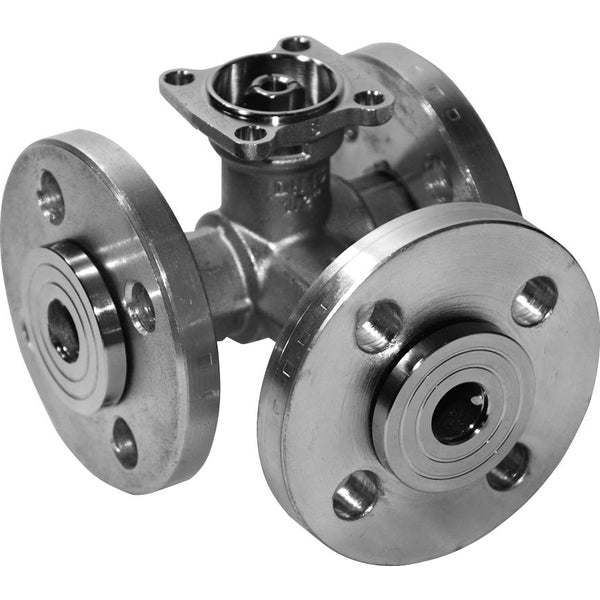

This is a 3-way Belimo ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 25 and the flange size is DN 25. This valve withstands pressure up to 6 bar (87 psi). The valve can operate between -10 and 100 °C (14 to 212 °F). The Kv value of the valve is 26 m3/h, equivalent to a Cv-value of 30.08 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 90 seconds. The actuator has an IP54 rating.

View all
Note: product cannot be returned
Regular price
£559.48
excl VAT

In stock +14 days On request On request
For a higher quantity than 0 of product V3H4A, the lead time of the order will increase by 14 days. The item is not online available in your chosen quantity, there are 15 items available for online order. For higher quantities please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads
Related products

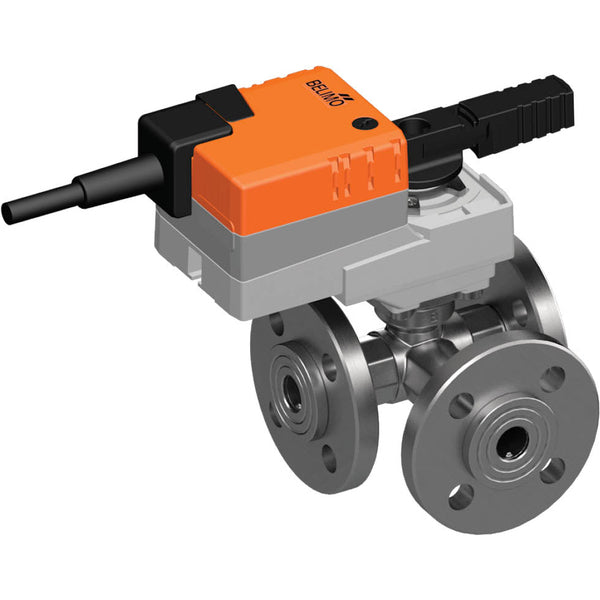

This is a 3-way Belimo ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 25 and the flange size is DN 25. This valve withstands pressure up to 6 bar (87 psi). The valve can operate between -10 and 100 °C (14 to 212 °F). The Kv value of the valve is 26 m3/h, equivalent to a Cv-value of 30.08 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 90 seconds. The actuator has an IP54 rating.

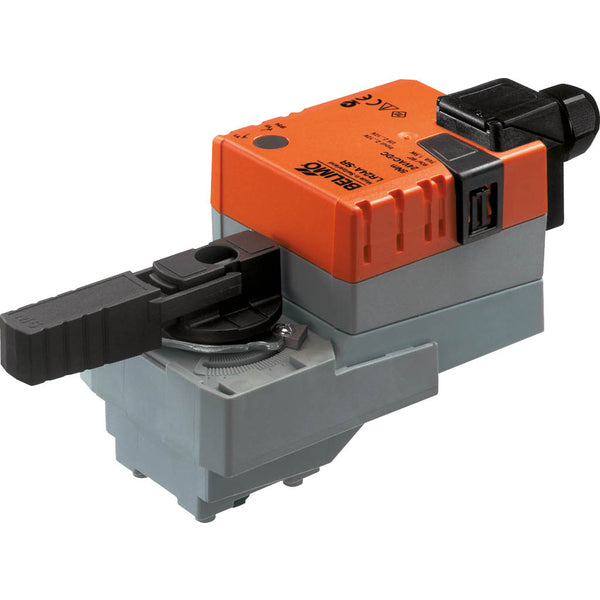

The actuator, equipped with overload protection, the actuator doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The rotation angle can be adjusted with mechanical end stops.
