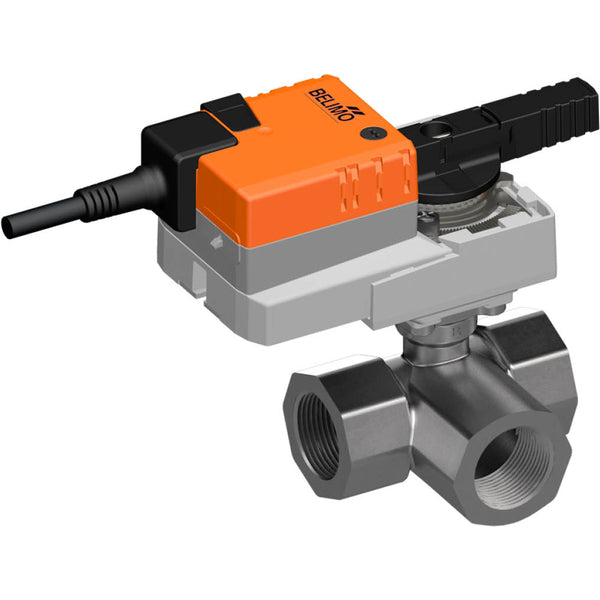

Belimo 3-Way Ball Valve Rp1-1/2 Kvs14 24VAC/DC 90s BACnet/Modbus 10Nm IP40 R3040-BL3/VNR24A-LP1

Belimo 3-Way Ball Valve Rp1-1/2 Kvs14 24VAC/DC 90s BACnet/Modbus 10Nm IP40 R3040-BL3/VNR24A-LP1
Belimo 3-Way Ball Valve Rp1-1/2 Kvs14 24VAC/DC 90s BACnet/Modbus 10Nm IP40 R3040-BL3/VNR24A-LP1
Belimo 3-Way Ball Valve Rp1-1/2 Kvs14 24VAC/DC 90s BACnet/Modbus 10Nm IP40 R3040-BL3/VNR24A-LP1
Image may vary slightly
See specifications for accurate information.
Reference: V39WA
Brand: Belimo
Mfr. Part: R3040-BL3/VNR24A-LP1

This is a Belimo 3-way ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 40 and the port size is Rp 1 1/2 inch with female threads. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 14 m3/h, equivalent to a Cv-value of 16.2 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator features BACnet IP/Modbus TCP control, enabling versatile communication and interoperability with other systems for streamlined control and monitoring capabilities. The actuator opens/closes the valve in 90 seconds. The actuator has an IP40 rating.

View all
Note: product cannot be returned
Regular price
£1042.79
excl VAT

In stock +14 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 14 days. Up to 4 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads
Related products

This is a Belimo 3-way ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 40 and the port size is Rp 1 1/2 inch with female threads. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 14 m3/h, equivalent to a Cv-value of 16.2 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator features BACnet IP/Modbus TCP control, enabling versatile communication and interoperability with other systems for streamlined control and monitoring capabilities. The actuator opens/closes the valve in 90 seconds. The actuator has an IP40 rating.

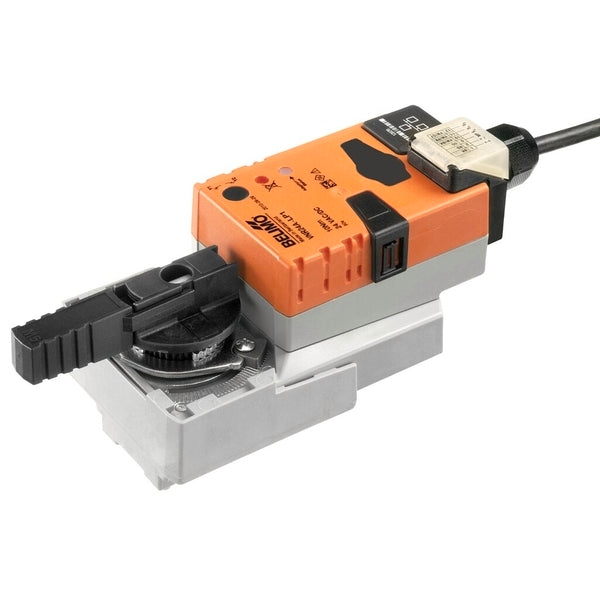

The actuator, equipped with overload protection, doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. Manual triggering of adaptation can be done by pressing the "Adaptation" button. Both mechanical end stops are detected during the adaptation (entire setting range). The actuator then moves into the position defined by the control signal. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The actuator is controlled via the Cloud, BACnet IP, or Modbus TCP and moves to the position defined by the control signal. Various data points can be written and read via the same interfaces. In hybrid mode, the actuator receives its analog control signal from the higher-level controller and moves to the defined position. Various data points can be read and written (except for the control signal) using the Cloud, BACnet IP, or Modbus TCP. The actuator is controlled via the Cloud, BACnet IP, or Modbus TCP and moves to the position defined by the control signal. Various data points can be written and read via the same interfaces. In hybrid mode, the actuator receives its analog control signal from the higher-level controller and moves to the defined position. Various data points can be read and written (except for the control signal) using the Cloud, BACnet IP, or Modbus TCP. The rotation angle can be adjusted with mechanical end stops. The recorded data (integrated data recording for 13 months) can be utilized for analytical purposes. CSV files can be downloaded via a web browser. Upon initial power supply, i.e., during commissioning, the actuator performs an adaptation where the operating range and position feedback adjust to the mechanical setting range. The actuator then moves into the position defined by the control signal.

Pros:

  • Manual override
  • The actuator is overload protected
  • Visual position indicator

Cons:

  • The time to open/close of 90 s is slow for some applications
