Belimo 3-Way Ball Valve Rp1-1/4 Kvs9 100-240VAC 20s 2/3-point 16Nm IP54 R3032-BL2/SRD230A
This is a Belimo 3-way ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 32 and the port size is Rp 1 1/4 inch with female threads. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 9 m3/h, equivalent to a Cv-value of 10.41 gpm. The actuator requires a supply voltage of 100-240 V AC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 20 seconds. The actuator has an IP54 rating.
- Regular price
- £410.42
Description

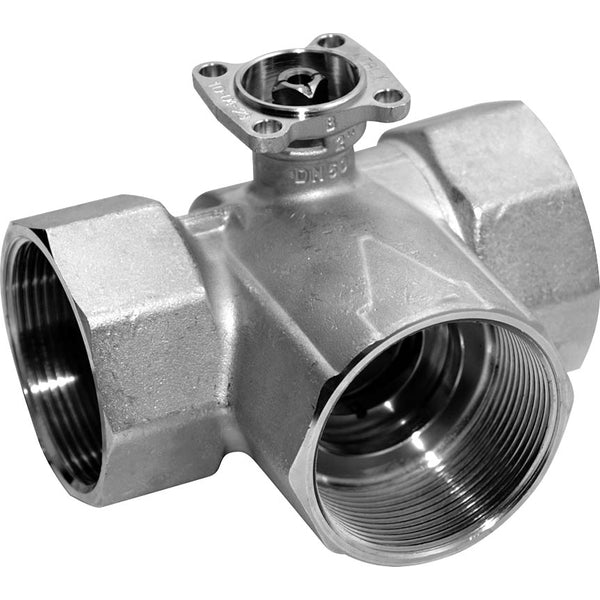

This is a Belimo 3-way ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 32 and the port size is Rp 1 1/4 inch with female threads. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 9 m3/h, equivalent to a Cv-value of 10.41 gpm. The actuator requires a supply voltage of 100-240 V AC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 20 seconds. The actuator has an IP54 rating.

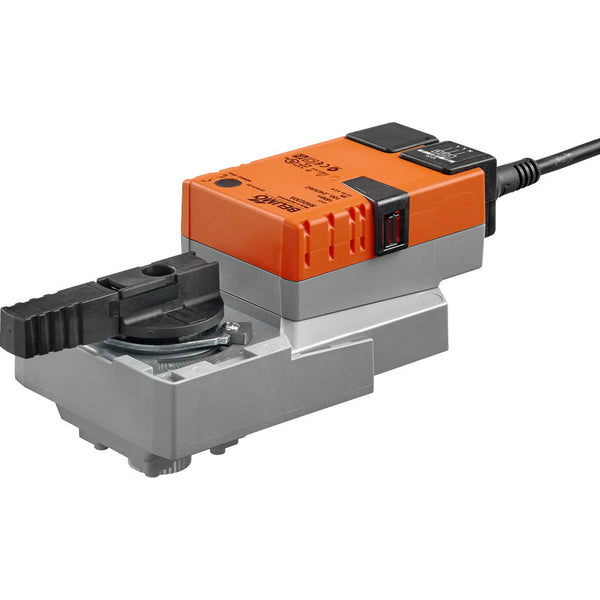

The actuator, equipped with overload protection, doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The rotation angle can be adjusted with mechanical end stops.
Pros:
- Manual override
- The actuator is overload protected
- Visual position indicator
