Belimo 3-Way Ball Valve Rp1/2 Kvs5.5 100-240VAC 90s 2/3-point 20Nm IP54 SPDT R3015-BL1/SR230A-S

Belimo 3-Way Ball Valve Rp1/2 Kvs5.5 100-240VAC 90s 2/3-point 20Nm IP54 SPDT R3015-BL1/SR230A-S
Belimo 3-Way Ball Valve Rp1/2 Kvs5.5 100-240VAC 90s 2/3-point 20Nm IP54 SPDT R3015-BL1/SR230A-S
Belimo 3-Way Ball Valve Rp1/2 Kvs5.5 100-240VAC 90s 2/3-point 20Nm IP54 SPDT R3015-BL1/SR230A-S
Image may vary slightly
See specifications for accurate information.
Reference: V37TG
Brand: Belimo
Mfr. Part: R3015-BL1/SR230A-S

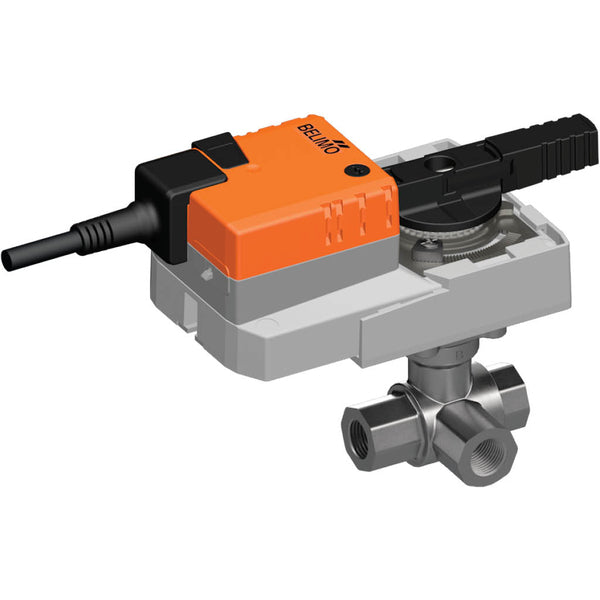

This is a Belimo 3-way ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is Rp 1/2 inch with female threads. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 5.5 m3/h, equivalent to a Cv-value of 6.36 gpm. The actuator requires a supply voltage of 100-240 V AC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 90 seconds. The actuator has an IP54 rating.

View all
Note: product cannot be returned
Regular price
£378.60
excl VAT

In stock +14 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 14 days. Up to 10 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads
Related products

This is a Belimo 3-way ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is Rp 1/2 inch with female threads. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 5.5 m3/h, equivalent to a Cv-value of 6.36 gpm. The actuator requires a supply voltage of 100-240 V AC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 90 seconds. The actuator has an IP54 rating.

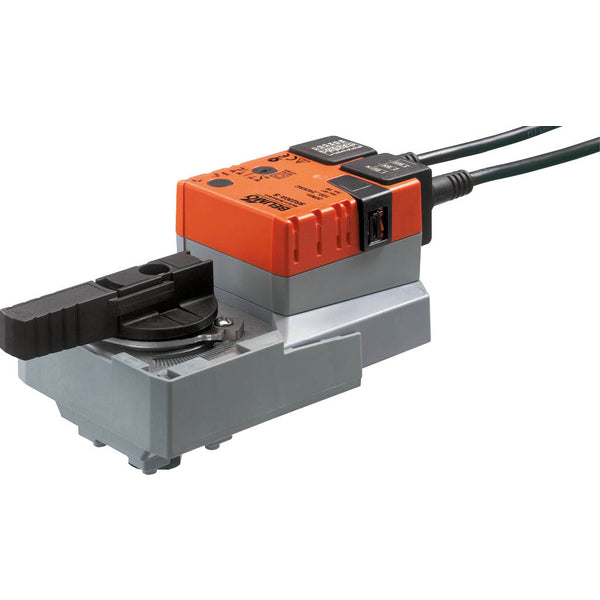

The actuator, equipped with overload protection, doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The rotation angle can be adjusted with mechanical end stops.

Pros:

  • Manual override
  • The actuator is overload protected
  • Visual position indicator

Cons:

  • The time to open/close of 90 s is slow for some applications
