Belimo 3-Way Ball Valve Rp3/4 Kvs11 24VAC/DC 90s MP-Bus 0-10/2-10V 10Nm IP54 R3020-BL2/NR24A-MP

Belimo 3-Way Ball Valve Rp3/4 Kvs11 24VAC/DC 90s MP-Bus 0-10/2-10V 10Nm IP54 R3020-BL2/NR24A-MP
Belimo 3-Way Ball Valve Rp3/4 Kvs11 24VAC/DC 90s MP-Bus 0-10/2-10V 10Nm IP54 R3020-BL2/NR24A-MP
Belimo 3-Way Ball Valve Rp3/4 Kvs11 24VAC/DC 90s MP-Bus 0-10/2-10V 10Nm IP54 R3020-BL2/NR24A-MP
Image may vary slightly
See specifications for accurate information.
Reference: V392Q
Brand: Belimo
Mfr. Part: R3020-BL2/NR24A-MP

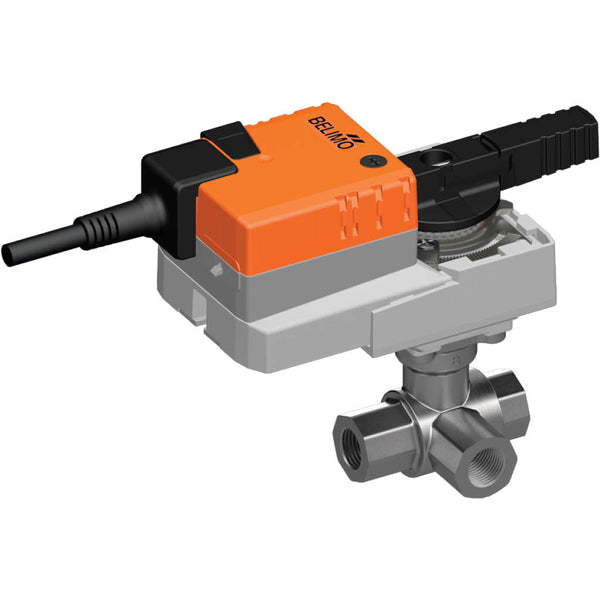

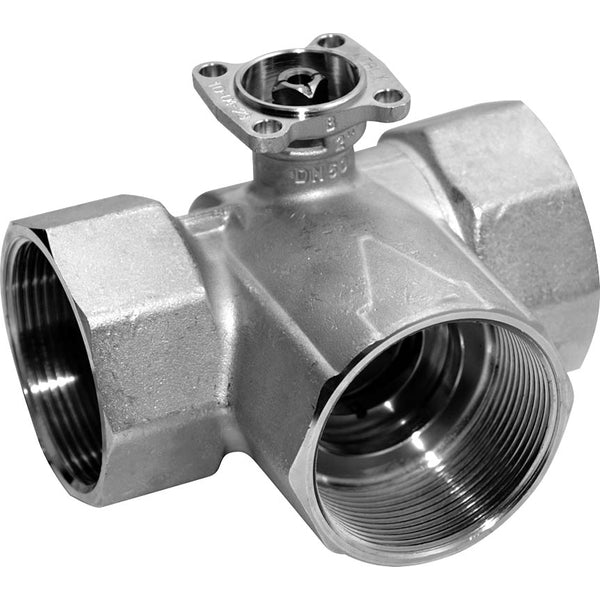

This is a Belimo 3-way ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 20 and the port size is Rp 3/4 inch with female threads. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 11 m3/h, equivalent to a Cv-value of 12.73 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator utilizes the MP-Bus communication protocol and provides position feedback in the range of 0-10 V or 2-10 V, allowing for precise control and accurate monitoring of its position within the specified voltage range. The actuator opens/closes the valve in 90 seconds. The actuator has an IP54 rating.

View all
Note: product cannot be returned
Regular price
£428.42
excl VAT

In stock +14 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 14 days. Up to 9 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads
Related products

This is a Belimo 3-way ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 20 and the port size is Rp 3/4 inch with female threads. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 11 m3/h, equivalent to a Cv-value of 12.73 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator utilizes the MP-Bus communication protocol and provides position feedback in the range of 0-10 V or 2-10 V, allowing for precise control and accurate monitoring of its position within the specified voltage range. The actuator opens/closes the valve in 90 seconds. The actuator has an IP54 rating.

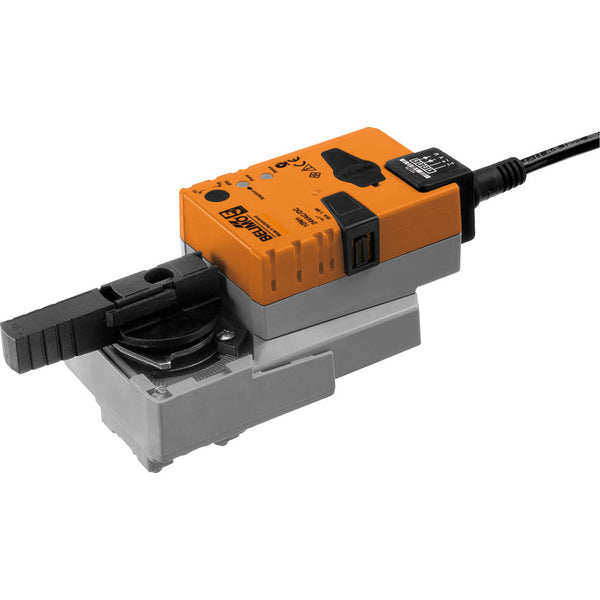

The actuator, equipped with overload protection, doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The actuator connects with a 0-10 V control signal and moves to the position defined by the signal. Voltage measurement is employed both for visually displaying the valve position within the 0.5% to 100% range and as a control signal for other actuators. In bus operation, the actuator receives its digital control signal from the upper-level controller via the MP-Bus and moves to the defined position. The U connection serves as a communication interface without providing an analog measuring voltage. The rotation angle can be adjusted with mechanical end stops.

Pros:

  • Manual override
  • The actuator is overload protected
  • Visual position indicator
  • This modulating actuator can position the valve anywhere between 0-90 degrees with a control signal of 0-10 V/2-10 V

Cons:

  • The time to open/close of 90 s is slow for some applications
