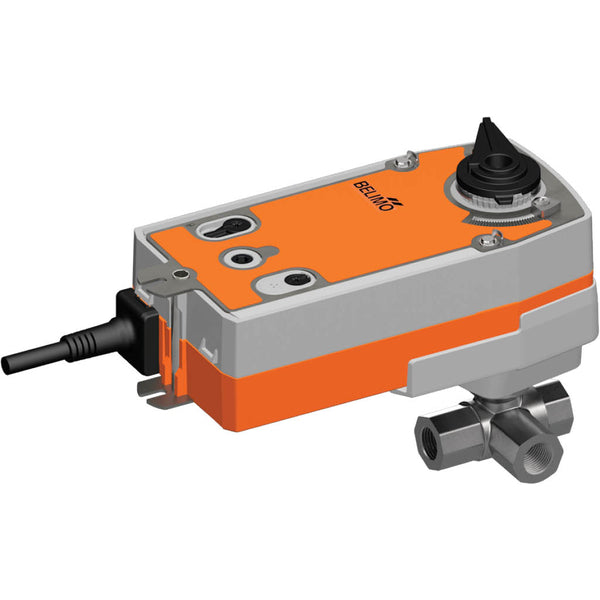

Belimo 3-Way Ball Valve Rp3/4 Kvs32 24-125VDC/24-240VAC Fail-Safe NO 75s 2-point 20Nm IP54 R3020-S2/SRFA-O

Belimo 3-Way Ball Valve Rp3/4 Kvs32 24-125VDC/24-240VAC Fail-Safe NO 75s 2-point 20Nm IP54 R3020-S2/SRFA-O
Belimo 3-Way Ball Valve Rp3/4 Kvs32 24-125VDC/24-240VAC Fail-Safe NO 75s 2-point 20Nm IP54 R3020-S2/SRFA-O
Belimo 3-Way Ball Valve Rp3/4 Kvs32 24-125VDC/24-240VAC Fail-Safe NO 75s 2-point 20Nm IP54 R3020-S2/SRFA-O
Image may vary slightly
See specifications for accurate information.
Reference: V3977
Brand: Belimo
Mfr. Part: R3020-S2/SRFA-O

This is a Belimo 3-way ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 20 and the port size is Rp 3/4 inch with female threads. The maximum pressure differential is 10 bar (145 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 32 m3/h, equivalent to a Cv-value of 37.02 gpm. The actuator requires a supply voltage of 24-125 V DC / 24-240 V AC. The actuator opens/closes the valve in 75 seconds. The actuator has an IP54 rating. The actuator is equipped with a fail-safe (NO) feature that ensures safe operation in the event of a power failure.

View all
Note: product cannot be returned
Regular price
£578.22
excl VAT

In stock +14 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 14 days. Up to 6 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads
Related products

This is a Belimo 3-way ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 20 and the port size is Rp 3/4 inch with female threads. The maximum pressure differential is 10 bar (145 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 32 m3/h, equivalent to a Cv-value of 37.02 gpm. The actuator requires a supply voltage of 24-125 V DC / 24-240 V AC. The actuator opens/closes the valve in 75 seconds. The actuator has an IP54 rating. The actuator is equipped with a fail-safe (NO) feature that ensures safe operation in the event of a power failure.

The actuator, equipped with overload protection, doesn't need limit switches and will stop automatically when the end stop is reached. The valve can be manually operated and secured in any position using a hand crank. Unlocking can be done manually or automatically by applying the operating voltage. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The actuator is equipped with a universal power supply module that can utilize supply voltages of AC 24-240 V and DC 24-125V. The actuator moves the valve to the operating position while also tensioning the return spring. The valve returns to the fail-safe position by spring force when the supply voltage is interrupted. The rotation angle can be adjusted with mechanical end stops.

Pros:

  • The actuator is equipped with a fail-safe feature
