ELEQ RM Current Transformer 40/5A | 4M2130N

ELEQ RM Current Transformer 40/5A | 4M2130N
ELEQ RM Current Transformer 40/5A | 4M2130N

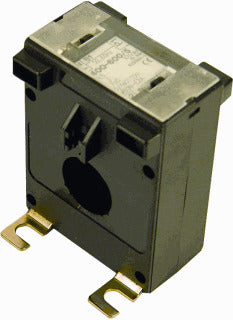

Image may vary slightly
See specifications for accurate information.
Reference: E23QY
Brand: ELEQ

Eleq RM/5A current measuring transformer. Primary measuring current In 40A. Secondary nominal current 5A. Secondary (measuring), apparent power 1.2VA. Version overshooting current measurement transformer. Accuracy class 3. Height opening 10.5mm. Width opening 20mm. Snap fastening. Opening diameter 22.7mm.

View all
Note: product cannot be returned
£27.51
excl VAT
In stock +40 days On request On request
For a higher quantity than 0 of product E23QY, the lead time of the order will increase by 40 days. The item is not online available in your chosen quantity, there are 46 items available for online order. For higher quantities please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 42 - 44 business days

Customers rate us: 4.8 / 5

435 reviews at Google

Description
Specifications
Downloads

Description

Eleq RM/5A current measuring transformer. Primary measuring current In 40A. Secondary nominal current 5A. Secondary (measuring), apparent power 1.2VA. Version overshooting current measurement transformer. Accuracy class 3. Height opening 10.5mm. Width opening 20mm. Snap fastening. Opening diameter 22.7mm.

Downloads

Specifications

Primary rated current (A)
40
Secondary rated current (A)
5
Secondary rated apparent power (VA)
1.2
Number of phases
1
Secondary connection
Screw connection
Output voltage
No
Over current limiting factor
FS 5
Accuracy class
3
Calibrated
No
Conductor feedthrough
22.5 mm
Number of primary inputs
1
Height opening (mm)
10.5 mm to 10.5 mm
Width opening (mm)
20 mm to 20 mm
Model
Attachable current transformer
With shock protection
Yes
Opening diameter (mm)
22.7
Snap mounting
Yes
With copper rail
No
