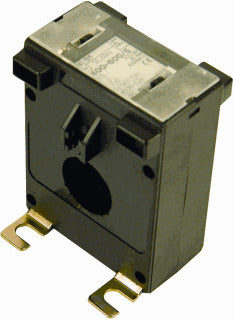

ELEQ RM Current Transformer 75/5A | 4M2103N

ELEQ RM Current Transformer 75/5A | 4M2103N
ELEQ RM Current Transformer 75/5A | 4M2103N
Image may vary slightly
See specifications for accurate information.
Reference: E23RG
Brand: ELEQ
Mfr. Part: 4M2103N

Eleq RM/5A current measuring transformer. Primary measuring current In 75A. Secondary nominal current 5A. Secondary (measuring), apparent power 3VA. Version overshooting current measurement transformer. Accuracy class 1. Height opening 10.5mm. Width opening 20mm. Snap fix. Opening diameter 22.7mm.

View all
£21.97
excl VAT
In stock +40 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 40 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 42 - 44 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

Eleq RM/5A current measuring transformer. Primary measuring current In 75A. Secondary nominal current 5A. Secondary (measuring), apparent power 3VA. Version overshooting current measurement transformer. Accuracy class 1. Height opening 10.5mm. Width opening 20mm. Snap fix. Opening diameter 22.7mm.

Downloads

Specifications

Primary rated current (A)
75
Secondary rated current (A)
5
Secondary rated apparent power (VA)
3
Number of phases
1
Secondary connection
Screw connection
Output voltage
No
Over current limiting factor
FS 5
Accuracy class
EV001823
Calibrated
No
Conductor feedthrough
22.5 mm
Number of primary inputs
1
Height opening (mm)
10.5 mm to 10.5 mm
Width opening (mm)
20 mm to 20 mm
Model
Attachable current transformer
With shock protection
Yes
Opening diameter (mm)
22.7
Snap mounting
Yes
With copper rail
No
