ELEQ TQ40-B Current Transformer 150/5A | 4Q4B58

ELEQ TQ40-B Current Transformer 150/5A | 4Q4B58
ELEQ TQ40-B Current Transformer 150/5A | 4Q4B58

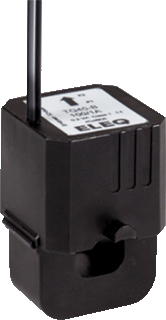

Image may vary slightly
See specifications for accurate information.
Reference: E23Q2
Brand: ELEQ
Mfr. Part: 4Q4B58

Eleq TQ40B current measuring transformer. Primary measuring current 150A, secondary rated 5A. Secondary (measuring), apparent power 1VA. Version overshooting current measurement transformer. Accuracy class 1. Height opening 18mm. Width opening 18mm. Opening diameter 18mm. Overcurrent limiting factor FFS 5.

View all
£67.56
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 36 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

Eleq TQ40B current measuring transformer. Primary measuring current 150A, secondary rated 5A. Secondary (measuring), apparent power 1VA. Version overshooting current measurement transformer. Accuracy class 1. Height opening 18mm. Width opening 18mm. Opening diameter 18mm. Overcurrent limiting factor FFS 5.

Downloads

Specifications

Primary rated current (A)
150
Secondary rated current (A)
5
Secondary rated apparent power (VA)
1
Number of phases
1
Secondary connection
Screw connection
Output voltage
No
Over current limiting factor
FS 5
Accuracy class
EV001823
Calibrated
No
Conductor feedthrough
61 x 35 mm
Number of primary inputs
1
Height opening (mm)
18 mm to 18 mm
Width opening (mm)
18 mm to 18 mm
Model
Attachable current transformer
With shock protection
Yes
Opening diameter (mm)
18
Snap mounting
No
With copper rail
No
