Festo Stopper Cylinder 32mm Bore 15mm Stroke Single Acting - 576117

Festo Stopper Cylinder 32mm Bore 15mm Stroke Single Acting - 576117
Festo Stopper Cylinder 32mm Bore 15mm Stroke Single Acting - 576117
Festo Stopper Cylinder 32mm Bore 15mm Stroke Single Acting - 576117
Festo Stopper Cylinder 32mm Bore 15mm Stroke Single Acting - 576117
Reference: P2EZG
Brand: Festo
Mfr. Part: DFSP-Q-32-15-PR-PA

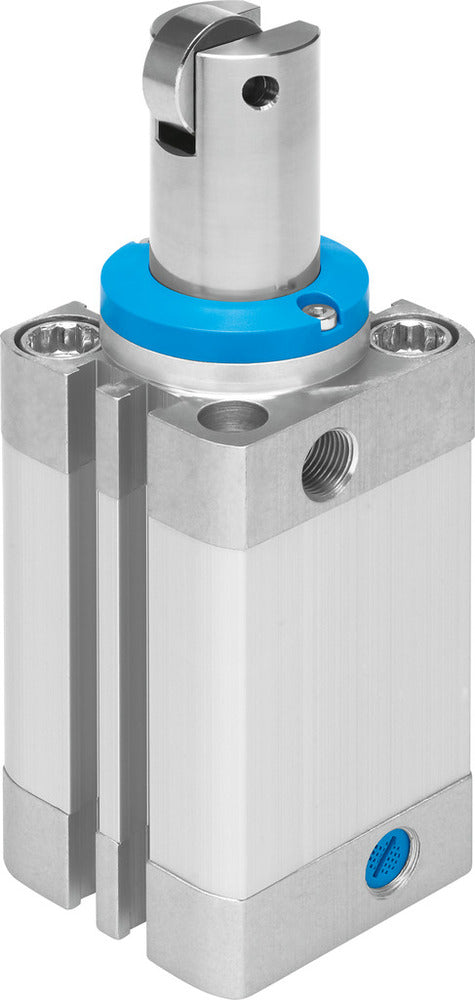

This stopper cylinder features a roller design with protection against rotation and operates in a single-action pulling mode. With a piston diameter of 32 mm and a stroke of 15 mm, it can withstand an impact force of up to 2670 N on the advanced piston rod. The cylinder is compatible with proximity sensors for position sensing. Its compact design includes sensor slots on three sides, ensuring versatile installation options. The sturdy piston rod guide and excellent cushioning characteristics contribute to a long service life, making it suitable for reliable stopping applications in industrial environments.

View all
£135.70
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.81 / 5

394 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This stopper cylinder features a roller design with protection against rotation and operates in a single-action pulling mode. With a piston diameter of 32 mm and a stroke of 15 mm, it can withstand an impact force of up to 2670 N on the advanced piston rod. The cylinder is compatible with proximity sensors for position sensing. Its compact design includes sensor slots on three sides, ensuring versatile installation options. The sturdy piston rod guide and excellent cushioning characteristics contribute to a long service life, making it suitable for reliable stopping applications in industrial environments.

Downloads

Product datasheet (EN)
pdf
Download
Brochure - DFSP_ENUS
pdf
Download

Specifications

Piston diameter (mm)
Diameter of the piston that moves inside the cylinder.
32
Stroke (mm)
The stroke length is how far the piston travels inside the cylinder.
15

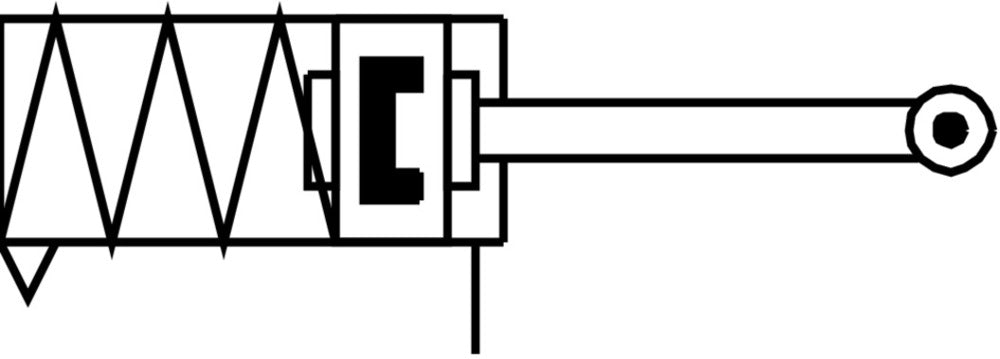

Operation
Working principle of the cylinder. Double-acting cylinders use compressed air to extend and retract. Single-acting cylinders use a spring or external force to return.
Single-action pulling
Pressure (bar)
The pressure at which the pneumatic cylinder operates.
1.2 bar to 10 bar
Cylinder feature
Additional features or capabilities of the cylinder.
Reed switch, Operation with oil lubrication possible
Sensor mounting style
Method or style of mounting a sensor to the cylinder.
Piston rod with roller, Non-rotating rod
Connection size
The size of the connection ports for the air hoses.
1/8 inch
Connection type
Refers to the type of port connection used on the pneumatic cylinder. This parameter is important in selecting the appropriate fittings or silencers to ensure proper installation and operation of the cylinder.
Inner thread cylindrical BSPP-G
Seal material
The choice for sealing materials mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart for substance compatibility.
Polyurethane (PUR)
Temperature (°C)
Safe and efficient operating temperature range.
-10 °C to 80 °C
Rod style
Shape and design of the piston rod.
Flattened piston rod, Non-rotating rod
Mounting method
With through-hole, With accessories, With internal thread
Mounting disposition
The arrangement or method used to physically install or mount the controller.
Any
Structural design
Piston, Profile barrel
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Note on materials
RoHS-compliant
Piston rod material
High-alloy stainless steel
Material of cylinder barrel
Aluminum alloy smooth-anodized
Flange screws material
Galvanized steel
