Reference: P2EZU
Brand: Festo
Mfr. Part: DFSP-40-30-PS-PA

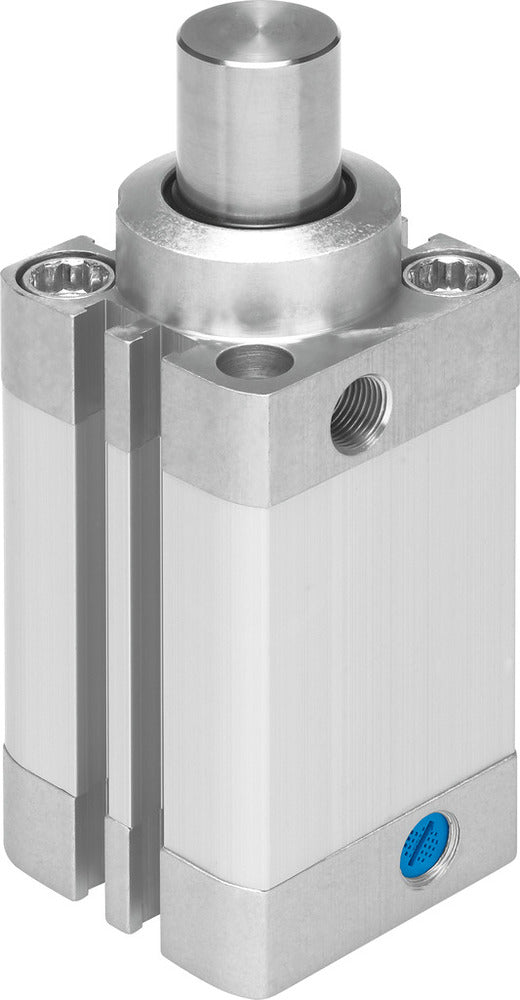

This single-action pulling stopper cylinder features a trunnion design and a 40 mm piston diameter, offering a stroke of 30 mm. It can withstand an impact force of up to 5540 N on the advanced piston rod, ensuring reliable performance in demanding applications. The cylinder is equipped with sensor slots on three sides, allowing for easy integration of proximity sensors for position sensing. Its compact design and robust construction provide long service life, making it suitable for various industrial automation tasks where precise stopping and positioning are required.

View all
£139.01
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.81 / 5

394 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This single-action pulling stopper cylinder features a trunnion design and a 40 mm piston diameter, offering a stroke of 30 mm. It can withstand an impact force of up to 5540 N on the advanced piston rod, ensuring reliable performance in demanding applications. The cylinder is equipped with sensor slots on three sides, allowing for easy integration of proximity sensors for position sensing. Its compact design and robust construction provide long service life, making it suitable for various industrial automation tasks where precise stopping and positioning are required.

Downloads

Product datasheet (EN)
pdf
Download
Brochure - DFSP_ENUS
pdf
Download

Specifications

Piston diameter (mm)
Diameter of the piston that moves inside the cylinder.
40
Stroke (mm)
The stroke length is how far the piston travels inside the cylinder.
30

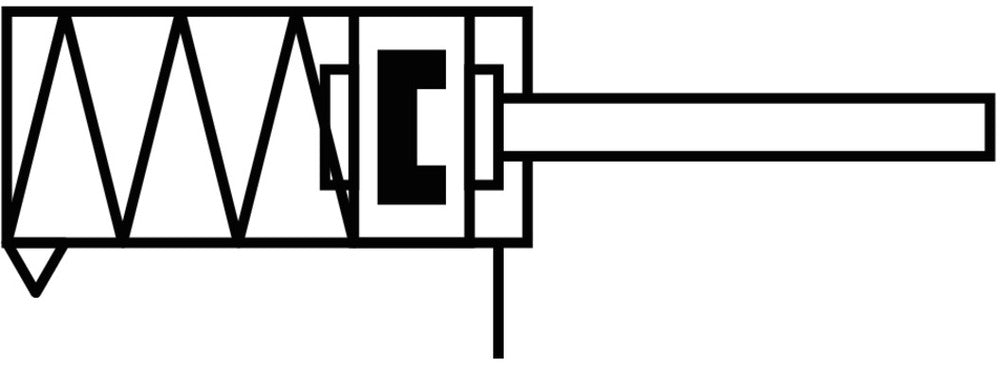

Operation
Working principle of the cylinder. Double-acting cylinders use compressed air to extend and retract. Single-acting cylinders use a spring or external force to return.
Single-action pulling
Pressure (bar)
The pressure at which the pneumatic cylinder operates.
1.2 bar to 10 bar
Cylinder feature
Additional features or capabilities of the cylinder.
Reed switch, Operation with oil lubrication possible
Connection size
The size of the connection ports for the air hoses.
1/8 inch
Connection type
Refers to the type of port connection used on the pneumatic cylinder. This parameter is important in selecting the appropriate fittings or silencers to ensure proper installation and operation of the cylinder.
Inner thread cylindrical BSPP-G
Seal material
The choice for sealing materials mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart for substance compatibility.
Polyurethane (PUR)
Temperature (°C)
Safe and efficient operating temperature range.
-10 °C to 80 °C
Rod style
Shape and design of the piston rod.
Round rod
Mounting method
With through-hole, With accessories, With internal thread
Mounting disposition
The arrangement or method used to physically install or mount the controller.
Any
Structural design
Piston, Piston rod, Profile barrel
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Note on materials
RoHS-compliant
Piston rod material
High-alloy stainless steel
Material of cylinder barrel
Aluminum alloy smooth-anodized
Flange screws material
Galvanized steel
Cover material
Aluminum alloy anodized
