Finder 78 DC Power Supply 24V | 78.36.1.230.2401

Notice: This product is discontinued

Discontinued

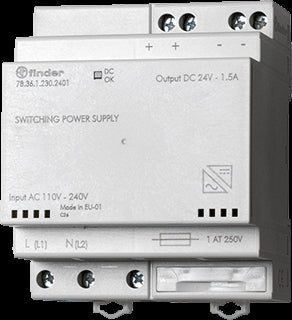

Finder 78 DC Power Supply 24V | 78.36.1.230.2401
Finder 78 DC Power Supply 24V | 78.36.1.230.2401
Image may vary slightly
See specifications for accurate information.
Reference: E25XU
Brand: Finder
Mfr. Part: 78.36.1.230.2401

Finder 78 DC power supply unit, (wxdxh), 70x56.5x88.8mm. 1st Secondary voltage 24V. Voltage type AC/DC. Nominal supply voltage AC 50 Hz 110-240V. output current 11.7A, power output 36W. Modular design for rail mount. Nominal output voltage 124V.

View all

Notice: This product is discontinued

Description
Specifications
Downloads
Related products

Description

Finder 78 DC power supply unit, (wxdxh), 70x56.5x88.8mm. 1st Secondary voltage 24V. Voltage type AC/DC. Nominal supply voltage AC 50 Hz 110-240V. output current 11.7A, power output 36W. Modular design for rail mount. Nominal output voltage 124V.

Downloads

Specifications

Voltage type of supply voltage
AC/DC
1st secondary output voltage at DC (V)
24 V to 24 V
2nd secondary output voltage at DC (V)
24 V to 24 V
Max. output current 1 (A)
1.7
Max. output current 2 (A)
1.7
Secondary voltage adjustable
No
Nominal value output voltage 1 (V)
24
Nominal value output voltage 2 (V)
24
Nominal value output current 1 (A)
1.5
Nominal value output current 2 (A)
1.5
Rated voltage AC (V)
110 V to 240 V
Rated voltage (AC 60 Hz) (V)
110 V to 240 V
Rated voltage DC (V)
220 V to 220 V
Electrical connection
Type of electric connection.
Screw connection
Output voltage stabilized
Yes
Power consumption (VA)
57.5
Power output (W)
36
Stabilized
Yes
Short-circuit-proof
Yes
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
Suitable for safety functions
No
SIL (IEC 61508)
None
Refurbished
No
Modular version
Yes
Direct mounting possible
Yes
Wall mounting possible
No
Rail mounting possible
Yes
Performance level (EN ISO 13849-1)
None
Width in number of modular spacings
4
Built-in width (mm)
70
Built-in height (mm)
88.8
