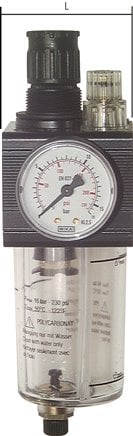

FRL G1'' 3400 l/min 0.5-10.0bar/7-145psi Semi-Auto Protective Cage Polycarbonate Combo 2

This filter regulator lubricator (FRL) combines three functions. The filter removes water, dirt and other harmful particles larger than 40 microns. The pressure regulator adjusts the pressure continuously to a stable level, even when the input pressure varies. The level can be adjusted between 0.5 to 10.0 bar (7 to 145 psi). The lubricator introduces oil into the pneumatic air to reduce internal friction for pneumatic components. Most modern pneumatic equipment doesn't need lubrication, only use a lubricator if downstream equipment requires it. The recommended lubricating oil type is ISO-VG32 turbine oil. This model has G 1 inch ports. The maximum flow rate is 3400 l/min. It is recommended to select a filter with a maximum flow rate 1.5 to 2 times higher than the maximum flow rate in your system to avoid excessive pressure drop. Additionally, keep in mind that lower input pressures may reduce the achievable maximum flow rate, so ensure your system pressure is sufficient for optimal performance. Note that the pressure regulator controls the output pressure, not the flow rate. The output pressure can be adjusted by pulling the hand wheel up and twisting.

The maximum input pressure is 16.0 bar (232 psi) and the temperature range is between 0 and 50 °C (32 and 122 °F). It has a semi-auto condensate drain with a drain capacity of 75 cm³. Semi-auto means that it drains as soon as the airline is depressurized, however it can also be drained manually. The lubricator requires a minimal flow rate of l/min and can hold 150 cm³ of oil. The housing material is made out of zinc die-cast and the filter and lubricator bowls are made of polycarbonate (PC). The bowl has protective cage.

Mounting brackets need to be ordered separately.
