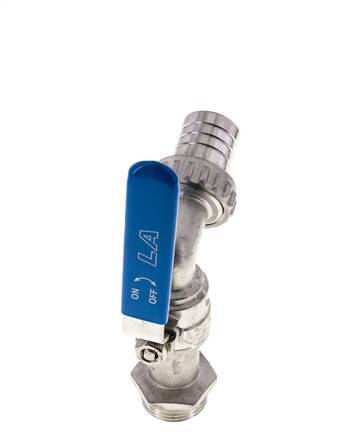

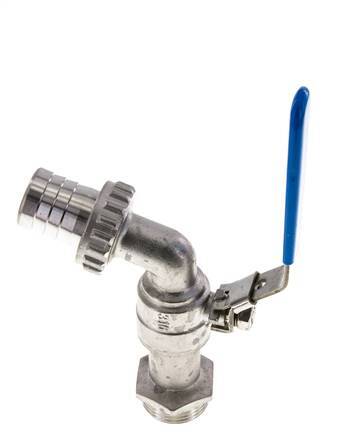

G 1 inch Stainless Steel 2-Way Faucet Ball Valve
Faucet ball valve with a male G 1 inch inlet port and a 27.5 mm hose barb as outlet port. The valve bore is 15 mm and the maximum pressure is 16 bar or 232 psi. Suitable for water, oil, fuels, compressed air and solvents. Suitable for temperatures from -10 to 150 °C (14 to 302 °F). Stainless steel housing and ball and PTFE/NBR sealings.
- Regular price
- £36.48
Description
This 2-way stainless steel ball valve with a nominal diameter of 15 mm is designed for draining and discharging.
The valve has a male G 1 inch inlet port and a 27.5 mm hose barb outlet port. The hose barb is removable.
The housing and the ball material is stainless steel and the sealings are made of PTFE/NBR. Suitable for water, steam, oil, compressed air, fuels and solvents up to a maximum operating pressure of 16 bar or 232 psi. The valve is suitable for temperatures from -10 to 150 °C (14 to 302 °F).
Use the handle to operate the valve. By rotating it 90 degrees, the valve will open or close. If it is perpendicular to the pipe, the valve is closed.
Pros:
- Unobstructed flow of the media thanks to the full bore design
- The valve has a lockable hand lever
- Wide temperature range thanks to high quality materials
- Ideally suited as a draining or discharging valve
- Ideal as filling or draining valve for heating installations
- Including a closing cap to prevent accidental leaks
Cons:
- Not suitable for aggressive media
BL2SH-MFA series
View our 2-way faucet brass ball valve BL2SH-MFA series designed for draining and discharging. The inlet port ranges from 1/2 to 1 inch. The outlet port has a removable hose barb, sizes range from 13 to 27.5 mm. The housing and the ball material is stainless steel and the sealings are PTFE. The valves are suitable for a wide variety media, such as water, steam, oil, compressed air, fuels and solvents up to a maximum operating pressure of 16 bar or 232 psi. The series is also suitable for vacuum applications (max. -0.9 bar or -13 psi). The valves can be used within a temperature range from -10 to 150 °C (14 to 302 °F). The whole series is handle operated and provides reliability and a long service life.
