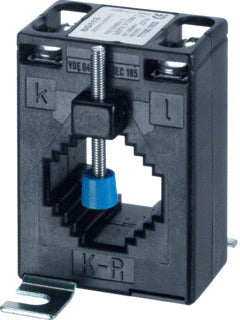

Hager Current Transformer 250/5A | SRA02505

Hager Current Transformer 250/5A | SRA02505
Hager Current Transformer 250/5A | SRA02505
Image may vary slightly
See specifications for accurate information.
Reference: E26DR
Brand: Hager
Mfr. Part: SRA02505

Hager current measuring transformer. Primary measuring current in 250A. Secondary rated current 5A. Secondary (measuring), apparent power 2.5VA. Version overshooting current measurement transformer. Accuracy class 1. Height opening 20mm. Width opening 29.5mm. Opening diameter 20mm. Overcurrent limiting factor FS 5.

View all
£44.66
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 16 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Customers rate us: 4.88 / 5

378 reviews at TrustedShops

Description
Specifications
Downloads

Description

Hager current measuring transformer. Primary measuring current in 250A. Secondary rated current 5A. Secondary (measuring), apparent power 2.5VA. Version overshooting current measurement transformer. Accuracy class 1. Height opening 20mm. Width opening 29.5mm. Opening diameter 20mm. Overcurrent limiting factor FS 5.

Downloads

Specifications

Primary rated current (A)
250
Secondary rated current (A)
5
Secondary rated apparent power (VA)
2.5
Secondary connection
Screw connection
Over current limiting factor
FS 5
Accuracy class
EV001823
Calibrated
No
Number of primary inputs
1
Height opening (mm)
20 mm to 20 mm
Width opening (mm)
29.5 mm to 29.5 mm
Model
Attachable current transformer
With shock protection
Yes
Opening diameter (mm)
20
Snap mounting
No
With copper rail
No
