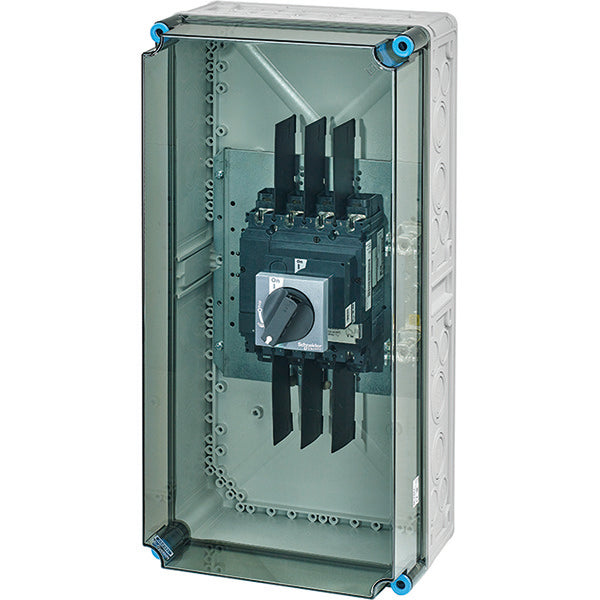

Hensel Power Switch Cabinet 250A 4P BM3 300x600mm With PE Clamp - Mi 7442
The Hensel Mi-distributor built-in unit with a power switch is an insulated low-voltage switchgear combination in a cabinet form as per IEC 61439-2, suited for wall mounting. The cabinets need to be suitable for outdoor installation, considering the impact of weather conditions on the operational means. Cabinet parts and the cover are made from impact-resistant polycarbonate, halogen and silicone free, in RAL 7035 color, with a transparent cover with quick-release fasteners for tool operation. It meets fire behavior according to DIN VDE 0471 Part 2 – Glow Wire Test 960 °C. Maximum water absorption is 10 mg according to DIN 53473. It features a double-insulated protection measure (protection class II). The unit includes a 4-pole automatic circuit breaker housing, with overload and short-circuit protection, and a PE-clamp. The protection level is IP 65 as per IEC 60 529. Dimensions are 600 x 300 x 262 mm.
- Regular price
- £1,828.14
Description
The Hensel Mi-distributor built-in unit with a power switch is an insulated low-voltage switchgear combination in a cabinet form as per IEC 61439-2, suited for wall mounting. The cabinets need to be suitable for outdoor installation, considering the impact of weather conditions on the operational means. Cabinet parts and the cover are made from impact-resistant polycarbonate, halogen and silicone free, in RAL 7035 color, with a transparent cover with quick-release fasteners for tool operation. It meets fire behavior according to DIN VDE 0471 Part 2 – Glow Wire Test 960 °C. Maximum water absorption is 10 mg according to DIN 53473. It features a double-insulated protection measure (protection class II). The unit includes a 4-pole automatic circuit breaker housing, with overload and short-circuit protection, and a PE-clamp. The protection level is IP 65 as per IEC 60 529. Dimensions are 600 x 300 x 262 mm.
