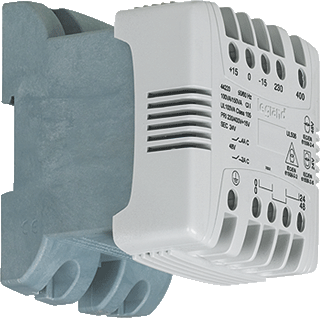

Legrand 1-Phase Transformer 215V | 44216

Legrand 1-Phase Transformer 215V | 44216
Legrand 1-Phase Transformer 215V | 44216
Image may vary slightly
See specifications for accurate information.
Reference: E23UF
Brand: Legrand

This safety transformer by Legrand is intended to be used as a safety transformer. The primary voltage is 230V, and the secondary voltage 24V. The (measuring the apparent power) 400VA. The safety transformer can be mounted on DIN rails measuring 7.5mm without mounting plates or 15mm with mounting plates. The transformer also comes with a coupling strip to allow for quick connections between zero and ground. Conform to EC EN 61558-2-6.

View all
Note: product cannot be returned
£223.55
excl VAT
In stock +40 days On request On request
For a higher quantity than 0 of product E23UF, the lead time of the order will increase by 40 days. The item is not online available in your chosen quantity, there are 15 items available for online order. For higher quantities please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 42 - 44 business days

Customers rate us: 4.8 / 5

435 reviews at Google

Description
Specifications
Downloads
Related products

Description

This safety transformer by Legrand is intended to be used as a safety transformer. The primary voltage is 230V, and the secondary voltage 24V. The (measuring the apparent power) 400VA. The safety transformer can be mounted on DIN rails measuring 7.5mm without mounting plates or 15mm with mounting plates. The transformer also comes with a coupling strip to allow for quick connections between zero and ground. Conform to EC EN 61558-2-6.

Downloads

Datasheet (EN)
pdf
Download

Specifications

Primary voltage 1 (V)
215 V to 215 V
Primary voltage 2 (V)
230 V to 230 V
Primary voltage 3 (V)
245 V to 245 V
Primary voltage 4 (V)
385 V to 385 V
Primary voltage 5 (V)
400 mm to 400 mm
Primary voltage 6 (V)
415 V to 415 V
Secondary voltage 1 (V)
24 V to 24 V
Rated apparent power (VA)
400
Short-circuit-proof
No
Type of insulation material according to IEC 85
B
Relative short circuit voltage (%)
4.17
Degree of protection (IP)
This standard indicates how well electrical enclosures resist dirt and water. The first number shows how well the enclosure is protected. The second number shows how well the inside equipment is protected.
IP2X
Built as energy saving transformer
No
Built as isolating transformer
No
Built as safety transformer
Yes
Ring core
No
Modular version
No
Suitable for mounting on PCB
No
