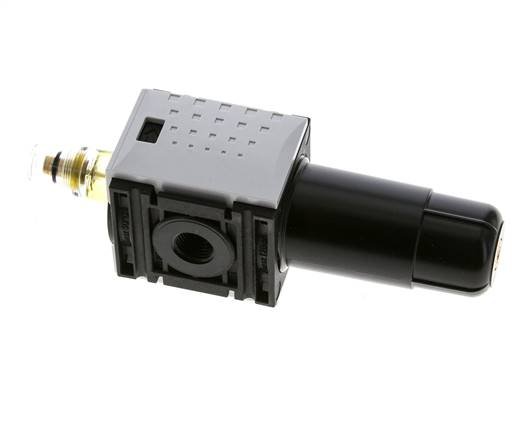

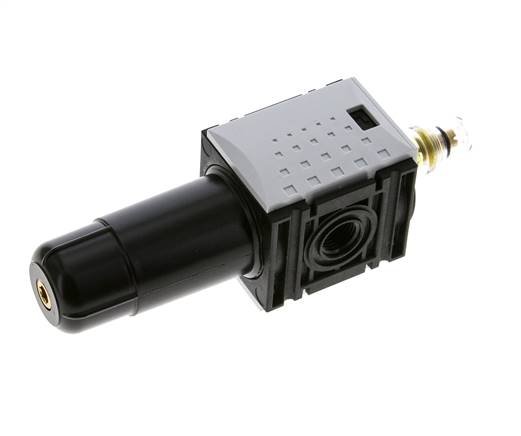

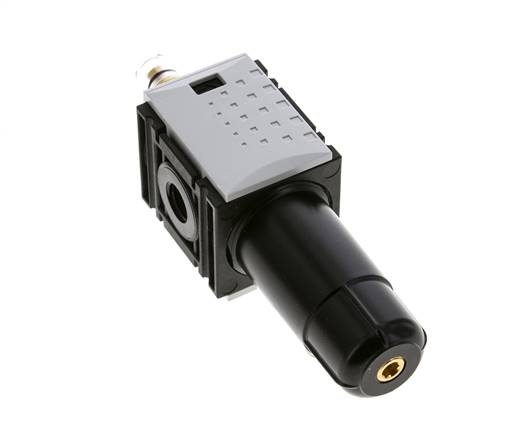

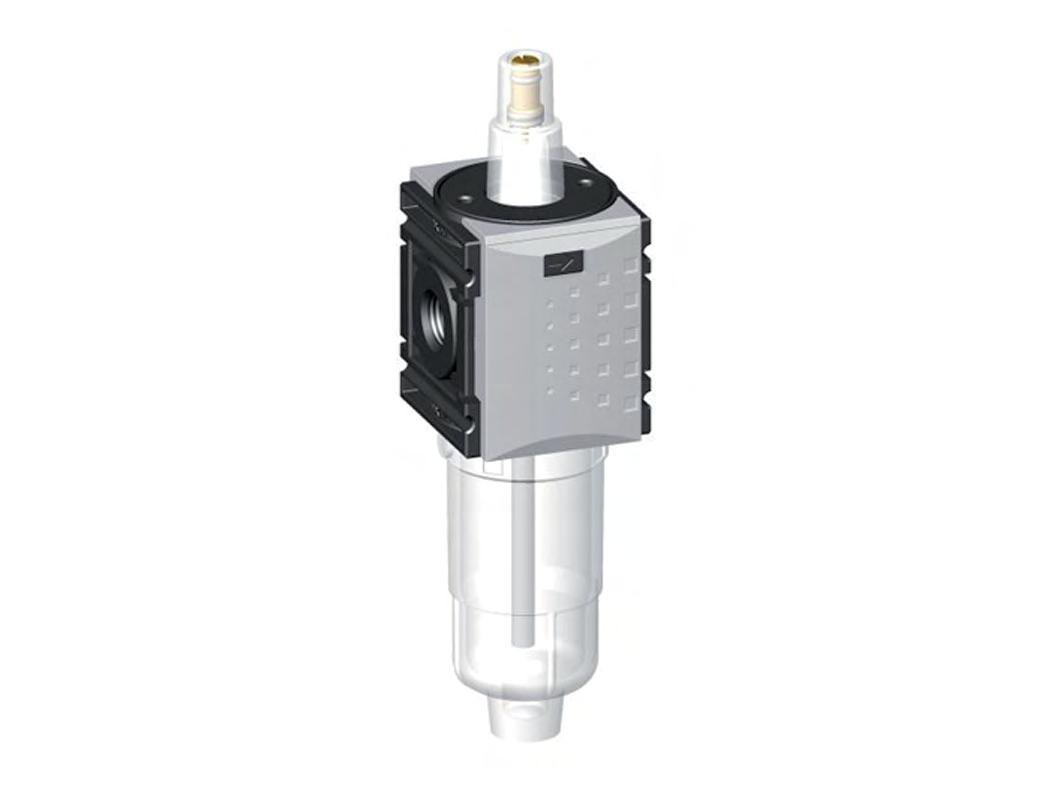

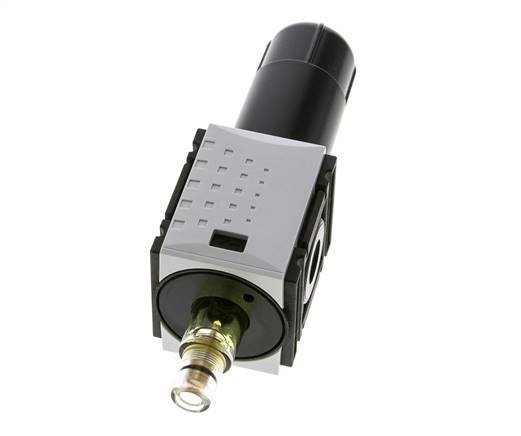

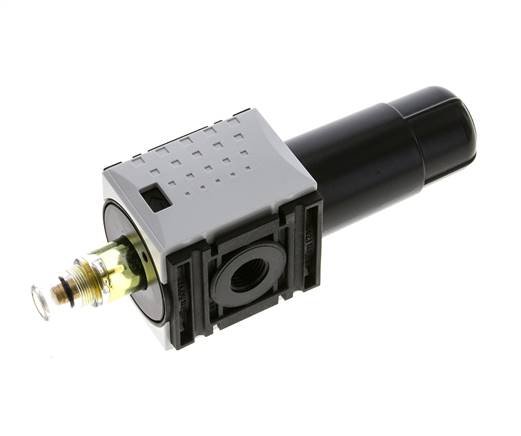

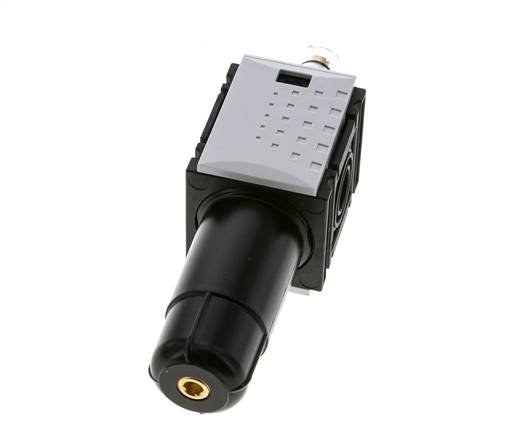

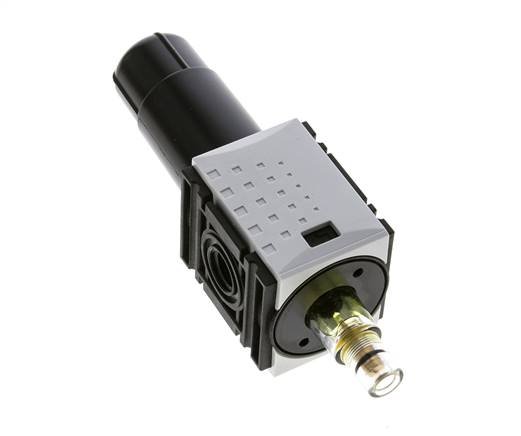

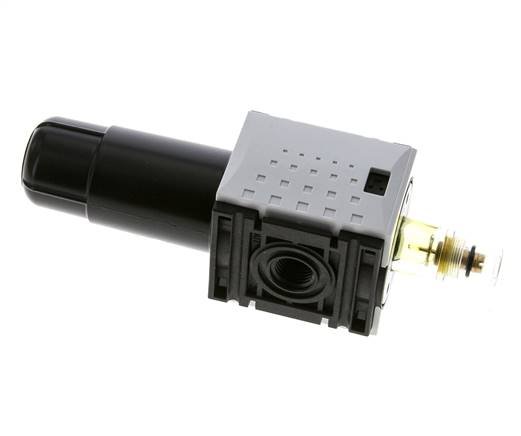

Micro Oil-Fog Lubricator G1/4'' Metal Futura 0
This G 1/4 inch pneumatic lubricator introduces a fine mist of oil into the air to reduce internal friction in components. Suitable for a 12.0 bar (174 psi) max input and temperatures between -10 and 50 °C (14 and 122 °F). The min flow for oil drip is 26 l/min. The oil capacity is 35 cm3.
- Regular price
- £31.54
Description
The lubricator introduces a fine mist of oil into the pneumatic air to reduce internal friction of pneumatic parts. Most modern pneumatic equipment doesn't need lubrication, only use a lubricator if downstream equipment requires it. The recommended lubricating oil type is ISO-VG32 turbine oil. This model has G 1/4 inch ports.

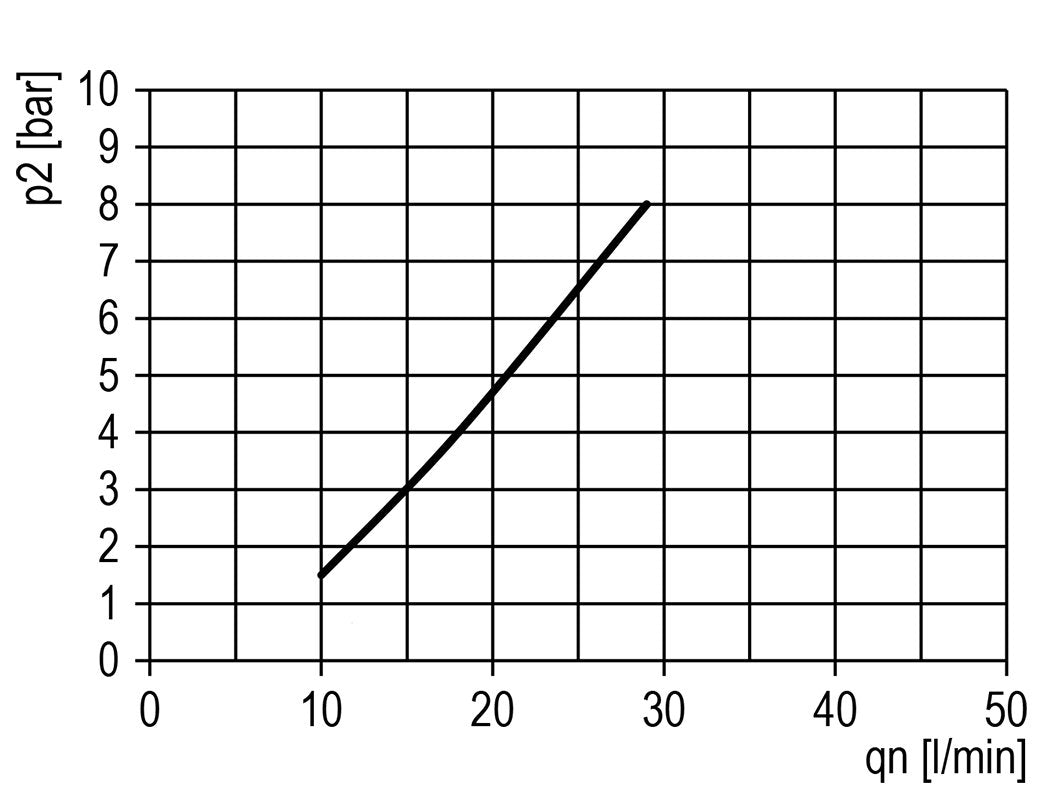

The maximum input pressure is 12.0 bar (174 psi) and the temperature range is between -10 and 50 °C (14 and 122 °F). The lubricator requires a minimal flow rate of 26 l/min and can hold 35 cm3 of oil. The housing material is made out of PA 66 and the lubricator has a bowl made of metal.
Mounting brackets need to be ordered separately.
