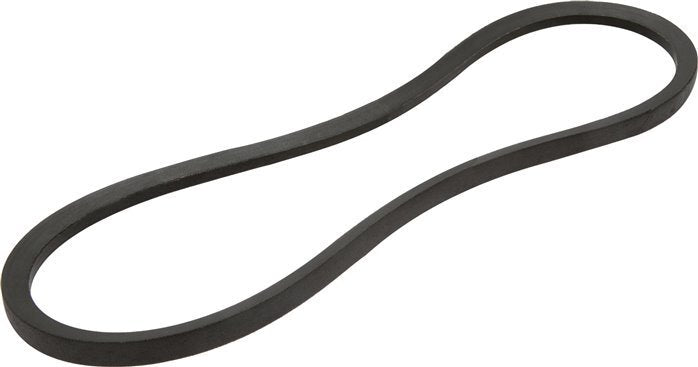

Narrow Metric V-belt SPC 22x18 Li-3267mm Ld-3350mm DIN 7753

Narrow Metric V-belt SPC 22x18 Li-3267mm Ld-3350mm DIN 7753
Narrow Metric V-belt SPC 22x18 Li-3267mm Ld-3350mm DIN 7753
Narrow Metric V-belt SPC 22x18 Li-3267mm Ld-3350mm DIN 7753
Narrow Metric V-belt SPC 22x18 Li-3267mm Ld-3350mm DIN 7753
Narrow Metric V-belt SPC 22x18 Li-3267mm Ld-3350mm DIN 7753
Narrow Metric V-belt SPC 22x18 Li-3267mm Ld-3350mm DIN 7753
Image may vary slightly
See specifications for accurate information.
Reference: W23KU
Brand: Tameson

Single V-belts with metric profiles and metric length measurements are known as metric standard V-belts. These belts are commonly used in industrial settings, such as textile mills, machine applications, and food processing facilities to transfer motion between pulleys with metric profiles.

View all
£88.68
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 6 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

Single V-belts with metric profiles and metric length measurements are known as metric standard V-belts. These belts are commonly used in industrial settings, such as textile mills, machine applications, and food processing facilities to transfer motion between pulleys with metric profiles.

Downloads

Specifications

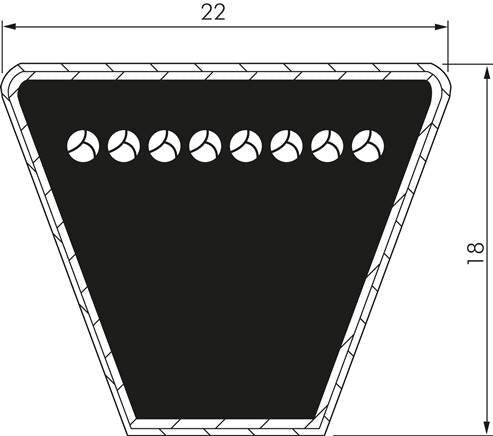

Belt profile type
Specifies the cross-sectional shape and dimensions using codes followed by width x height in mm, indicating compatibility with pulleys and machinery.
SPC 22x18 mm

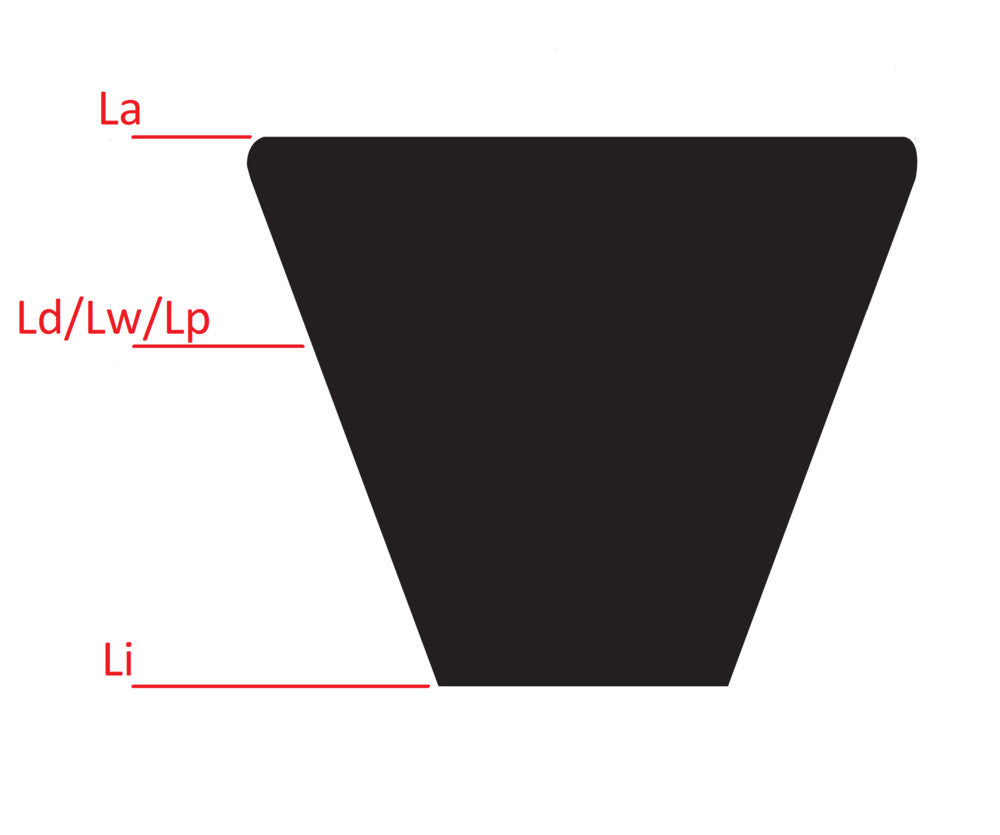

Reference length ISO Ld/Lw/Lp (mm)
The working length for V-belts, ensuring compatibility and accuracy in sizing. Standardized measurement in millimeters according to ISO specifications.
3350
Inner length Li (mm)
The length around the inner surface of the belt, where it makes contact with the pulleys for power transmission.
3267
Width (top) (mm)
The width across the top of the V-belt, aiding in matching with pulley grooves. Wider belts distribute load more effectively.
22
Height (mm)
The measurement of the cross-section of the belt, indicating its thickness. Thicker belts offer increased strength and resilience.
18
Temperature resistance (°C)
The maximum temperature the belt material can withstand without significant degradation or loss of performance, measured in degrees Celsius.
-40 °C to 100 °C
Temperature resistance (°F)
The maximum temperature the belt material can withstand without significant degradation or loss of performance, measured in degrees Fahrenheits.
-40 °F to 212 °F
Max. belt speed (m/s)
The maximum linear speed at which the v-belt can operate safely without experiencing excessive wear or failure.
40
Max. belt speed (ft/s)
The maximum linear speed at which the v-belt can operate safely without experiencing excessive wear or failure.
131
Min. disc diameter (mm)
The minimum diameter of the pulley or sheave around which the belt could operate. This measurement ensures proper belt engagement and performance.
224
Shape-toothed model
Indicates if the belt has teeth/coggs on its surface, typically used for improved grip and efficiency in power transmission systems.
No
Sheathed
Features a protective covering that encases the belt's core material. Provides additional durability and protection against wear, abrasion, and environmental factors.
Yes
Oil resistant
The belt is able to withstand exposure to oil without degrading or losing functionality. Crucial for uses in machinery operating in oil-rich environments.
Yes
