Phoenix Contact QUINT 4 DC Power Supply 24V | 2909576

Phoenix Contact QUINT 4 DC Power Supply 24V | 2909576
Phoenix Contact QUINT 4 DC Power Supply 24V | 2909576
Image may vary slightly
See specifications for accurate information.
Reference: E24W6
Brand: Phoenix Contact
Mfr. Part: 2909576

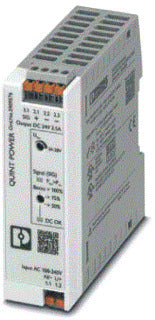

Phoenix Contact QUINT 4 DC power supply unit, (wxdxh), 32x95x106mm; 1st Secondary voltage 24V - 28V; voltage type supply voltage AC/DC; nominal supply voltage AC 50Hz 100 – 240V, maximum.

View all
£94.45
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 5 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

Phoenix Contact QUINT 4 DC power supply unit, (wxdxh), 32x95x106mm; 1st Secondary voltage 24V - 28V; voltage type supply voltage AC/DC; nominal supply voltage AC 50Hz 100 – 240V, maximum.

Downloads

Datasheet (EN)
pdf
Download

Specifications

Voltage type of supply voltage
AC/DC
1st secondary output voltage at DC (V)
24 V to 28 V
2nd secondary output voltage at DC (V)
24 V to 24 V
Max. output current 1 (A)
5
Secondary voltage adjustable
Yes
Nominal value output voltage 1 (V)
24
Nominal value output current 1 (A)
2.5
Rated voltage AC (V)
100 V to 240 V
Rated voltage (AC 60 Hz) (V)
100 V to 240 V
Rated voltage DC (V)
110 V to 250 V
Output voltage stabilized
Yes
Power consumption (VA)
71
Power output (W)
60
Stabilized
Yes
Short-circuit-proof
Yes
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
Suitable for safety functions
Yes
SIL (IEC 61508)
None
Refurbished
No
Modular version
No
Direct mounting possible
No
Wall mounting possible
No
Rail mounting possible
Yes
Performance level (EN ISO 13849-1)
None
Built-in width (mm)
32
Built-in height (mm)
106
