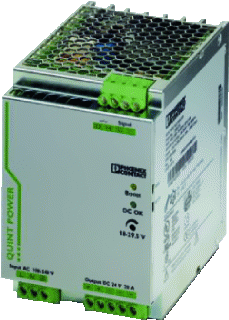

Phoenix Contact QUINT DC Power Supply 24V | 2866776

Phoenix Contact QUINT DC Power Supply 24V | 2866776
Phoenix Contact QUINT DC Power Supply 24V | 2866776
Image may vary slightly
See specifications for accurate information.
Reference: E22NU
Brand: Phoenix Contact

Primary-switched power supply unit for QUINT POWER. Screw connection, DIN rail mounting. SFB Technology (Selective Fuss Breaking). Input = 1-phase. Output = 24 VDC / 20A.

View all
Note: product cannot be returned
£548.16
excl VAT
In stock +1 days On request On request
For a higher quantity than 1 of product E22NU, the lead time of the order will increase by 1 days. The item is not online available in your chosen quantity, there are 2 items available for online order. For higher quantities please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 2 - 4 business days

Customers rate us: 4.8 / 5

435 reviews at Google

Description
Specifications
Downloads
Related products

Description

Primary-switched power supply unit for QUINT POWER. Screw connection, DIN rail mounting. SFB Technology (Selective Fuss Breaking). Input = 1-phase. Output = 24 VDC / 20A.

Downloads

Datasheet (EN)
pdf
Download
Brochure (EN)
pdf
Download
Other Documentation (EN)
pdf
Download

Specifications

Voltage type of supply voltage
AC/DC
1st secondary output voltage at DC (V)
24 V to 29.5 V
2nd secondary output voltage at DC (V)
18 V to 18 V
Max. output current 1 (A)
26
Max. output current 2 (A)
26
Max. output current 3 (A)
120
Secondary voltage adjustable
Yes
Nominal value output voltage 1 (V)
24
Nominal value output current 1 (A)
20
Rated voltage AC (V)
85 V to 240 V
Rated voltage (AC 60 Hz) (V)
100 V to 264 V
Rated voltage DC (V)
90 V to 350 V
Electrical connection
Type of electric connection.
Screw connection
Output voltage stabilized
Yes
Power consumption (VA)
569
Power output (W)
480
Stabilized
Yes
Short-circuit-proof
Yes
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
Suitable for safety functions
Yes
SIL (IEC 61508)
None
Refurbished
No
Modular version
No
Direct mounting possible
No
Wall mounting possible
No
Rail mounting possible
Yes
Performance level (EN ISO 13849-1)
None
Width in number of modular spacings
5
Built-in width (mm)
90
Built-in height (mm)
130
