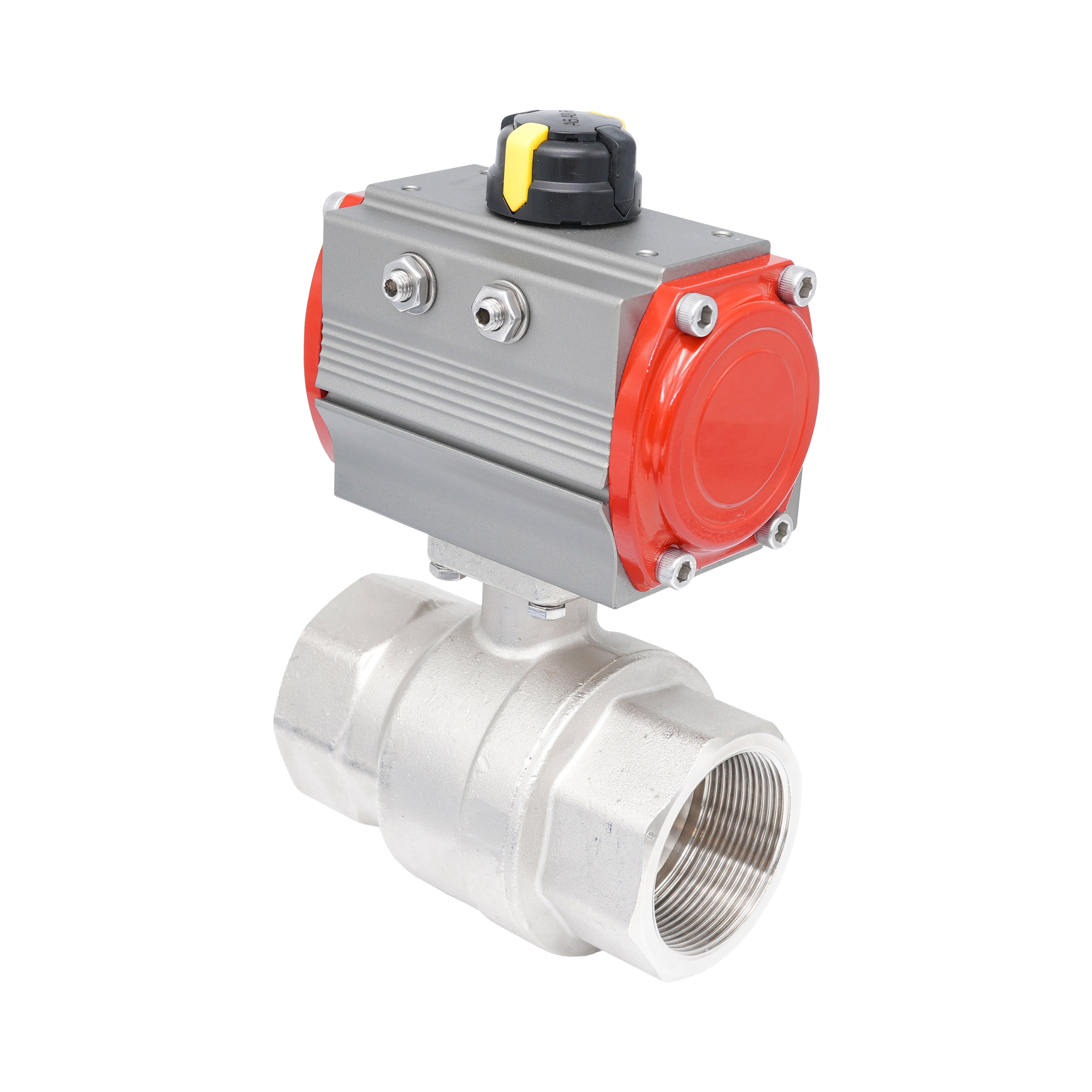

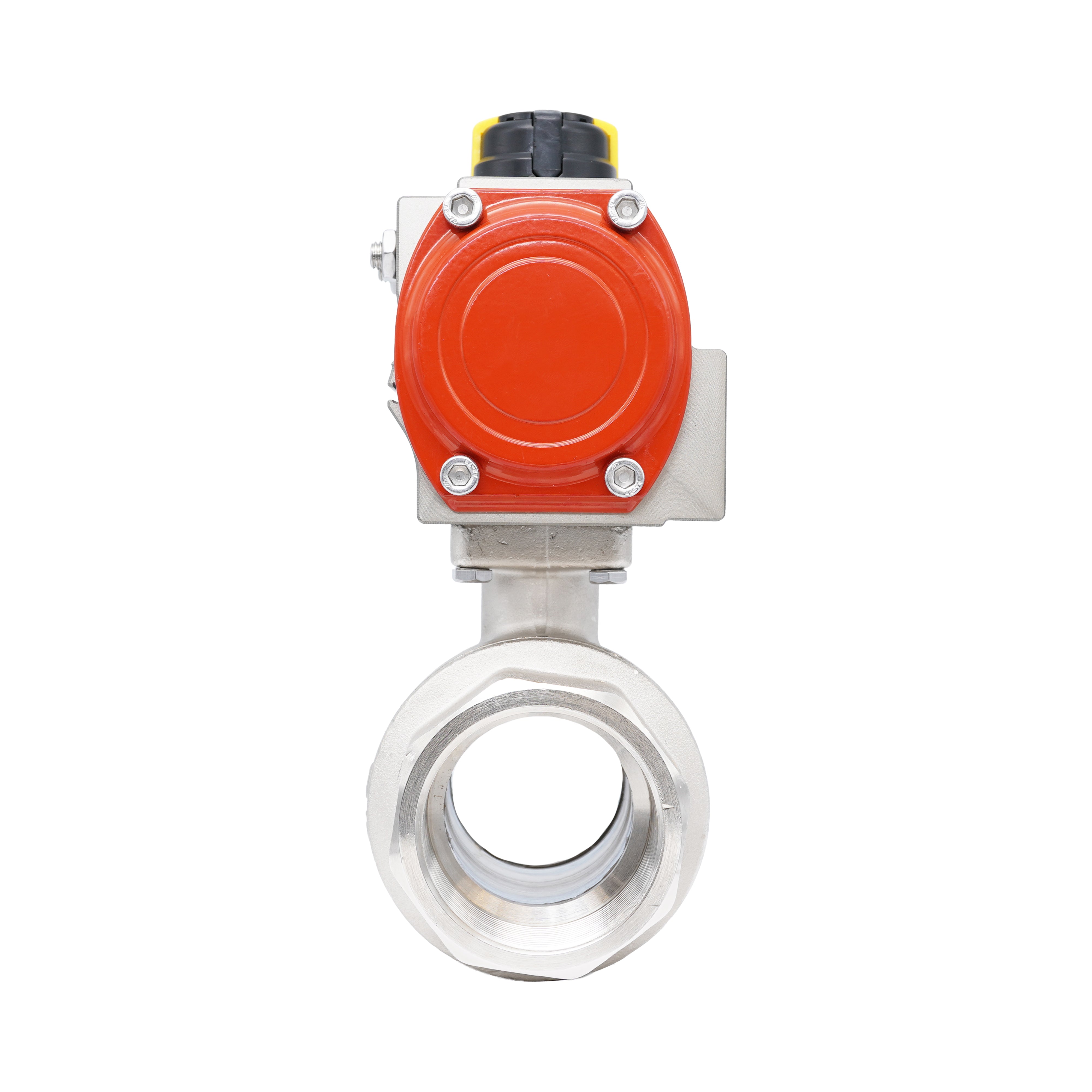

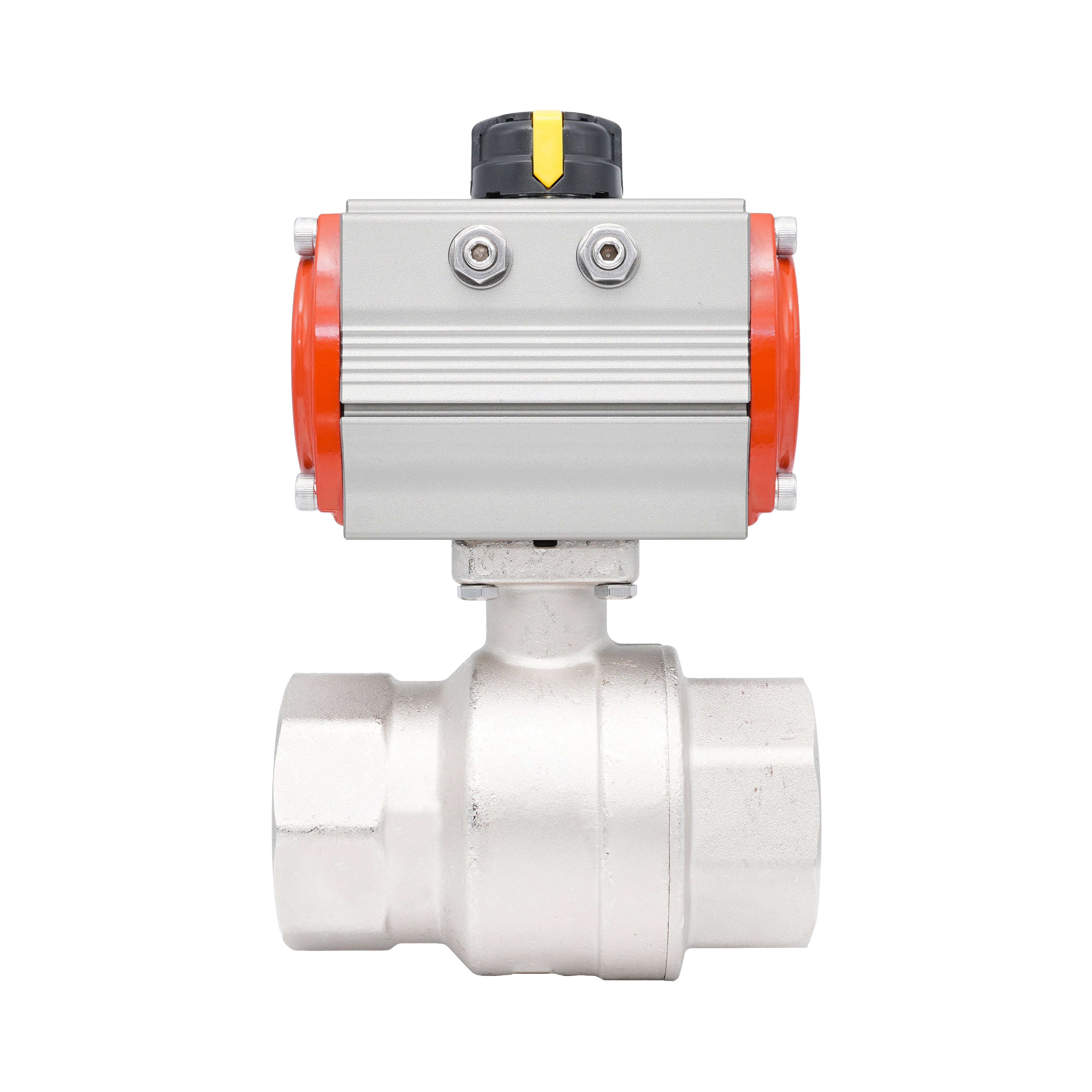

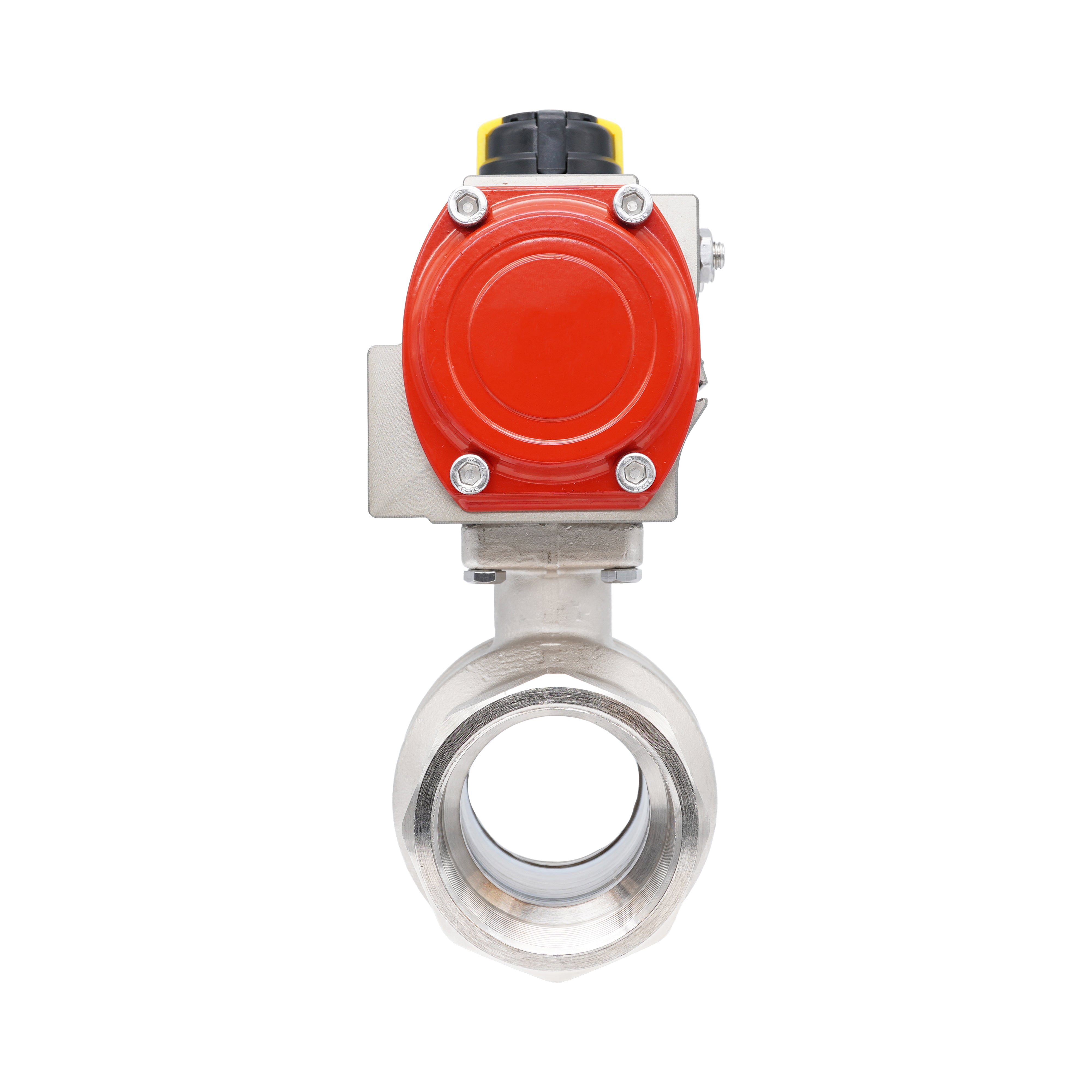

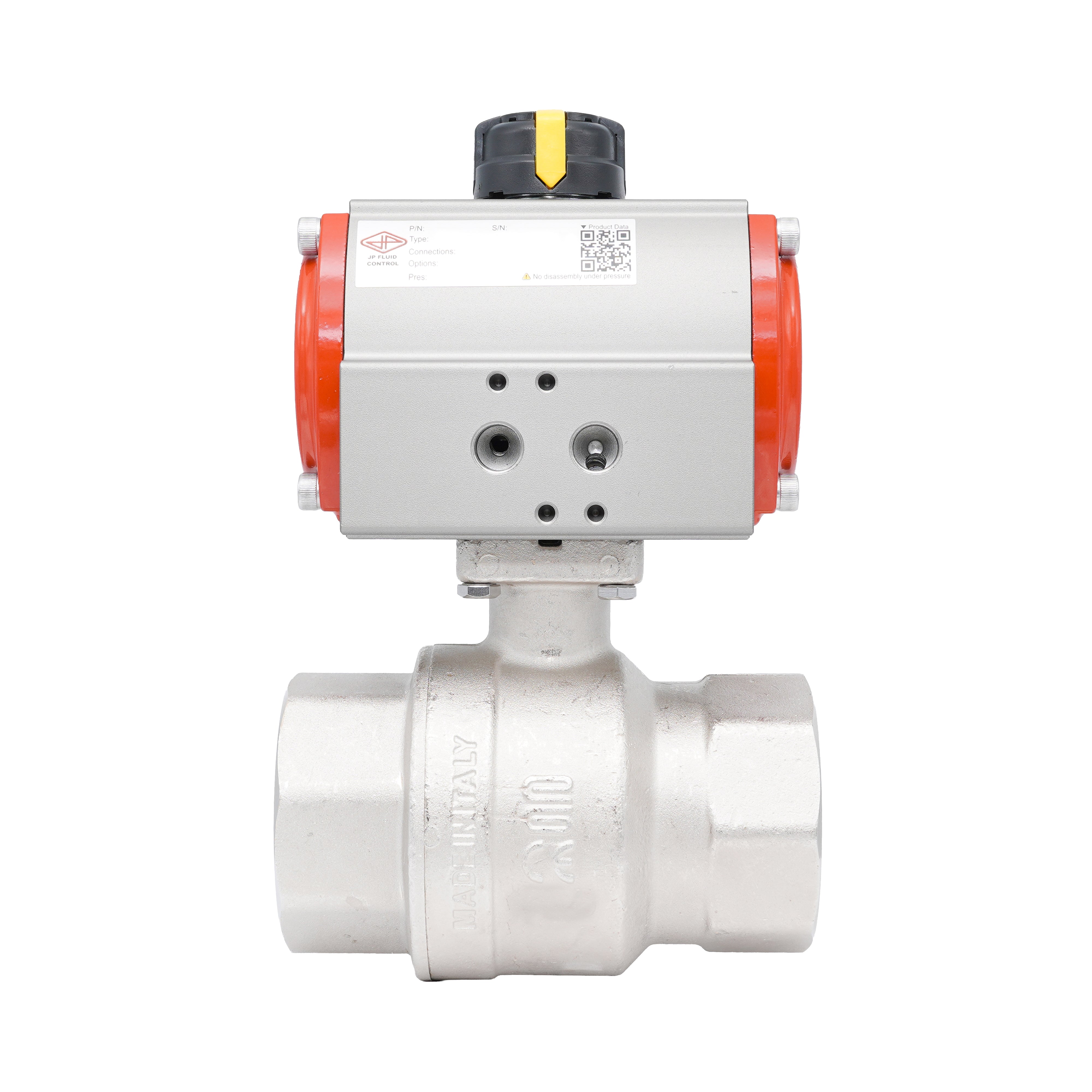

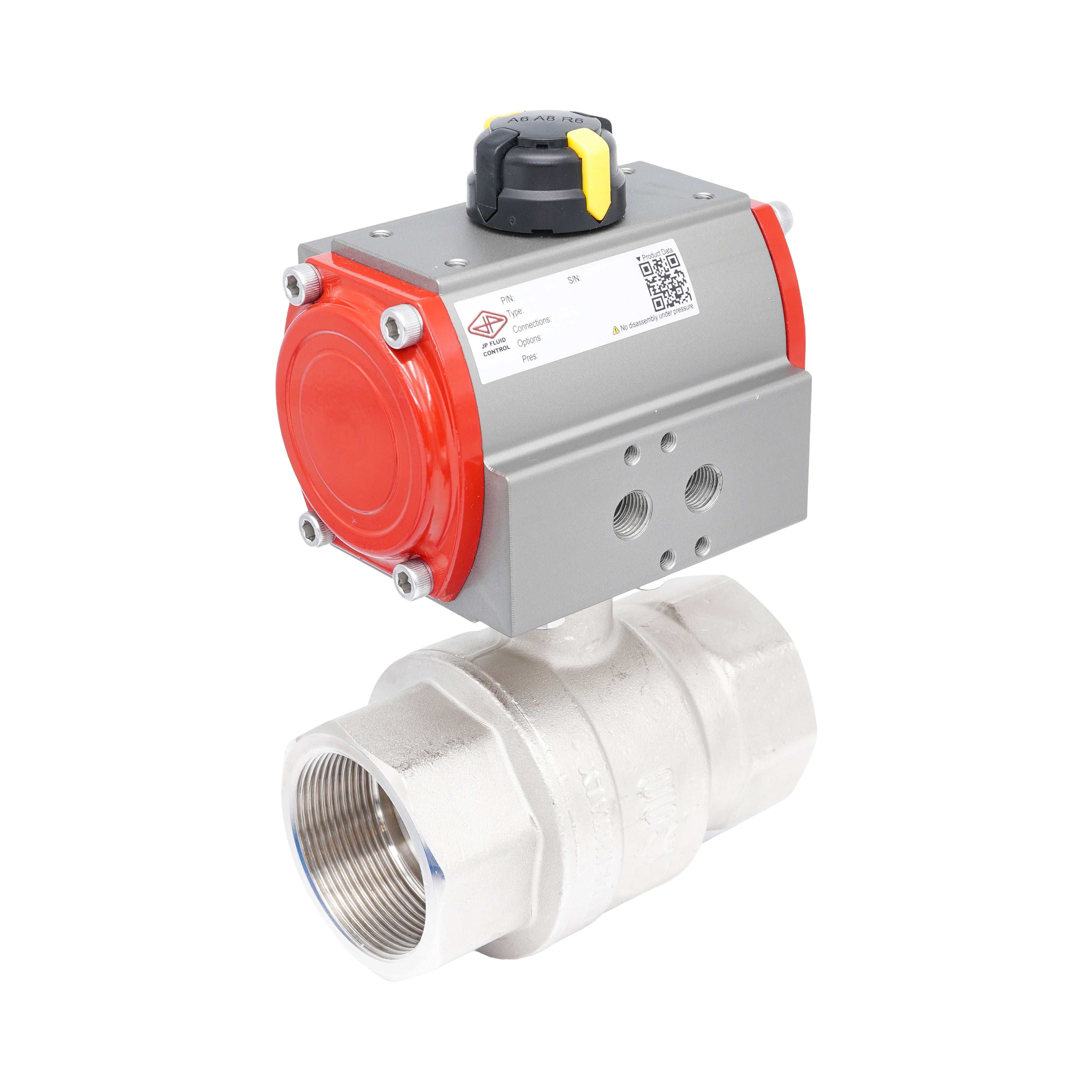

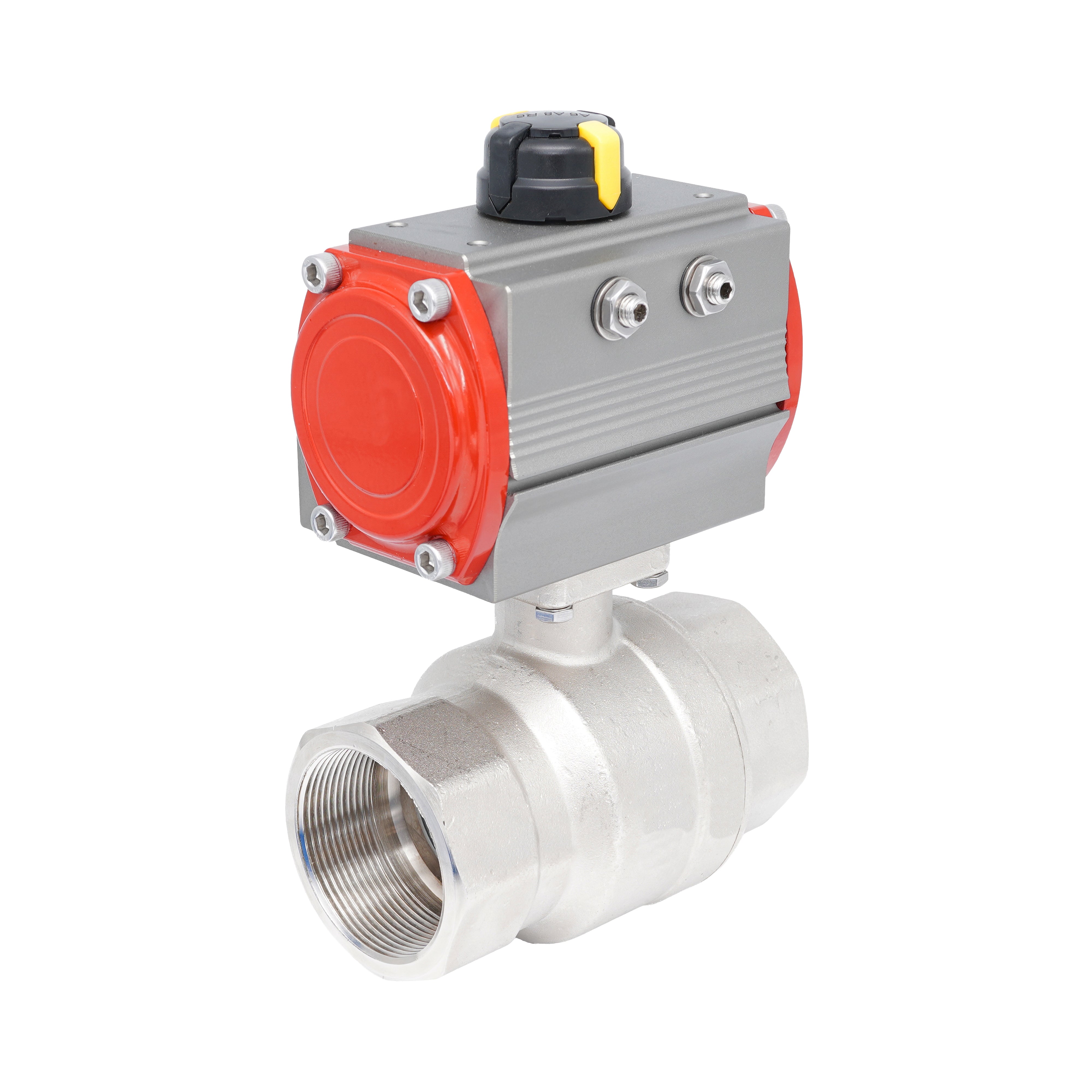

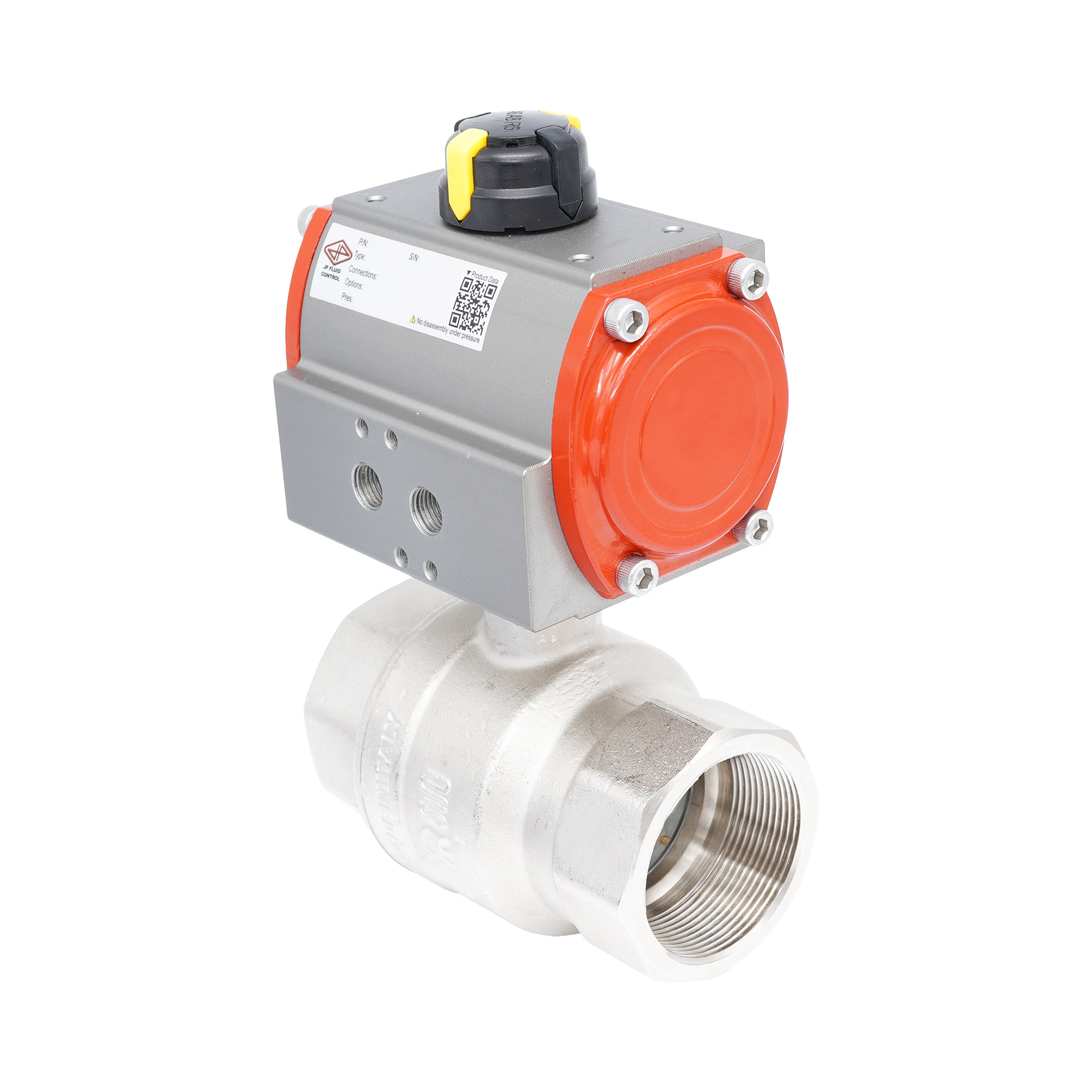

Rp 3" 2-Way Pneumatic Brass Ball Valve - Double Acting
Reference:
V3M4V
Brand:
TamesonPRO
Mfr. Part:
1141-300 | PR80D
Rp 3" BSP female 2-way pneumatic brass ball valve, double acting. PTFE ball seal and EPDM stem seal - suitable for water and compressed air. Rated to 16 bar at 20 °C, media temperature -20 to 130 °C (-4 to 266 °F).
- Regular price
- £599.44
excl VAT
Description
Specifications
Downloads
Related products
Description
This Rp 3" BSP female 2-way double acting pneumatic brass ball valve requires air pressure on both ports to open and close. It holds its last position on loss of air pressure.
The actuator operates across an ambient temperature range of -20 to 80 °C, suited for outdoor and industrial environments. No manual override is fitted - the valve cannot be operated without an air supply.
PTFE ball seal and EPDM stem seal make it suitable for water and compressed air. Rated to 16 bar at 20 °C, media temperature range -20 to 130 °C (-4 to 266 °F).
Pros:
- Ambient temperature -20 to 80 °C - suited for outdoor and industrial environments.
Cons:
- Suitable only for hot, cold water and compressed air.
- No manual override - valve cannot be operated without air supply.
- No defined fail-safe position - valve holds last position on air loss.
