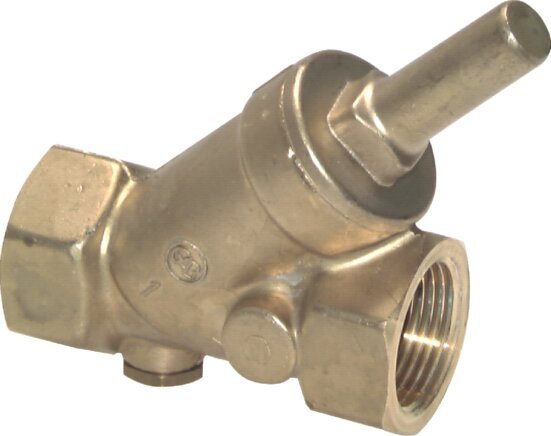

Rp 3/8'' Brass Y Check Valve 16 bar (232 psi) FKM
Female threaded Rp 3/8 inch Y check valve made of brass with an FKM sealing. When the pressure drops below the minimum opening pressure, a spring closes the valve to prevent backflow. This non-return valve can be installed horizontally or vertically. The angle seat design leads to a higher flow rate than a same sized inline valve. The angle seat form is sometimes referred to as 'Y-shaped check valve' or Y check valve. The maximum operating pressure is 16 bar (232 psi). The valve is suitable for operating temperatures between -10 and 90 °C (14 and 194 °F).
- Regular price
- £35.65
Description
Female threaded Rp 3/8 inch Y check valve made of brass with an FKM sealing. When the pressure drops below the minimum opening pressure, a spring closes the valve to prevent backflow. This non-return valve can be installed horizontally or vertically. The angle seat design leads to a higher flow rate than a same sized inline valve. The angle seat form is sometimes referred to as 'Y-shaped check valve' or Y check valve. The maximum operating pressure is 16 bar (232 psi). The valve is suitable for operating temperatures between -10 and 90 °C (14 and 194 °F).
Pros:
- Suitable for temperatures between -10 and 90 °C (14 and 194 °F) thanks to FKM sealing
- Length in accordance to DIN 3202-M8 standard
- Removable plug for easy maintenance
- Lower flow resistance than inline valves
