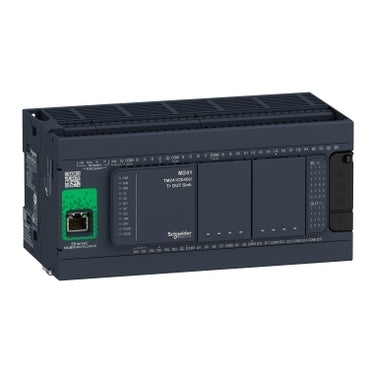

Schneider Electric M2 PLC Base Unit - TM241CE40R
Schneider electric logic controllers - modicon m241 range. The modicon m241 logic controller is for application for controlling of simple motion control machines and offers best-in-class communication with 5 embedded ports. It offers you state of the art technical features and embedded canopen for fieldbus architectures up to 63 devices while reducing your installation time and cost.
- Regular price
- £449.93
Description
This product is a part of the Modicon M241 range, a collection of logic controllers for applications demanding high performance. This logic controller offers 24 discrete, 8 fast inputs, 12 relays, 4 transistors, 4 fast outputs with a transistor, and an ethernet relay output. It has a rated supply voltage of 100V to 240V AC, an output voltage of 5V to 125V DC or 5V to 250V AC for the relay, 24V DC for the transistor, and an output current of 2A for the relay, 0.1A for fast output, and 0.5A for the transistor.
This product is designed to help build applications intuitively as never before thanks to an organized screen design. Integrated connections include a USB port with a mini B USB 2.0 connector, non-isolated serial link 1 with an RJ45 connector and RS232/RS485 interface, and non-isolated serial link 2 with a removable screw terminal block connector and RS485 interface.
The Modicon M241 controller features 8MB for program, 64MB for system memory RAM, and 128MB built-in flash memory for user program backups. It also has an SD card memory capacity of 16GB. The product is rated IP20 and its dimensions are 190mm (Width) x 95mm (Depth) x 90mm (Height). It weighs 0.62kg.
Modicon M241 logic controllers are specifically designed for high-performance compact machines incorporating speed and position control functions. This product has certifications from CE, IACS E10, RCM, CSA, CULus. It complies with ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604, and UL 508 standards. It supports DIN rail mounts. Achieve benchmark performance while increasing profitability with the Modicon M241.
