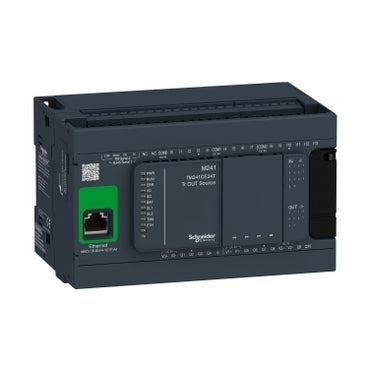

Schneider Electric Modicon PLC Base Unit - TM241CE24T
Schneider electric logic controllers - modicon m241 range. The modicon m241 logic controller is for application for controlling of simple motion control machines and offers best-in-class communication with 5 embedded ports. It offers you state of the art technical features and embedded canopen for fieldbus architectures up to 63 devices while reducing your installation time and cost.
- Regular price
- £386.57
Description
This product is a part of the Modicon M241 range, a selection of logic controllers for performance-demanding applications. The logic controller provides 14 discrete and 8 rapid inputs, 10 transistors, and 4 quick outputs with an ethernet PNP transistor output. The Modicon logic controller has a rated supply/output voltage of 24V DC and an output current of 0.5A for transistor output, and 0.1A for a quick output current with sink or source input logic positive output logic.
The product enables intuitive application building due to its organized screen design. The integrated connections include a USB port with a mini B USB 2.0, a non-isolated serial link 1 with RJ45 and RS232/RS485 interface, a non-isolated serial link 2 with a removable screw terminal block and RS485 interface, and ethernet with RJ45.
It is a Modicon M241 controller with 8MB for program, 64MB for system memory RAM, 128MB built-in flash memory for backup of user programs, and a SD card memory capacity of 16GB. It is rated as an IP20 product. The dimensions are 150mm in width, 95mm in depth, and 90mm in height. It weighs 0.53kg.
The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by:
- CE
- IACS E10
- CSA
- RCM
- CULus
It meets:
- ANSI/ISA 12-12-01
- CSA C22.2 No 142
- CSA C22.2 No 213
- EN/IEC 61131-22007
- marine specification (LR, ABS, DNV, GL)
- UL 1604
- UL 508 standards
It supports DIN rail mount.
With the Modicon M241, achieve benchmark performance while increasing profitability through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications, and function blocks.
