Schneider Electric Sensor/Actor Cable With Connector - XZCPV1164L10
Schneider Electric sensor/actor cable with connector, cable entry position field side straight, cable entry position box side other, cable length 10m, cable jacket black, 5 poles, cable jacket polyvinyl chloride (PVC), nom. (measuring) current In 3A, degree of protection (IP) other, passage resistance 5mOhm.
- Regular price
- £29.26
Description

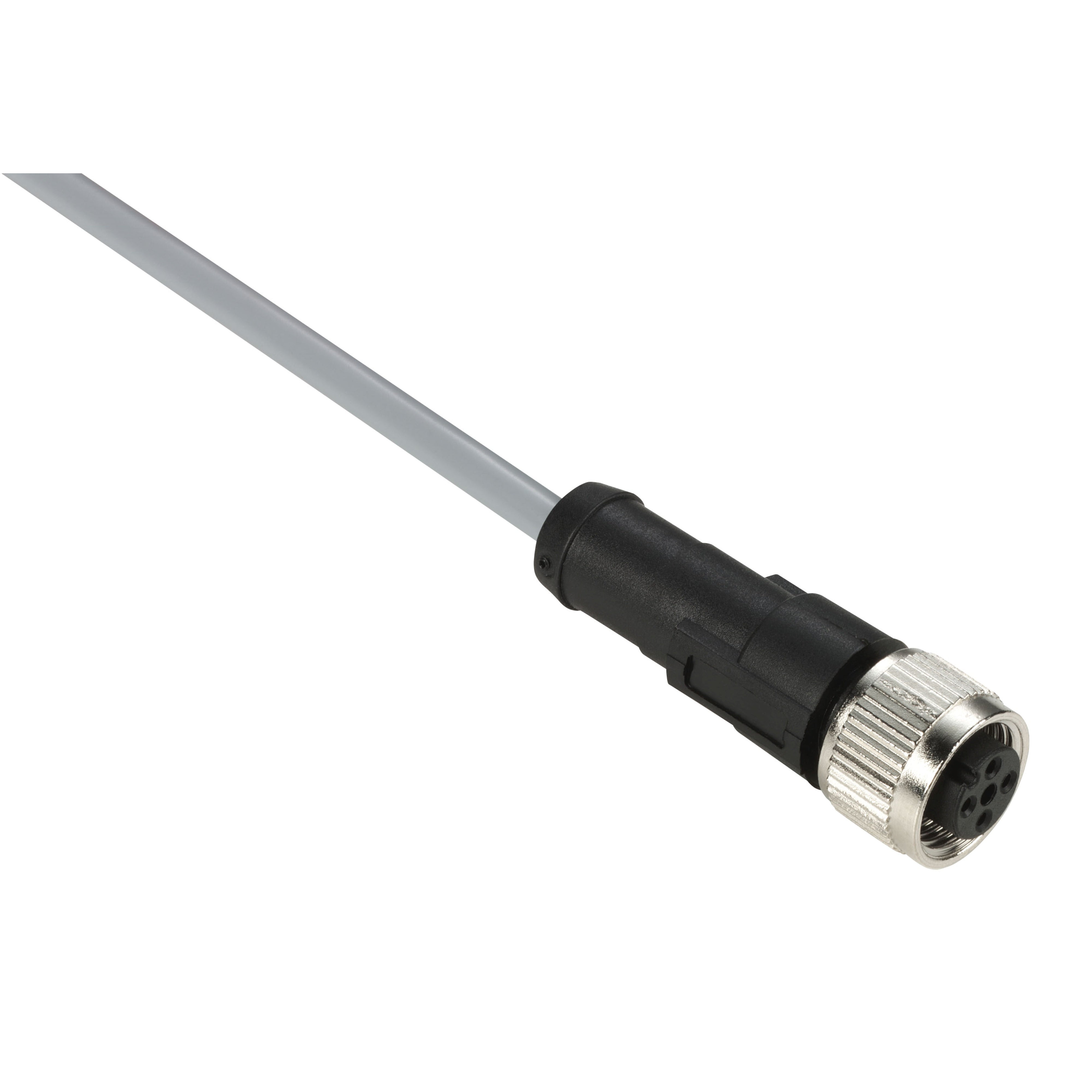

This product belongs to the XZ range, which consists of cordsets and connectors. This cable comprises 5 wires and features a 5-pin M12 straight female connector with a metal collar. It is constructed with polyvinyl chloride for general use. The rated operational voltage is 60V/AC or 75V/DC, and the nominal current is 3A. The contact resistance is 5000 microOhm, and the minimum insulating resistance is 1 GigaOhm.
The cable is dustproof, resistant to water jets (IP65), and can be temporarily submerged in water (IP67). The cable has a length of 10m and a diameter of 4.6mm. It consists of 5 wires, each of which has a section of 0.25 mm². The color of the cable is black and it weighs 0.36kg.
It is intended for general use such as machines with low environmental and mechanical stresses, functioning optimally between -25°C to +80°C if the cable remains static. This cable meets cULus certification standards. It is compatible with a 5-pin M12 male connector.
The XZ range offers a wide variety of cordsets, connectors, and connection boxes designed for a straightforward connection process and swift reference identification.
