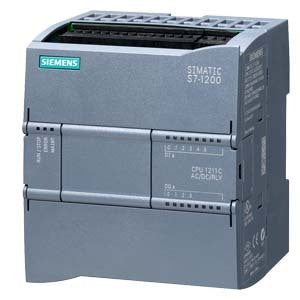

Siemens SIMATIC PLC Base Unit - 6ES72111BE400XB0
Notice: This product will be discontinued in the future
Siemens plc. The siemens plc cpu is compact, versatile and perfectly suited to a wide range of applications. This product is a secure investment. It has a voltage rating of 24vdc with 300ma current. Compact design with 6 integrated digital inputs and 4 relay output of 2a contact current rating. The controller is at the core of our new offering for simple, but highly precise automation tasks. It is an ideal choice when it comes to performing automation tasks for a whole range of applications in the low to mid-performance range with maximum flexibility and efficiency. Expandable with: 1 signal b.
Notice: This product will be discontinued in the future
Description
SIMATIC S7-1200, CPU 1211C, is a compact CPU with AC/DC/relay, onboard I/O which includes 6 DI 24 V DC; 4 DO relay 2A; 2 AI 0-10 V DC. It has a power supply of AC 85-264 V AC at a frequency of 47-63 Hz, and a program/data memory of 50 KB. The SIMATIC S7-1200 Basic Controller is flexible due to its wide variety of communication options. These controllers are the top choice for implementing automation tasks both flexibly and efficiently in the mid to low performance range.
The CPUs are scaled in their performance and are available for different input voltages, either with transistor or relay outputs. Safety versions are also available. In addition to the existing integrated inputs and outputs, the compact CPUs can be directly expanded on the device or with a wide variety of signal and communication modules in order to adapt to your exact requirements. HMI devices can likewise be connected via the integrated Ethernet interface.
The CPU memory can be expanded with a memory card. The PLC is configured using the STEP 7 Basic software in the TIA Portal. The micro PLC has a wide range of networking options via various communication standards by means of integrated functions (such as PROFINET, Modbus, etc.) or add-on modules (such as IO-Link, AS-i, etc.) and thus offers maximum flexibility in the topology and when setting up the networks.
Thanks to its compact design, the application fields for the S7-1200 are very varied, extending from simple packaging machines and heating systems to its use as a subordinate control system in larger plants. Its compact design, modular structure, and integrated IOs help save space in the control cabinet. The STEP7 configuration software is integrated into the TIA Portal and can therefore rely on shared data storage, a uniform operating concept, and integrated communication services for all components of a system. This helps to reduce configuration costs and speeds up commissioning.
