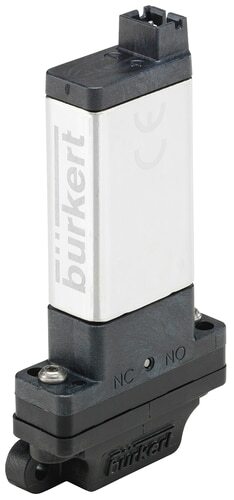

Solenoid Valve 3/2-Way 9 x 26 mm SFB flange PPS FKM -1-2bar/-15-29psi 24VDC Latching 6724 355756
Burkert 3/2 way solenoid valve (type 6724) with 9 x 26 mm SFB flange and a 24 V DC coil. This bi-stable solenoid stays in position after short pulse (>50 ms), switches back with reverse polarity. The valve is direct operating, so no differential pressure required. Suitable for slightly contaminated and aggressive media (media separation). Suitable for max media temperatures of 40 °C (104 °F) and a pressure range of -1 - 2 bar (-15 - 29 psi). Housing of PPS with FKM sealing and a 1.2 mm orifice. The Kv-value is 0.026 m3/h (0.43 l/min at dp = 1 bar water). Latching model.
Note: DIN connector not included.
- Regular price
- £109.30
Description
This is a Burkert direct operating 3/2 way solenoid valve with 9 x 26 mm SFB flange and a 24 V DC coil. The valve has a PPS housing with FKM sealing and an orifice size of 1.2 mm. SFB is a Burkert specific flange design that enables compact mounting of multiple valves on a manifold. This bi-stable solenoid valve is designed to switch positions and stay in that position after a short electrical pulse of at least 50 ms. A pulse with reverse polarity is required to switch back to the original position. As it is direct operating, no pressure differential over the valve is needed to open the valve. Suitable for a pressure of -1 - 2 bar (-15 - 29 psi) and a maximum temperature of 40 °C (104 °F). The valve has a Kv-value of 0.026 m3/h, this translates to a flow rate of 0 l/min at a differential pressure of 1 bar (for water). In imperial units: Cv = 0, which means 0 GPM @ 1 psi pressure drop. For many applications it is enough to select a valve based on the thread size and orifice diameter. For more accurate sizing, use the Kv-value with our easy to use valve sizing calculator. This model is media separated. This means that the working parts such as the spring are separated from the media by a flexible membrane, which makes it possible to use of slightly contaminated and aggressive media. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. The valve requires an electrical pulse to switch between open and closed states rather than a continuous signal, leading to a lower energy consumption. The valve has an IP10 rating if properly connected.
Pros:
- Aggressive media are possible thanks to the media separated design
- Good protection against the environment thanks to the IP10 rating
- This bi-stable valve switches position with a small electrical pulse and consumes very little energy
- Solenoid valves open and close very fast compared to many other valve types
- Compact design with 8.9 mm installation width
- SFB flange design enables compact mounting of multiple valves on a manifold
Cons:
- Solenoid valves are very sensitive to dirt and can only be used with clean liquids and gases
Series:
The Bürkert type 6724 is a solenoid valve designed to meet the specific requirements of fluidic processes in various applications. In fields such as medical devices, printing, and pipetting, solenoid valves need to be small, lightweight, and capable of switching silently. The Whisper Valve Type 6724 is ideal for these applications due to its compact design, high chemical resistance, and almost silent switching (less than 20 dB(A)) with very low power consumption. The valve is highly versatile due to its modular structure and range of available material variants. Additionally, it offers high back-pressure tightness, excellent cleanability, and a 100% duty cycle. This valve is offered in two sizes, DN 0.8 mm (for vacuum pressures up to 5 bar) and 1.2 mm (for vacuum pressures up to 3 bar).
Please note: this product is made to order and can unfortunately not be returned.
