Solenoid Valve 3/2 Mixing G1/4'' Stainless steel PTFE 0-4bar/58psi 24VDC Vacuum 0355 123776

Solenoid Valve 3/2-Way G1/4'' Mixing Stainless steel PTFE 0-4bar/58psi 24VDC Vacuum 0355 123776

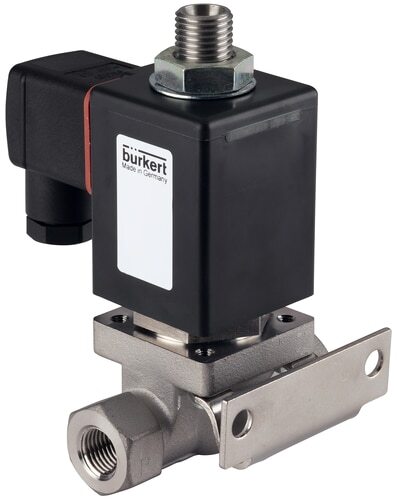

Image may vary slightly
See specifications for accurate information.
Reference: 123776
Brand: Burkert

Burkert 3/2 way solenoid valve (type 0355) with G 1/4 inch threads and a 24 V DC coil. The valve switches between two inlet ports to the outlet port, based on whether the valve is energized or not. The valve is direct operating, so no differential pressure required. Suitable for max media temperatures of 180 °C (356 °F) and a pressure range of 0 - 4 bar (58 psi). Housing of stainless steel with PTFE sealing and a 3 mm orifice. The Kv-value is 0.2 m3/h (3.33 l/min at dp = 1 bar water). Suitable for vacuum.

Note: DIN connector not included.

View all
Note: product cannot be returned
Regular price
£530.80
excl VAT

In stock Ships in 13d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 13 days. Up to 5 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 15 - 17 business days

Description
Specifications
Downloads
Related products

This is a Burkert direct operating 3/2 way solenoid valve with G 1/4 inch threads and a 24 V DC coil. The valve has a stainless steel housing with PTFE sealing and an orifice size of 3 mm. The circuit function of the solenoid valve is mixing. The valve switches between two inlet ports to the outlet port, based on whether the valve is energized or not. As it is direct operating, no pressure differential over the valve is needed to open the valve. Suitable for a pressure of 0 - 4 bar (58 psi) and a maximum temperature of 180 °C (356 °F). The valve has a Kv-value of 0.2 m3/h, this translates to a flow rate of 3 l/min at a differential pressure of 1 bar (for water). In imperial units: Cv = 0, which means 0 GPM @ 1 psi pressure drop. For many applications it is enough to select a valve based on the thread size and orifice diameter. For more accurate sizing, use the Kv-value with our easy to use valve sizing calculator. The stainless steel housing is very durable, strong and resistant to a wide range of chemicals with the exception of chloride solutions. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. Suitable for vacuum applications. The valve has an IP65 rating if properly connected.

Pros:

  • Suitable for media with a high temperature (> 180 °C (356 °F)
  • Suitable for vacuum applications
  • Good protection against the environment thanks to the IP65 rating
  • Solenoid valves open and close very fast compared to many other valve types

Cons:

  • Solenoid valves are very sensitive to dirt and can only be used with clean liquids and gases
  • The coil may get hot when energized. A well ventilated environment is recommended

Series:

The Bürkert type 0355 plunger solenoid valve is designed to regulate hot media, such as steam, oil, and gas. This 3/2-way seat valve operates directly and features a push-over coil system. Some versions within the 0355 series are suited for temperatures up to 180 °C.

Please note: this product is made to order and can unfortunately not be returned.
