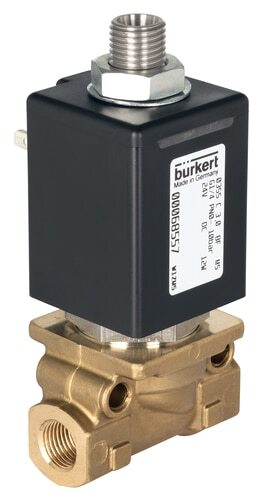

Solenoid Valve 3/2 NC G1/4'' Brass PEEK 0-70bar/1015psi 230VAC Vacuum 0355 231858
Burkert 3/2 way solenoid valve (type 0355) with G 1/4 inch threads and a 230 V AC coil. The circuit function of the solenoid valve is normally closed (voltage = open). The valve is direct operating, so no differential pressure required. Suitable for max media temperatures of 180 °C (356 °F) and a pressure range of 0 - 70 bar (1015 psi). Housing of brass with PEEK sealing and a 1 mm orifice. The Kv-value is 0.03 m3/h (0.5 l/min at dp = 1 bar water). Suitable for vacuum.
Note: DIN connector not included.
- Regular price
- £197.77
Description
This is a Burkert direct operating 3/2 way solenoid valve with G 1/4 inch threads and a 230 V AC coil. The valve has a brass housing with PEEK sealing and an orifice size of 1 mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. When the valve is closed, the output port connects to a third exhaust port. As it is direct operating, no pressure differential over the valve is needed to open the valve. Suitable for a pressure of 0 - 70 bar (1015 psi) and a maximum temperature of 180 °C (356 °F). The valve has a Kv-value of 0.03 m3/h, this translates to a flow rate of 1 l/min at a differential pressure of 1 bar (for water). In imperial units: Cv = 0, which means 0 GPM @ 1 psi pressure drop. For many applications it is enough to select a valve based on the thread size and orifice diameter. For more accurate sizing, use the Kv-value with our easy to use valve sizing calculator. The brass housing is durable, suitable for neutral fluids and resistant to many chemicals. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. Suitable for vacuum applications. The valve has an IP65 rating if properly connected.
Pros:
- Suitable for media with a high temperature (> 180 °C (356 °F)
- Suitable for vacuum applications
- Good protection against the environment thanks to the IP65 rating
- Solenoid valves open and close very fast compared to many other valve types
Cons:
- Solenoid valves are very sensitive to dirt and can only be used with clean liquids and gases
- The coil may get hot when energized. A well ventilated environment is recommended
Series:
The Bürkert type 0355 plunger solenoid valve is designed to regulate hot media, such as steam, oil, and gas. This 3/2-way seat valve operates directly and features a push-over coil system. Some versions within the 0355 series are suited for temperatures up to 180 °C.
Please note: this product is made to order and can unfortunately not be returned.
